Power-Button Board; Removing The Power Button - Dell Inspiron 15 3520 Service Manual

Steps

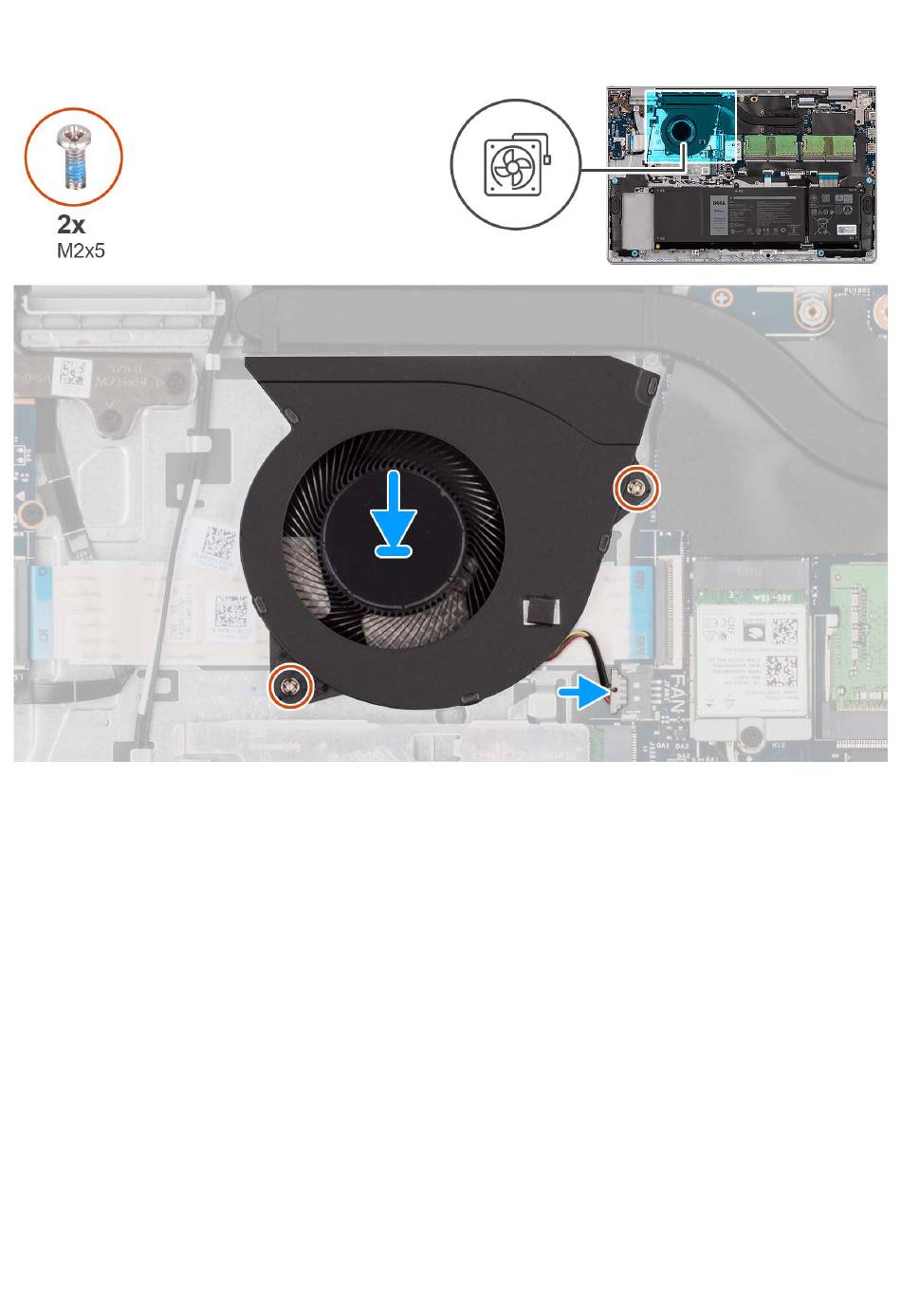

1. Place the fan on the palm-rest and keyboard assembly.
2. Align the screw holes on the fan to the screw holes on the palm-rest and keyboard assembly.
3. Replace the two (M2x5) screws that secure the fan to the palm-rest and keyboard assembly.
4. Connect the fan cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in

Power-button board

Removing the power button

Prerequisites
1. Follow the procedure in
2. Remove the SD card.
After working inside your
Before working inside your
computer.
computer.
Removing and installing components 49
