Speakers

Removing the speakers

Prerequisites
1. Follow the procedure in
2. Remove the SD card.
3. Remove the base cover.
About this task

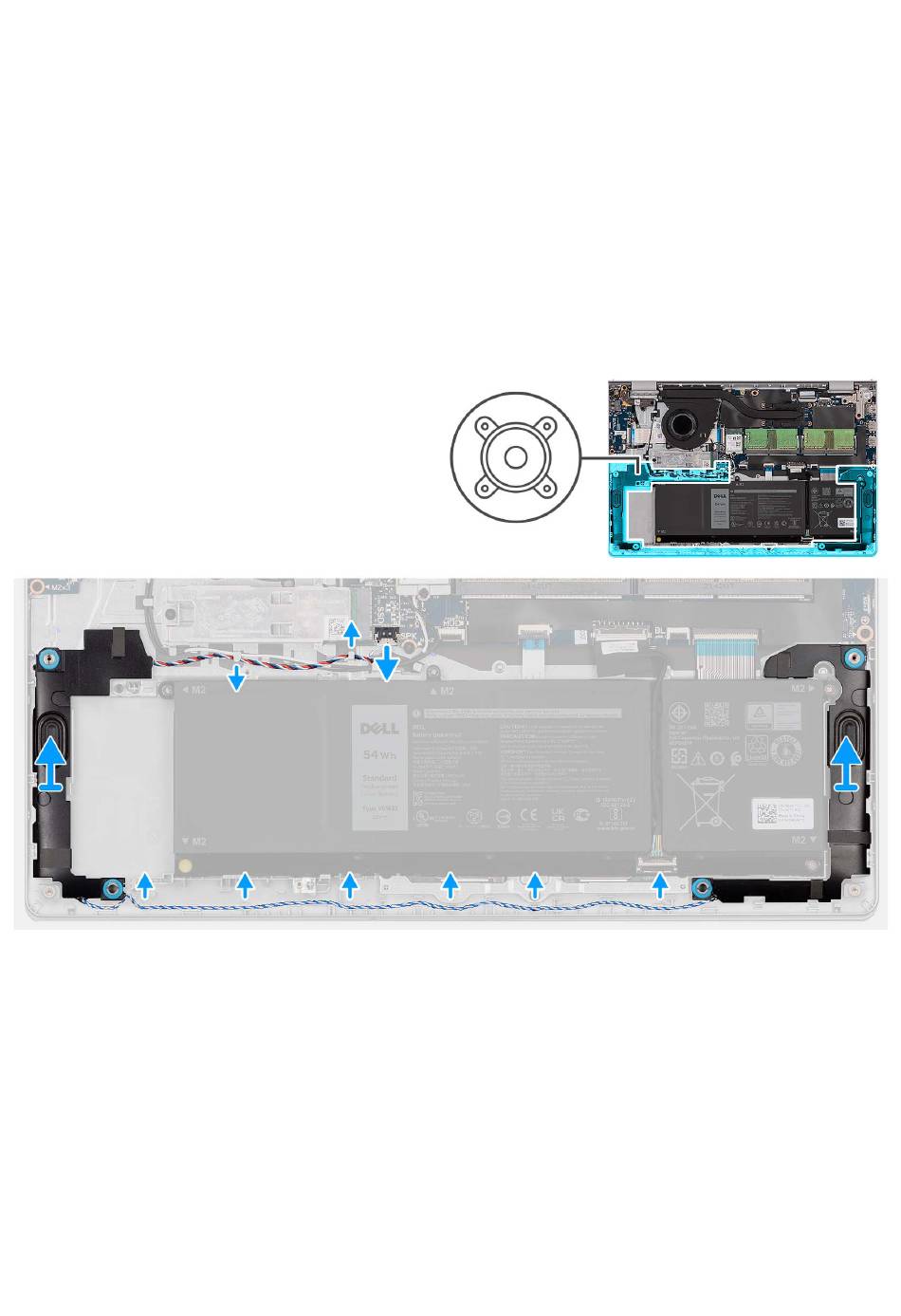

The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the system board.
2. Unroute the speaker cable from the routing guides on the palm-rest and keyboard assembly.
3. Lift the speakers along with its cable from the palm-rest and keyboard assembly.

Installing the speakers

Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
44 Removing and installing components
Before working inside your computer.
