About this task

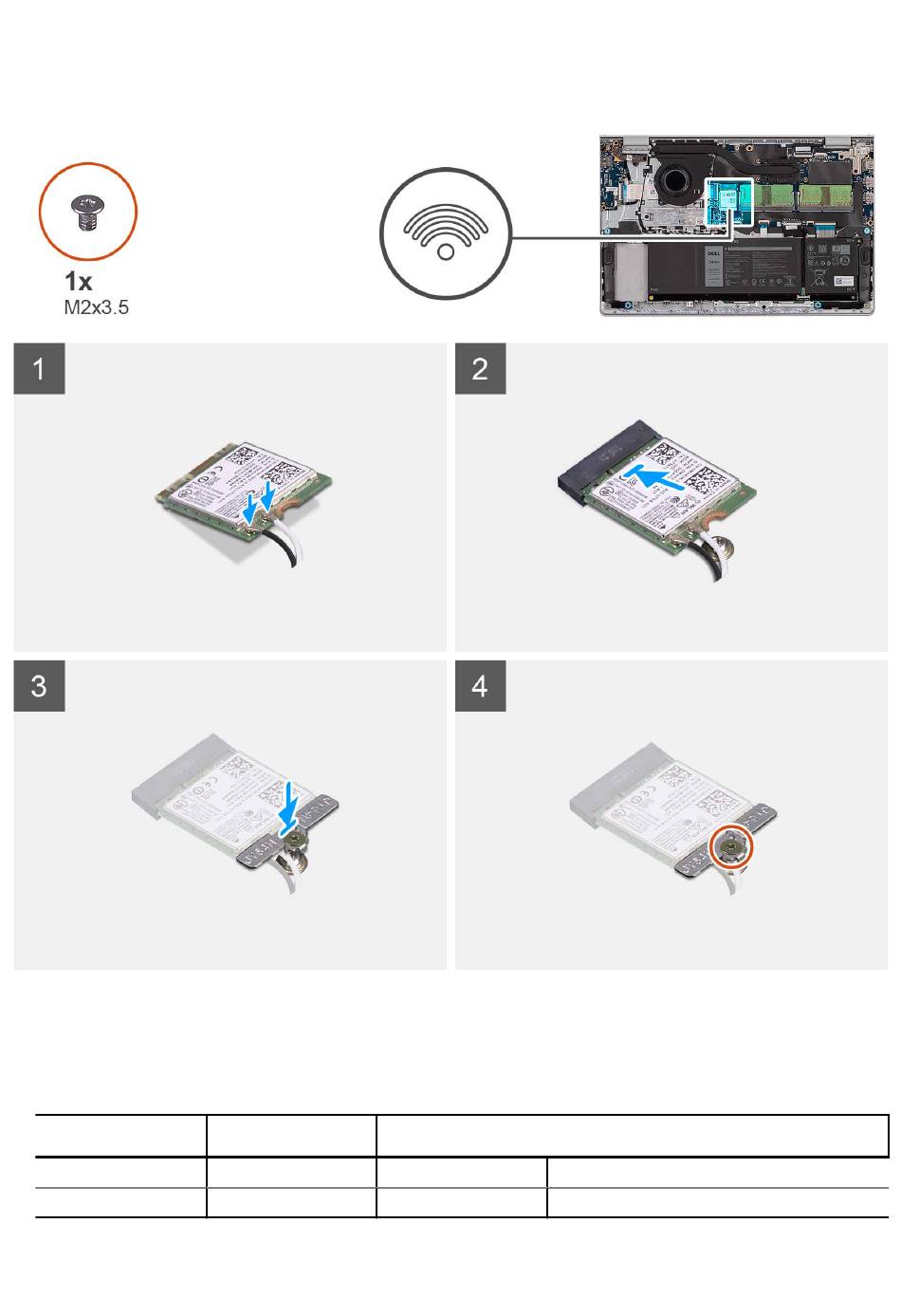

The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.
Steps
1. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 2. Antenna-cable color scheme
Connectors on the
wireless card
Main
Auxiliary
Antenna-cable color
White
Black
Silkscreen marking
MAIN
AUX
△ (white triangle)
▲ (black triangle)
Removing and installing components
33
