Structure and function of the operating menu

7.1.1 Display
1
1.1
1.2
5
User

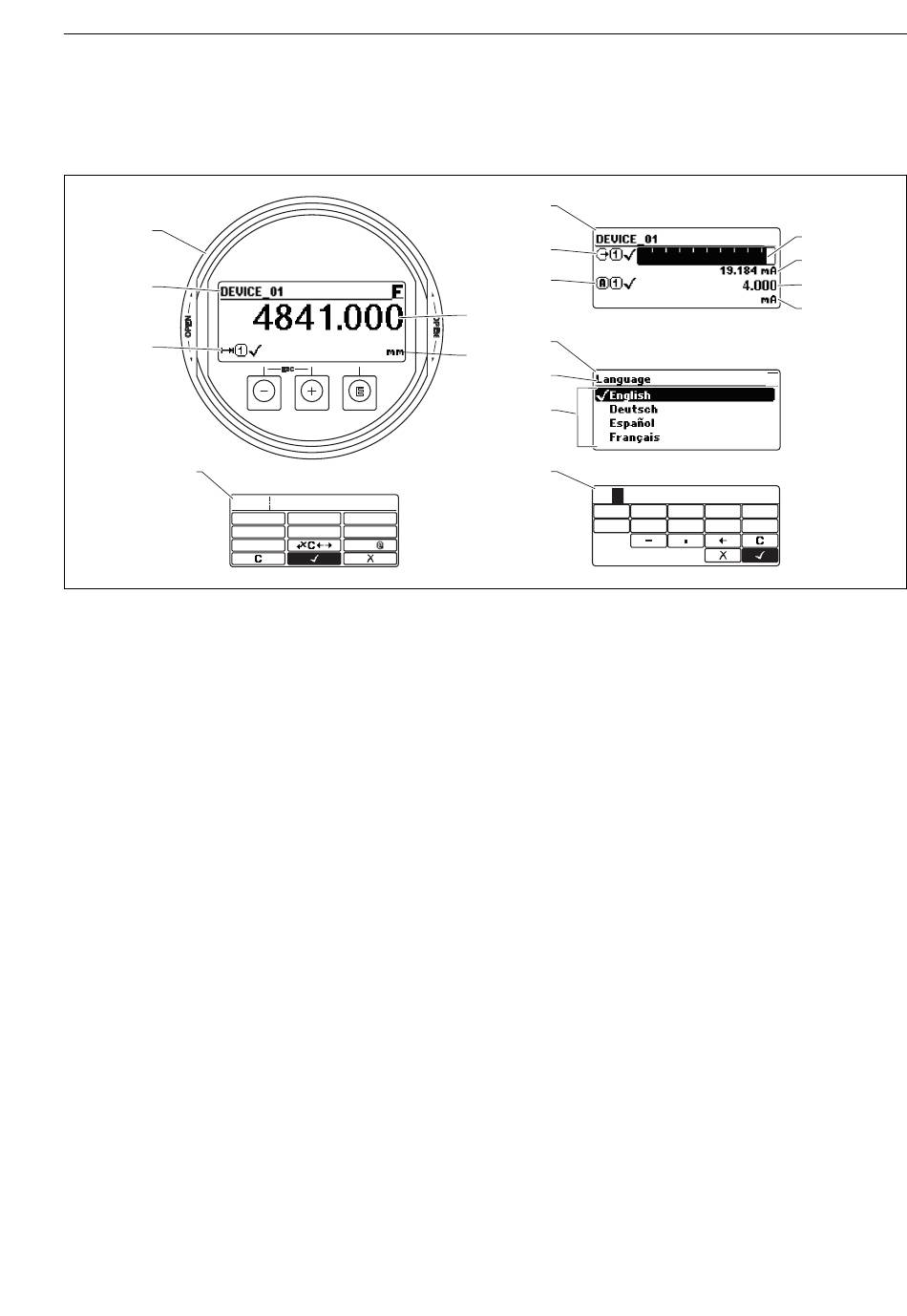

 7 Display format on the display and operating module
1 Measured value display (1 value max. size)
1.1 Header containing tag and error symbol (if an error is active)
1.2 Measured value symbols
1.3 Measured value
1.4 Unit
2 Measured value display (bar graph + 1 value)
2.1 Bar graph for measured value 1
2.2 Measured value 1 (including unit)
2.3 Measured value symbols for measured value 1
2.4 Measured value 2
2.5 Unit for measured value 2
2.6 Measured value symbols for measured value 2
3 Visualization of a parameter (here: parameter with picklist)
3.1 Header containing parameter name and error symbol (if an error is active)
3.2 Picklist;  marks the current parameter value.
4 Input matrix for numbers
5 Input matrix for alphanumeric and special characters
Endress+Hauser
ESC
E
ABC_ DEFG HIJK
LMNO PQRS TUVW
XYZ Aa1
2
2.3
2.6
1.3
3
1.4
3.1
3.2
4
20
0
5
Operation options
2.1
2.2
2.4
2.5
1 2 3 4
6 7 8 9
A0012635
