Summary of Contents for iBell CM35-24

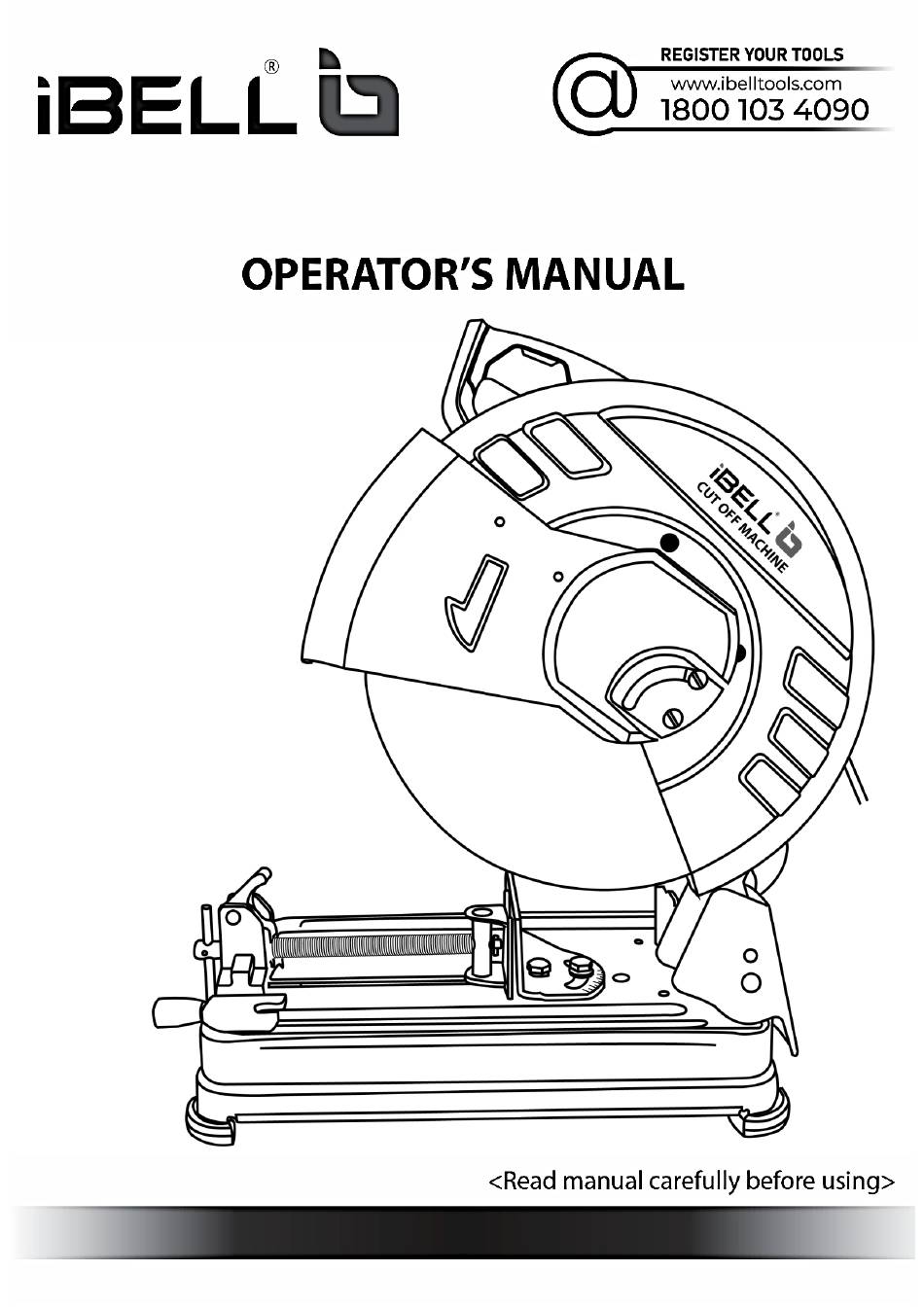

- Page 1 CUT-OFF MACHINE CM35-24...
-
Page 3: Table Of Contents
1. GENERAL POWER TOOL SAFETY WARNINGS __________ 2. CUT-OFF MACHINE SAFETY WARNINGS _______________ 3. INTENDED USE AND FEATURES _______________________ 4. PRODUCT SPECIFICATIONS ___________________________ 5. PRODUCT OVERVIEW _________________________________ 6. PRODUCT FUNCTIONS AND ASSEMBLY________________ 7. GENERAL OPERATION ________________________________ 8. TROUBLESHOOTING___________________________________ IBL CM35-24... -
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL CM35-24... - Page 5 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL CM35-24...
- Page 6 Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL CM35-24...
-
Page 7: Cut-Off Machine Safety Warnings
Wear ear protectors. Exposure to noise can cause hearing loss. Wear safety goggles or eye protection when using this power tool. For additional protection against electric shock, be sure to wear rubber gloves. IBL CM35-24... - Page 8 Always wait until the power tool has come to a complete stop before making any adjustments. Do not stop the cutting wheel by lateral pressure on the disc. Misuse or failure to follow the safety rules stated in WARNING! this instruction manual may cause serious personal injury. IBL CM35-24...
-
Page 9: Intended Use And Features
: Square pipe - 100x100 | 90x90mm : Rectangle - 100x120 | 75x100mm As accessories, you will get a cutting blade/abrasive disc attached with the product and a wrench (spanner) Only use cutting discs with 355 x 25.4 x 3 mm dimension. IBL CM35-24... -
Page 10: Product Overview
The product must be fully assembled before WARNING! operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! IBL CM35-24... - Page 11 4. Abrasive disc/ blade (Accessory) 12. Adjustable depth stop 5. Lock-release lever (vice) 13. Shaft lock clamp 6. Vice handle 14. Fence (with angle adjustment) 7. Adjustable stationary vice 15. Fence bolts 8. Heavy duty base 16. Spanner (Accessory) IBL CM35-24...
-
Page 12: Product Functions And Assembly
For mounting the same or with a replaced one, obviously follow the above step backwards; as simple as that. Two sided spanner suitable for every nut-bolt used in the machine. Tightening and loosening Spindle is based on the direction Lock of rotation marked. (11) IBL CM35-24... - Page 13 Pull the clamp outward and guide the tool arm slowly upward. Working Transport Position Position Always adjust the depth stop (12) so that the cutting disc does NOTE: not touch the base plate when sawing. IBL CM35-24...
- Page 14 To deflect sparks away from surrounding persons and materials, adjust the spark deflector (3), which is a movable guard associated with the stationary guard (2). Operating the tool will cause many sparks to fly around, position this guard at a position where minimum sparks fly around. IBL CM35-24...
- Page 15 To tighten, Lift up the quick lock-release lever. Push the vice handle forward to slide the vice against the work piece. Push down the release lever to engage its threads with vice spindle. IBL CM35-24...
- Page 16 To reduce the risk of injury, turn unit off and WARNING! disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. IBL CM35-24...
-
Page 17: General Operation
Do not touch the cut material until it cools or you will be burned. Always switch the product off, disconnect the product from the NOTE: power supply and let the product cool down before performing inspection, maintenance and cleaning work! IBL CM35-24... - Page 18 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. IBL CM35-24...
- Page 19 Only use accessory or attachment for its stated purpose. This product does not contain any parts that can be repaired NOTE: by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. IBL CM35-24...
-
Page 20: Troubleshooting
4. Machine 4.2 Disc/Blade is overheating being fed into 4.2 Feed blade into the work too fast. work slower. All further inspection and repair work must be WARNING! performed by an authorised service centre or a qualified technician! IBL CM35-24... - Page 21 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
