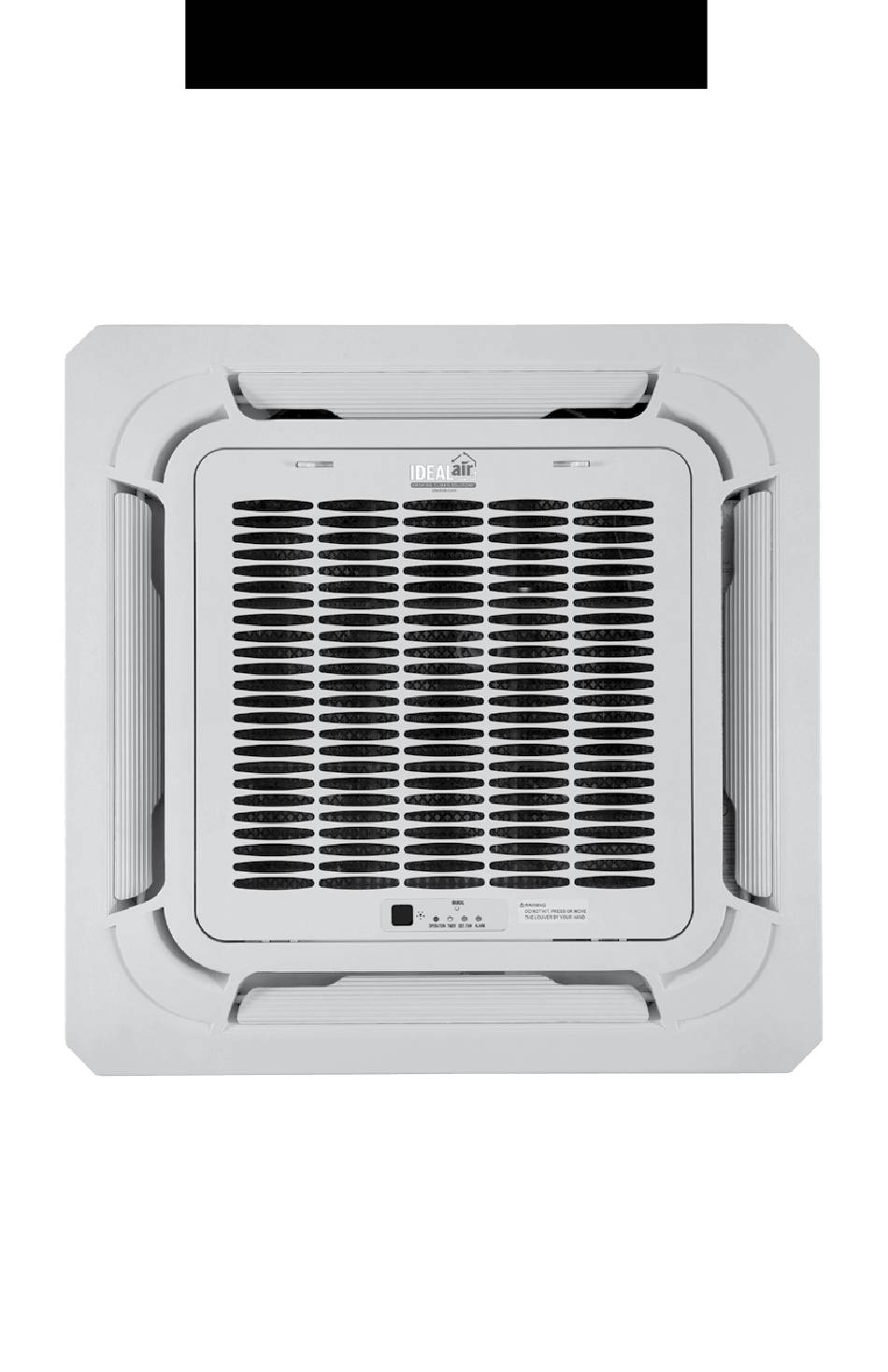

I N D O O R | C E I L I N G M O U N T
PRO | DUAL MINI-SPLIT
SPLIT-TYPE FOUR-WAY CASSETTE TYPE
ROOM AIR CONDITIONER
#700026 • #700027 • #700028 • #700029
USER MANUAL
Inside you will find helpful hints on how to use and maintain your air conditioner properly.
Just a little preventative care on your part can save you a great deal of time and money over the life
of your air conditioner. Before operating this product, please read the instructions carefully and
save this manual for future use.
Advertisement
Table of Contents
Related Manuals for Ideal Air 700026
Summary of Contents for Ideal Air 700026
- Page 1 PRO | DUAL MINI-SPLIT SPLIT-TYPE FOUR-WAY CASSETTE TYPE ROOM AIR CONDITIONER #700026 • #700027 • #700028 • #700029 USER MANUAL Inside you will find helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner.
-
Page 2: Table Of Contents
CONGRATULATIONS... on your purchase of Ideal Air’s Pro | Dual Mini-Split, indoor unit. We’re proud to offer this product and believe it’s the very best in its class. READ THIS MANUAL Please read through these instructions before you start the installation process. Improper installation can cause damage to the unit, your personal property, and also poses a personal safety hazard. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION: Incorrect operation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring This symbol indicates that ignoring instructions may cause damage to instructions may cause moderate your unit, or other property, serious... - Page 4 FOUR-WAY CASSETTE (SLIM) TYPE FUNC Control board 10 10 Manual Indoor Unit OPERATION TIMER DEF./FAN. ALARM OPERATION TIMER DEF./FAN. ALARM 12 13 14 15 NOTE: These three indication lamps flash in cycles when solar PV ECO function is activated. (Applicable to the unit adopts solar photovoltaic system only.) Inlet Outlet...
-
Page 5: Manual Operation
MANUAL OPERATION CEILING AND FLOOR This function is used to operate the unit temporarily in case you misplace the remote control or its batteries are exhausted. Two modes including AUTO and FORCED COOL can be selected through the TEMPORARY BUTTON on the air-in grill control box of the indoor unit. Once you push this button, the air conditioner will run in such order: AUTO, FORCED COOL, OFF, and back to AUTO. -
Page 6: Maintenance
DUCT AND CEILING TYPE The following is how to adjust air flow direction when air outlet part (sold separately) is used with the indoor unit. COOLING HEATING To effectively cool To effectively heat the the whole room, bottom of the room, please set the Please set the louver louver so that the... - Page 7 CASSETTE TYPE 1 Open the air-in grill: Push the grill switches towards the middle simultaneously as indicated in sketch A. Then pull down the air-in grill. CAUTION The control box cables, which are originally connected with the main body electrical terminators must be pulled off before doing as indicated above.
-
Page 8: Air Conditioner Operations And Performance
a) The air-in side should face up when using vacuum cleaner (See FIG. 1). b) The air-in side should face down when using water (See FIG. 2). CAUTION DO NOT dry out the air filter under direct sunshine or with fire. 5 Re-install the air filter. -
Page 9: Installation
SPECIAL FUNCTIONS: REFRIGERANT LEAKAGE DETECTION (OPTIONAL): With this new technology, the display area will appear EC (if applicable) and the LED indication lamps continue flashing when the outdoor unit detects refrigerant leakage. SPECIAL FUNCTIONS: LOUVER ANGLE MEMORY FUNCTION (OPTIONAL): For some models, the machine is specially designed with louver angle memory function. Power failure during operation or pressing the ON/OFF button on the remote control will stop the unit completely. -
Page 10: Troubles And Causes (Concerning Remote Control)
CAUTION If any of the following conditions occur, stop the air conditioner immediately, cut all power to the system, and contact a service technician: • The indicator lamps flash rapidly (five times per second), you disconnect the unit with the power and then connect the unit with the power again after two or three minutes but the lamps still flash. -
Page 11: Match Up Chart
THE FOLLOWING DISPLAYS INDICATE AN ERROR OR PROBLEM: timer lamp running lamp (flashes per second) Display (nixie tube) Malfunction Indoor EEPROM error Communication malfunction between indoor and outdoor units Indoor fan speed malfunction Indoor room temperature sensor open circuit or short circuit Evaporator coil temperature sensor open circuit or short circuit Refrigerant leakage detection... - Page 12 IMPORTANT Product not working properly? DO NOT return this product to the store where you purchased it. Contact Ideal-Air support directly at support@ideal-air.com or call 1-877-943-3251 For answers to most common questions and a complete technical support library please visit www.ideal-air.com All design and specifications herein are subject to change without notice for product improvement.
