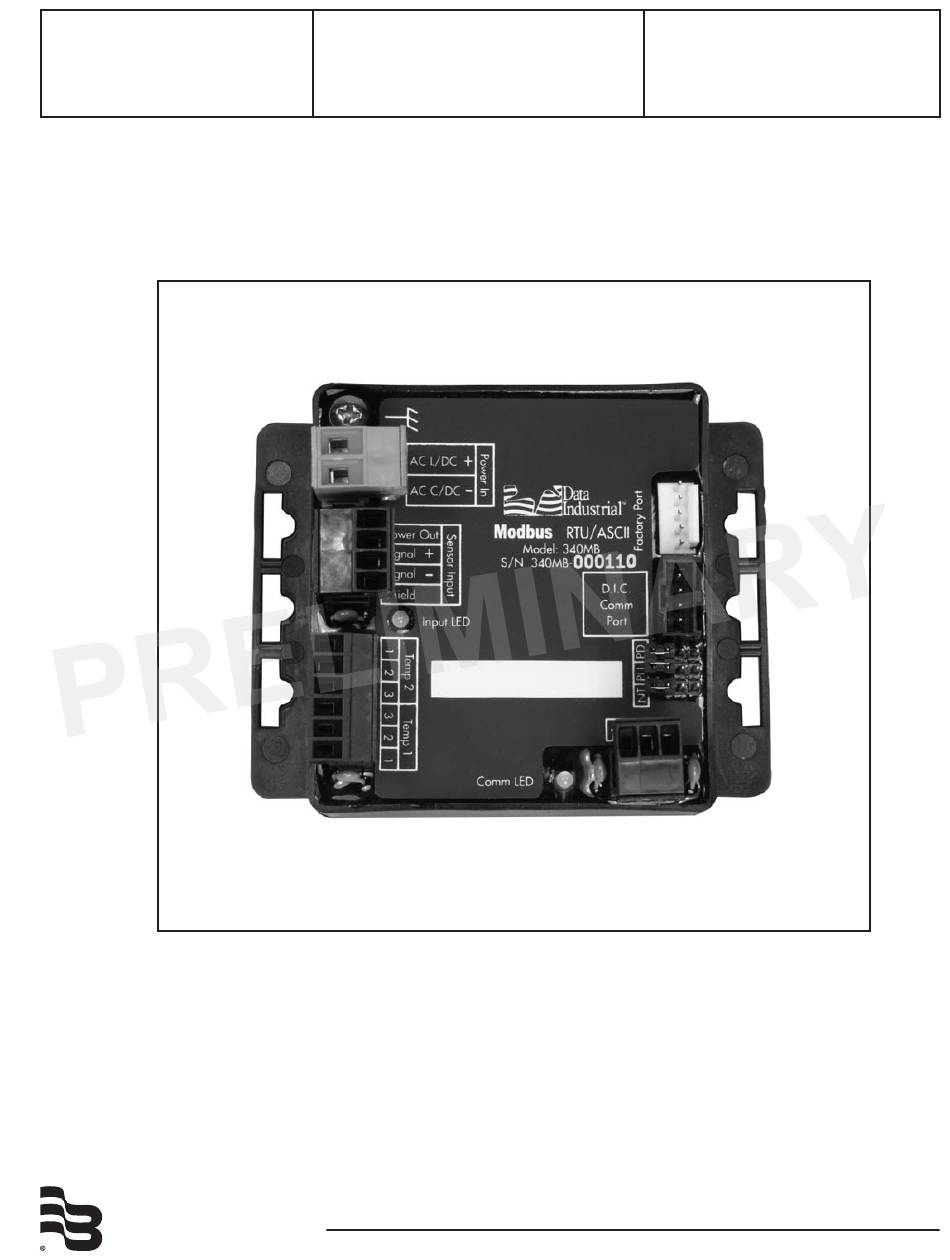

- Page 1 Installation & Modbus Energy Transmitter Model 340MB Operation Manual PN 820035 BadgerMeter, Inc. 12-07...
-
Page 2: Table Of Contents
3-wire RS-485 bus . The Model 340MB Btu transmitter operates on AC or DC power supplies ranging from 12 to 24 volts . -
Page 3: Installation
Optional clips snap onto the mounting flanges allowing the Model Figure 1: Model 340MB Dimensions 340MB to be attached to DIN 15, 32, 35 mm DIN rail systems . Wall Mounting Optional metal and plastic enclosures are available for the Model 340MB . - Page 4 . Power Supply Wiring The Model 340MB requires 12-24 volts AC or DC to operate . The power connections are made to the ORANGE header . The connections are labeled beside the header . Observe the polarity shown on the label .
- Page 5 Note 1: Biasing, circuitry, and resistors for PU, PD, and NT terminals are integral part of 340MB transmitter . Note 2: For the final 340MB transmitter in a given Modbus network, NT, PU, and PD jumpers should be in “open” position . Otherwise, RTU/ASCII NT, PU, and PD should be in the “closed”...
-
Page 6: Programming The Transmitter
1 . Install the Badger Meter Combo PC Software . 2 . Connect the PC to the Model 340MB transmitter using the Badger Meter Model A301 communications cable . Plug the Model RS232 connector on the Model A301 cable to the Model 340MB socket labeled “D .I .C . - Page 7 9 . Program the Model 340MB transmitter using the diagram below as a reference . Step 1 Step 2 Select the flow Select the desired unit sensor type and for the temperature sensor. enter the K and Offset values. Step 3 See Note 1.
-
Page 8: Diagnostic Utility
12 . To set the address for the 340MB transmitter, open the New Modbus diagnostic utility Address pull-down menu and select the correct polling ad- The MS/TP ReadBack diagnostic utility is provided as a helpful dress which matches the polling address entered into the tool to verify connection between the Model 340MB transmitter master controller for this node of the Modbus network . -
Page 9: Network Steup
This will open the MS/TP Check screen as shown below . MOdEL 340MB FACTOrY dEFAuLT SETTINGS The table below is a list of factory default setting for all 340MB variables . These settings can be changed by accessing the pa- rameters sensor (page 7) or Configure MS/TP screen (page 8) to best fit your application . -
Page 10: Specifications
Temperature units IEC-751 Standard Fahrenheit, Centigrade calibration range 0-150°C PrOGrAMMING Requires PC or laptop running Metal Enclosure dimensions ® Windows 2000, XP Badger Meter Model 340BN programming kit containing software and Model A-301 programming cable is required for programming and setup... - Page 11 (This page intentionally left blank.)
- Page 12 BadgerMeter, Inc. Please see our website at www.dataindustrial.com 6116 E . 15th Street, Tulsa, Oklahoma 74112 for specific contacts . (918) 836-8411 / Fax: (918) 832-9962 www .badgermeter .com Copyright © Badger Meter, Inc . 2007 . All rights reserved .
