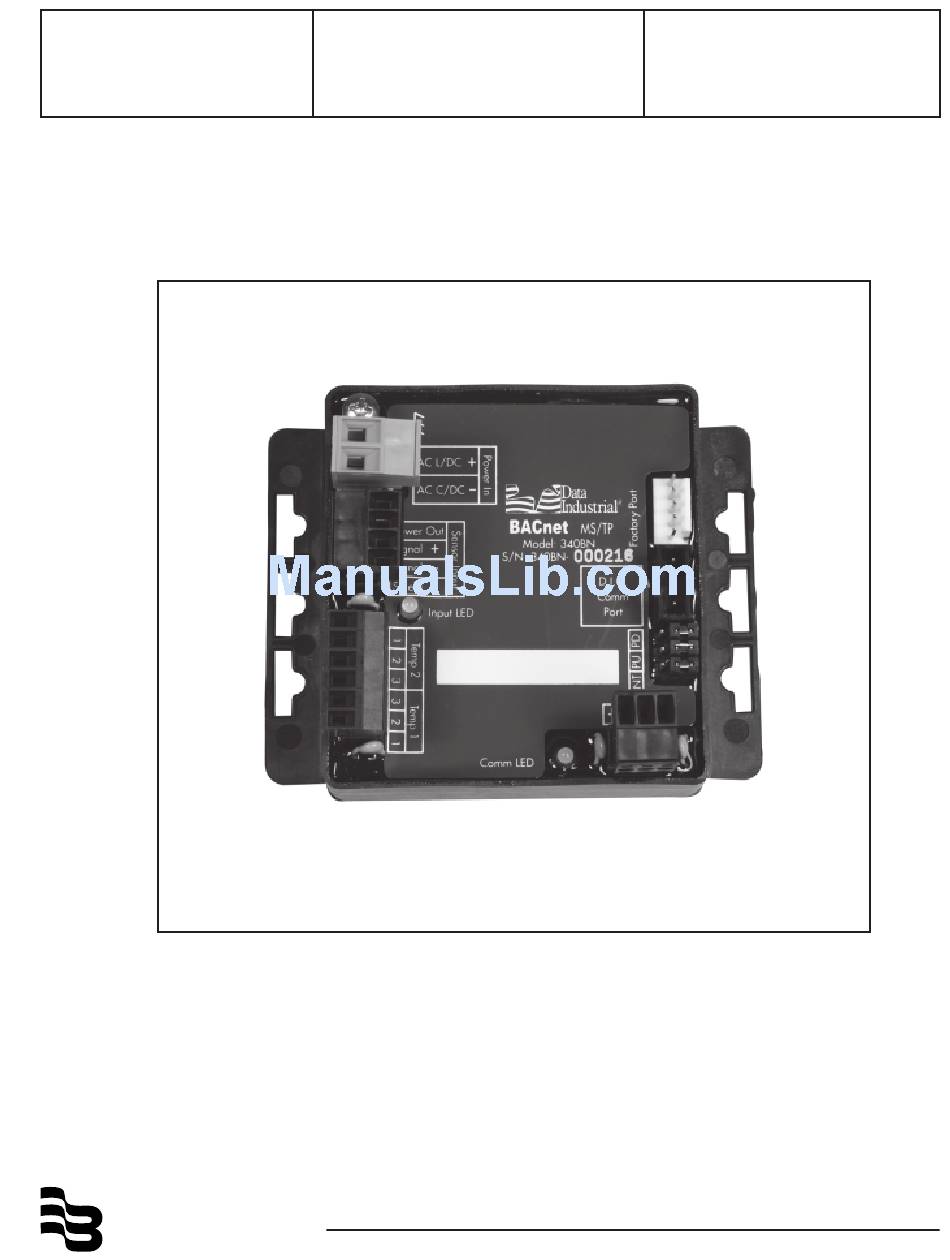

- Page 1 Installation & ® Model 340BN BACnet Energy Transmitter Operation Manual PN# 941700-0012 BadgerMeter, Inc. 3-07 ®...
-
Page 2: Table Of Contents
3-wire RS-485 bus. The Model 340BN Btu transmitter operates on AC or DC power supplies ranging from 12 to 24 volts. The compact cast epoxy body measures 3.65”(93mm) x 2.95”(75mm) and can be easily mounted in panels, enclosures or... -
Page 3: Installation
Optional clips snap onto the mounting flanges allowing the Model Figure 1: Model 340BN Dimensions 340BN to be attached to DIN 15, 32, 35 mm DIN rail systems. Wall Mounting Optional metal and plastic enclosures are available for the Model 340BN. - Page 4 Wire Power Supply Wiring The Model 340BN requires 12-24 volts AC or DC to operate. The power connections are made to the ORANGE header. The con- nections are labeled beside the header. Observe the polarity Series 300 shown on the label.
- Page 5 Note 1: Biasing, circuitry, and resistors for PU, PD, and NT terminals are integral part of 340BN transmitter. Note 2: For the final 340BN transmitter in a given BACnet network, NT, PU, and PD jumpers should be in “open” position. Otherwise, NT, PU, and PD should be in the “closed”...
-
Page 6: Programming The Transmitter
1. Install the Badger Meter Combo PC Software. 2. Connect the PC to the Model 340BN transmitter using the Badger Meter Model A301 communications cable. Plug the Model RS232 connector on the Model A301 cable to the Model 340BN socket labeled “D.I.C. - Page 7 Note #1: 10. After setting Model 340BN parameters, press Exit and re- Badger Meter sensors are pulse type sensors. The K and Offset turn to the Main screen. information is printed in the owners manual shipped with the prod- uct.
-
Page 8: Diagnostic Utility
12. To set the MS/TP address for the 340BN transmitter, open the New Address pull-down menu and select the correct poll- Connect the PC to the Model 340BN transmitter using ing address which matches the polling address entered into the Badger Meter Model A301 communications cable. -
