- Page 1 AVALIGHT-XE-HP LIGHT SOURCES Operation and Installation Manual NEED TECHNICAL SUPPORT? Scan the QR-code or visit www.avantes.com/support We are happy to help you!
- Page 2 This document is protected by copyright. Do not copy or publish this document or parts of it without written permission of Avantes BV. Product specifications and descriptions in this manual are subject to change without notice. Avantes BV will not be responsible for errors and omissions in this manual or for direct or incidental damages in connection with the use of this device or information.
-
Page 3: Table Of Contents
Table of Content Introduction ...................... 3 AvaLight-XE-HP ....................4 Quick start ....................4 Specifications..................... 7 Technical data ..................... 7 Ordering information ..................7 Technical support....................8 Getting help ....................8 AvaSoft updates .................... 8 AvaSoft and light soures .................. 8 Revision: 1-00 ©... -
Page 4: Introduction

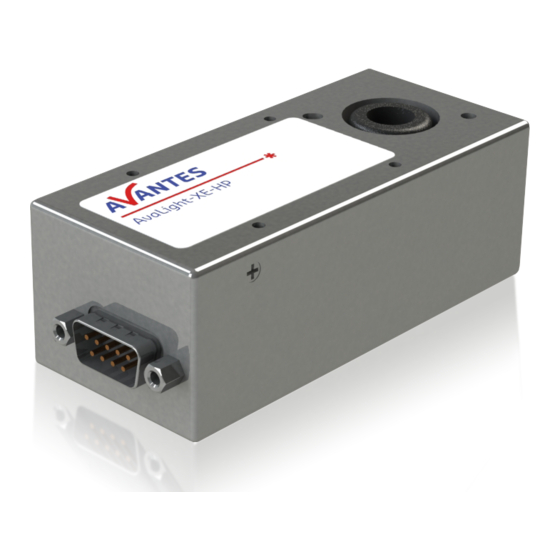

Introduction Thank you for purchasing the Avantes AvaLight-XE-HP. This light source will provide an outstanding performance. To make sure you get the best out of its performance, it is perfectly compatible with all Avantes AvaSpec spectrometers. The AvaLight-XE-HP high-power pulsed xenon light source is a high-power, high flash rate, short-arc xenon lamp for applications requiring absorbance, reflection, fluorescence and phosphorescence measurements. -
Page 5: Avalight-Xe-Hp
For pulse mode to be controlled by software it is needed to connect an AvaSpec spectrometer to the AvaLight-XE-HP with the Y interface cable. The other end of the Y cable goes to the power supply. Now it is possible to control the output operation mode by software (AvaSoft). - Page 6 Arc length 1.5 mm Operating conditions Main discharge Main discharge Max. average Max. repetition Max. average capacitor (µF) voltage (V) input energy per rate (Hz) power (W) flash (mJ) 17.6 0.22 27.5 39.6 Revision: 1-00 © Avantes BV www.avantes.com info@avantes.com...
- Page 7 Mechanical dimensions Spectral output (reference) Revision: 1-00 © Avantes BV www.avantes.com info@avantes.com...
-
Page 8: Specifications
98 x 44 x 35 mm, 192 grams 3.2 Ordering information AvaLight-XE-HP 6W xenon light source (200-1000 nm), with Y-cable for powered trigger connection. Needs extra PS-12V/2.08A power supply PS-12V/2.08A Power supply 100-240 VAC/12 VDC, 2.08A for AvaLight-XE-HP Revision: 1-00 © Avantes BV www.avantes.com info@avantes.com... -
Page 9: Technical Support
Technical support 4.1 Getting help If you have any questions, comments or requests concerning your AvaLight-XE-HP or the AvaSoft software, please go to: http://www.avantes.com In case you have any questions or need support, please send us an email via support@avantes.com 4.2 AvaSoft updates... - Page 10 Revision: 1-00 © Avantes BV www.avantes.com info@avantes.com...
