Mounting
4.3

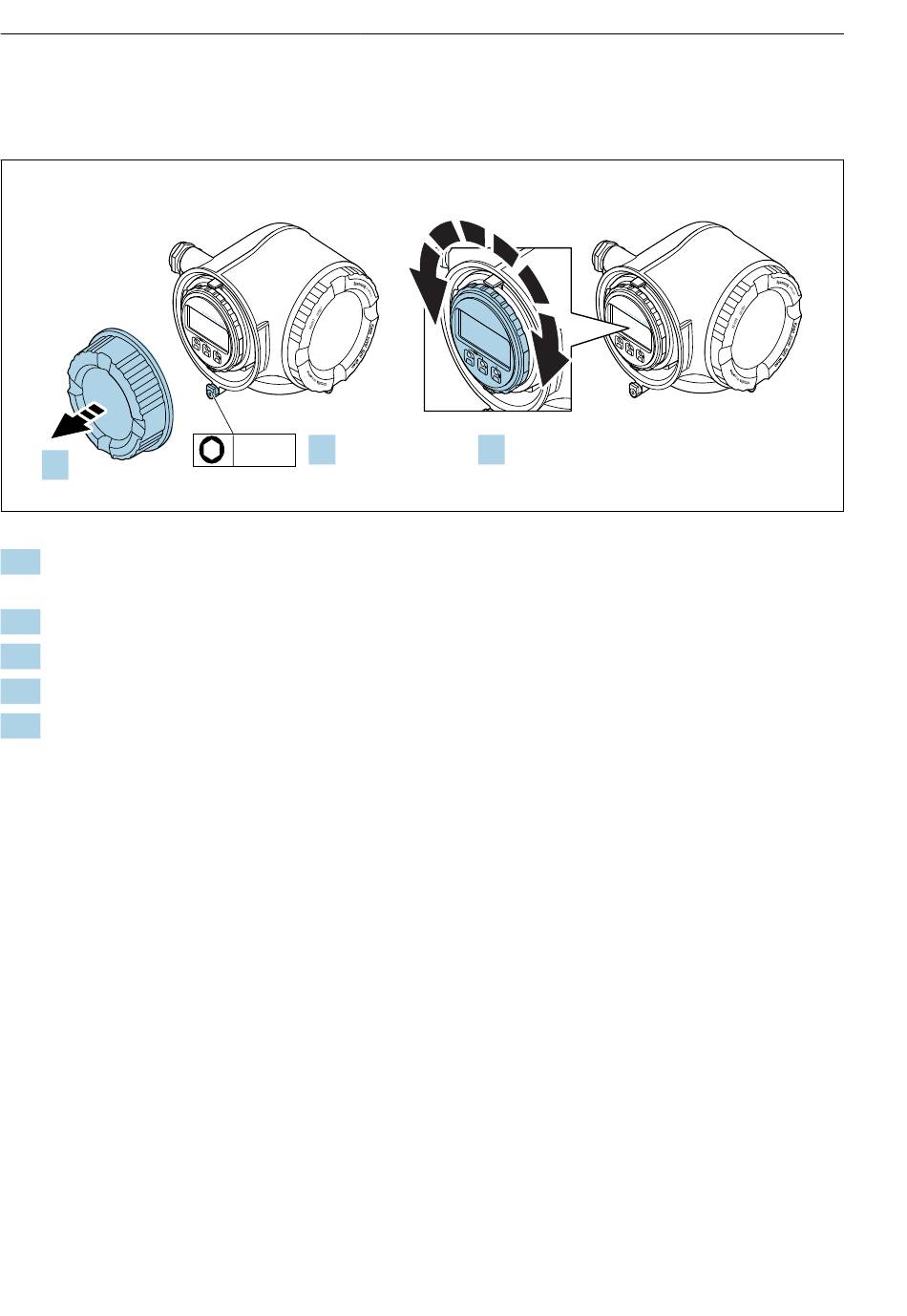

Turning the display module

The display module can be turned to optimize display readability and operability.
2.
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Turn the display module to the desired position: max. 8 × 45° in each direction.
4. Screw on the connection compartment cover.
5. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
14
E S
C
–
+
E
3 mm 1.
E S
C
–
+
E S
C
E
–
+
E
3.
Flowmeter Proline 500
A0030035
