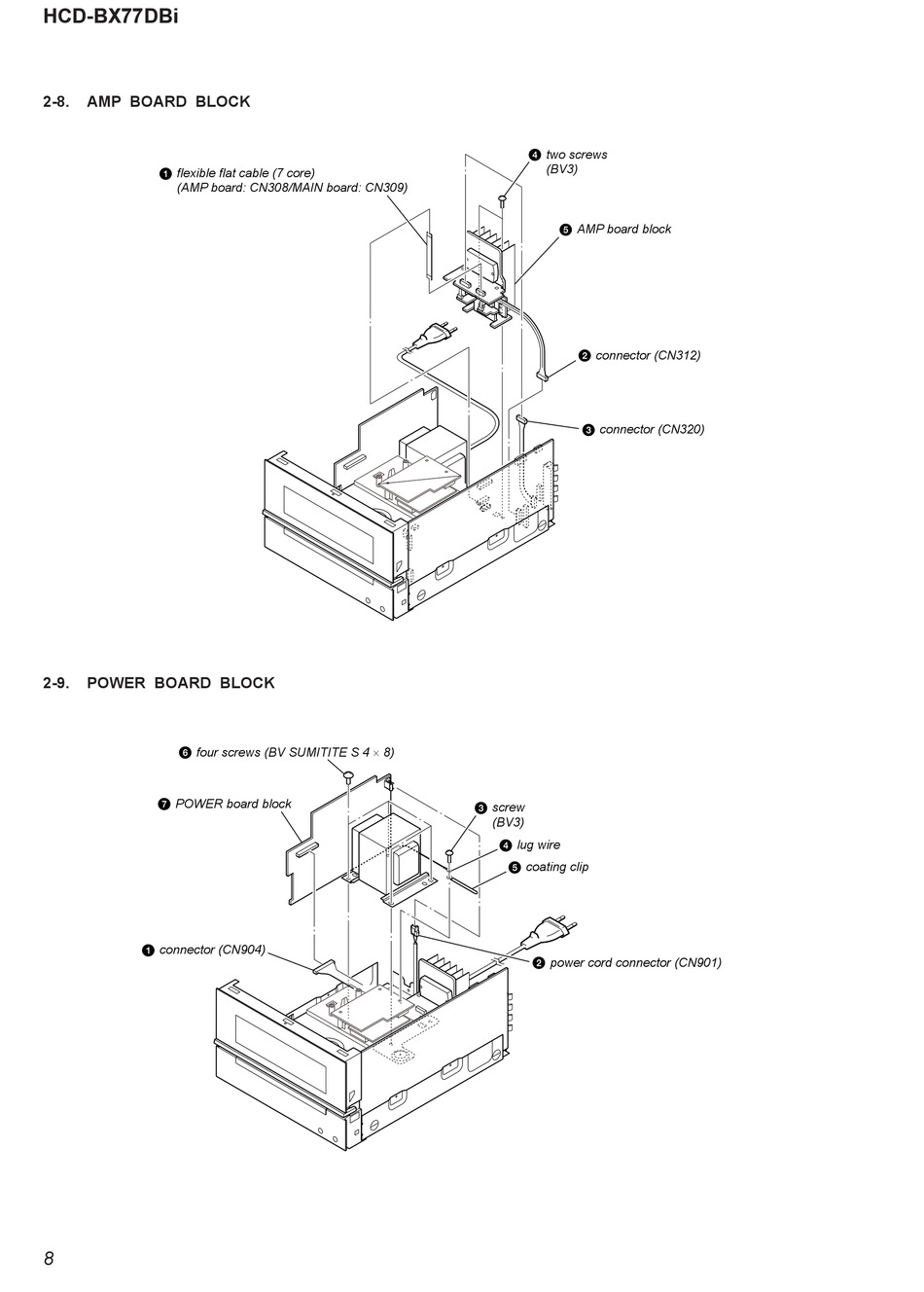

HCD-BX77DBi
2-8.
AMP BOARD BLOCK
1 flexible flat cable (7 core)
(AMP board: CN308/MAIN board: CN309)
2-9.
POWER BOARD BLOCK
6 four screws (BV SUMITITE S 4
7 POWER board block
1 connector (CN904)
8
4 two screws
(BV3)
8)
3 screw
(BV3)
4 lug wire
5 coating clip
2 power cord connector (CN901)
5 AMP board block
2 connector (CN312)
3 connector (CN320)
