PROJECT NAME
ANDROMEDA DELUXE
BASED ON
Nordland ODR-C
EFFECT TYPE
Overdrive
PROJECT SUMMARY
An updated version of the definitive Nashville overdrive, handmade by the original circuit designer,
adding three new controls and a number of other small refinements.

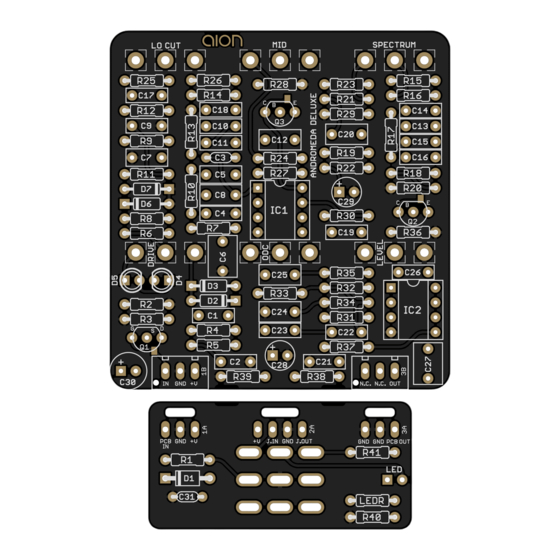

Actual size is 2.3" x 2.42" (main board) and 1.78" x 0.86" (bypass board).

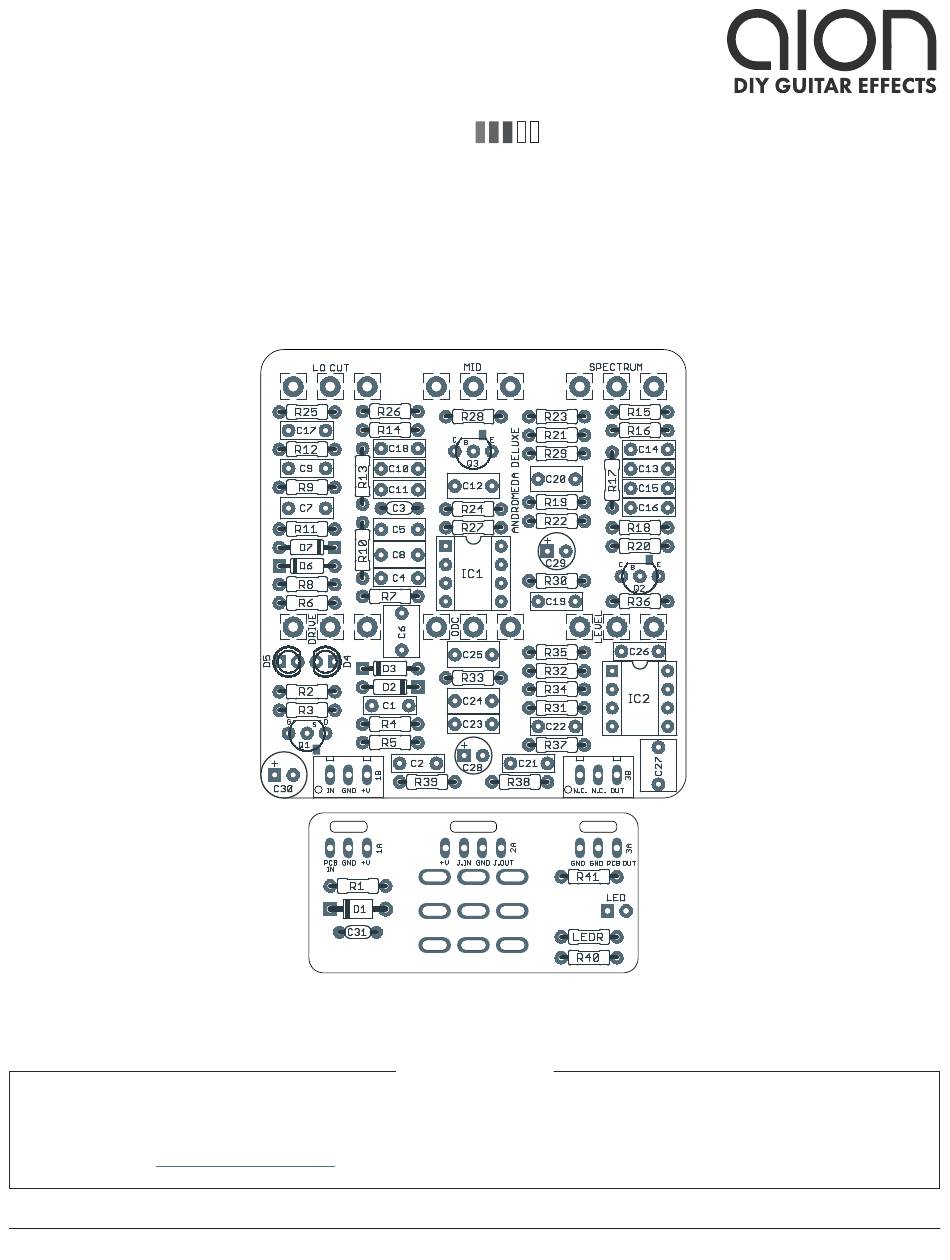

This documentation is for the Deluxe version of the project. Please make sure your PCB matches
the above image (a larger board with six knobs) before proceeding since the part numbering is
different. The
original Andromeda
ANDROMEDA DELUXE NATURAL OVERDRIVE
BUILD DIFFICULTY
DOCUMENT VERSION
1.0.1 (2021-12-17)
IMPORTANT NOTE
is available as a separate project.
Intermediate
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for aion ANDROMEDA DELUXE
Summary of Contents for aion ANDROMEDA DELUXE
- Page 1 This documentation is for the Deluxe version of the project. Please make sure your PCB matches the above image (a larger board with six knobs) before proceeding since the part numbering is different. The original Andromeda is available as a separate project. ANDROMEDA DELUXE NATURAL OVERDRIVE...
-
Page 2: Table Of Contents
ODR-1, so the core circuit is the same change despite all the added features. The Andromeda Deluxe is based on the audio path of the ODR-C, only cutting out the complex polarity protection and LED dimmer circuit. Side by side, they should sound the same. But we’ll reiterate that the original ODR-C is fantastic piece of engineering and it’s worth it if you can find one. -
Page 3: Parts List
Metal film resistor, 1/4W 100R Metal film resistor, 1/4W Metal film resistor, 1/4W 100k Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W ANDROMEDA DELUXE NATURAL OVERDRIVE... - Page 4 Film capacitor, 7.2 x 3.5mm Film capacitor, 7.2 x 2.5mm Film capacitor, 7.2 x 2.5mm Film capacitor, 7.2 x 2.5mm Film capacitor, 7.2 x 3.5mm Film capacitor, 7.2 x 3.5mm 100n Film capacitor, 7.2 x 2.5mm ANDROMEDA DELUXE NATURAL OVERDRIVE...
- Page 5 Switchcraft 111X or equivalent. 1/4" mono 1/4" phone jack, closed frame Switchcraft 111X or equivalent. 2.1mm DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. ANDROMEDA DELUXE NATURAL OVERDRIVE...
-
Page 6: Build Notes
The original ODR-C uses the 2N5486 (MMBF5486) JFET for Q1, which is no longer in active production. This is very similar to the 2N5457, which is available from Aion FX in SMD format pre- soldered to through-hole adapter boards and will perform identically in this circuit. -
Page 7: Schematic
SCHEMATIC 1N5817 100uF 47uF 47uF 100n BC549C SPECTRUM 50kB 2N5486 IC1A IC2A IC1B IC2B 50kB 470R 150pF 1N914 LO_CUT 25kB BC549C 25kB 220n DRIVE 250kA ANDROMEDA DELUXE BOOST / OVERDRIVE... -
Page 8: Drill Template
+0.775, y: +1.71 ø9/32” ø9/32” ø9/32” LEVEL DRIVE x: -0.775, y: +0.41 x: +0.775, y: +0.41 x: 0, y: +0.41 ø9/32” ø9/32” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.775 x: 0, y: -1.775 ø5/16” ø15/32” ANDROMEDA DELUXE NATURAL OVERDRIVE... -
Page 9: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B ANDROMEDA DELUXE NATURAL OVERDRIVE... -
Page 10: Wiring Diagram
WIRING DIAGRAM NC OUT GND +V +V JACK GND JACK GND GND PCB 125B ANDROMEDA DELUXE NATURAL OVERDRIVE... -
Page 11: Document Revisions
The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.1 (2021-12-17) Corrected the drill template. The bottom row of pots needed to be moved down by 0.125”. 1.0.0 (2021-10-22) Initial release. ANDROMEDA DELUXE NATURAL OVERDRIVE...
