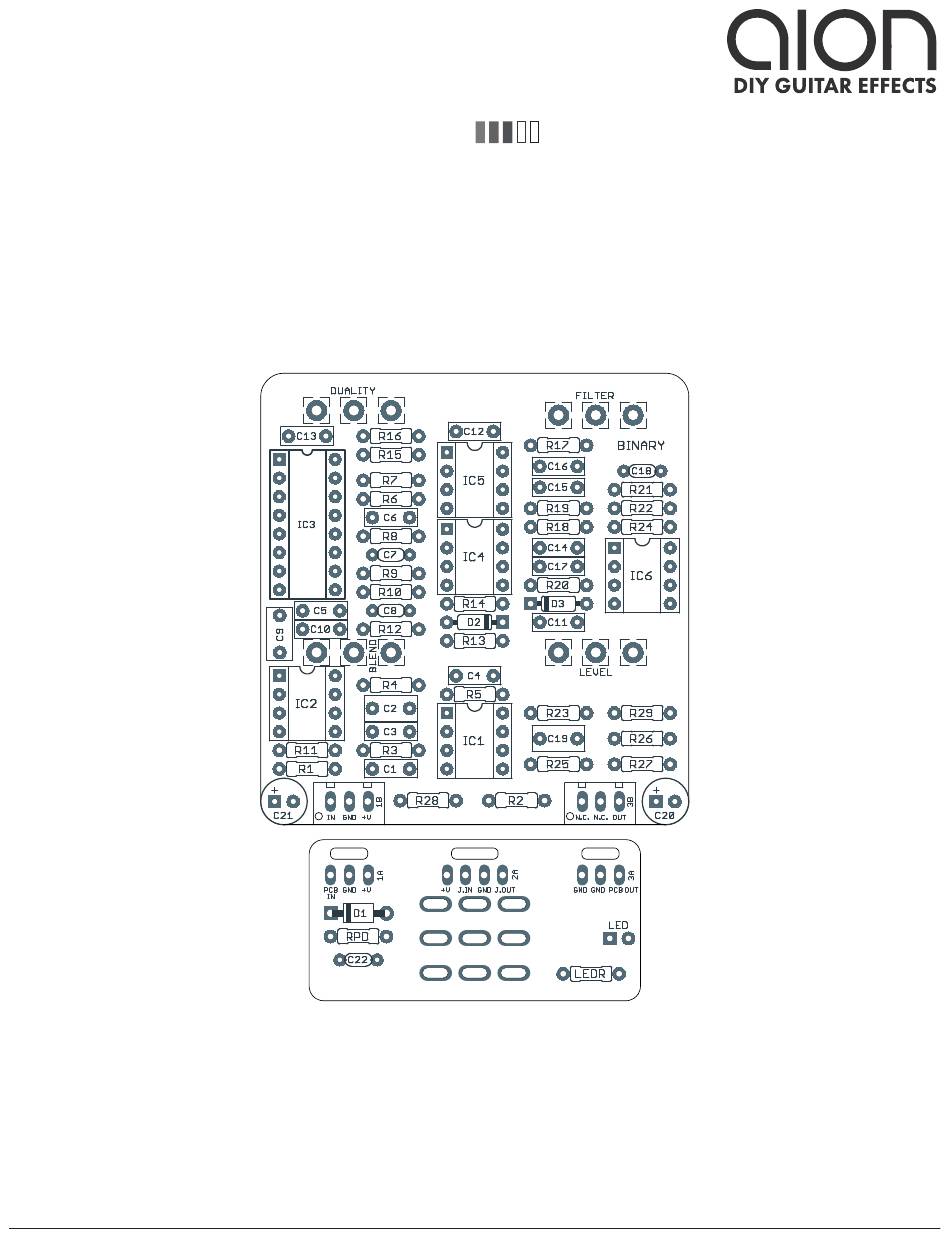

PROJECT NAME
BINARY
BASED ON
®
Darkglass
Duality
EFFECT TYPE
Bass fuzz
PROJECT SUMMARY
A bass fuzz with two distinct voicings that can be blended together in any ratio, from vintage warmth to
searing, gated chaos.

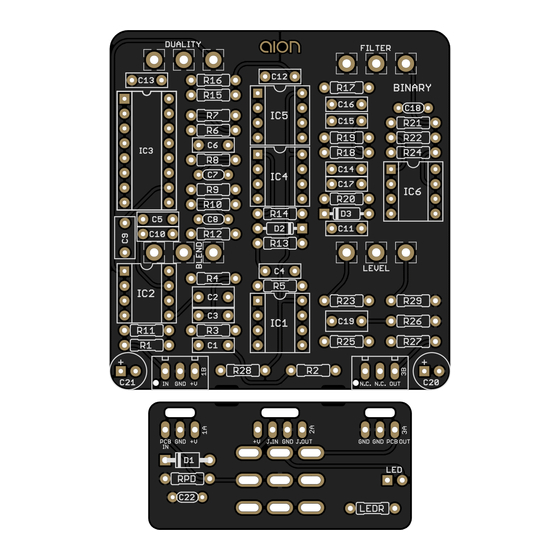

Actual size is 2.3" x 2.42" (main board) and 1.78" x 0.86" (bypass board).
BINARY DUAL FUZZ
BUILD DIFFICULTY
Intermediate
DOCUMENT VERSION
1.1.0 (2022-01-19)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for aion BINARY
Summary of Contents for aion BINARY
- Page 1 PROJECT SUMMARY A bass fuzz with two distinct voicings that can be blended together in any ratio, from vintage warmth to searing, gated chaos. Actual size is 2.3” x 2.42” (main board) and 1.78” x 0.86” (bypass board). BINARY DUAL FUZZ...
-
Page 2: Table Of Contents
The Binary is a direct clone of the Duality based on our own trace, which is documented at length in our tracing journal. Some extra power filtering has been added, but otherwise everything is true to the original. -
Page 3: Parts List
Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W Input pulldown resistor. LEDR Metal film resistor, 1/4W LED current-limiting resistor. Adjust value to change LED brightness. BINARY DUAL FUZZ... - Page 4 CMOS hex inverting buffer, DIP16 IC3-S DIP-16 socket IC socket, DIP-16 TL072 Operational amplifier, DIP8 IC4-S DIP-8 socket IC socket, DIP-8 TL072 Operational amplifier, DIP8 IC5-S DIP-8 socket IC socket, DIP-8 TL072 Operational amplifier, DIP8 IC6-S DIP-8 socket IC socket, DIP-8 BINARY DUAL FUZZ...
- Page 5 Switchcraft 111X or equivalent. 1/4" mono 1/4" phone jack, closed frame Switchcraft 111X or equivalent. 2.1mm DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. BINARY DUAL FUZZ...
-
Page 6: Build Notes
BUILD NOTES Filter and Blend knob rotation The Filter and Blend controls were inadvertently reversed in the original run of the Binary. This was fixed in version 1.1 which began shipping in January 2022. If your PCB does not say “v1.1” in the upper right then you have the earlier reversed version. In this version the blend knob goes from full effect at CCW to full clean at CW, and the filter control will act as a treble cut as you turn it up rather than adding treble as in a normal tone control. -
Page 7: Schematic
IC3D TL072P IC2A TL072P CD4049UBE CD4049UBE CD4049UBE TL072P 470k 680pF 220pF 330k 100n 330k IC3C CD4049UBE IC3B IC6B TL072P IC5A CD4049UBE TL072P 220k IC6A TL072P IC3A IC5B TL072P 220k CD4049UBE 680pF FILTER 100kB BLEND 100kB IC1B TL072P BINARY DUAL FUZZ... -
Page 8: Drill Template
FILTER DUALITY x: -0.65, y: +1.71 x: +0.65, y: +1.71 ø9/32” ø9/32” LEVEL BLEND x: -0.65, y: +0.41 x: +0.65, y: +0.41 ø9/32” ø9/32” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.775 x: 0, y: -1.775 ø5/16” ø15/32” BINARY DUAL FUZZ... -
Page 9: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B BINARY DUAL FUZZ... -
Page 10: Wiring Diagram
WIRING DIAGRAM NC OUT GND +V +V JACK GND JACK GND GND PCB 125B BINARY DUAL FUZZ... -
Page 11: Document Revisions
Added build note about Blend and Filter controls being reversed from the original unit and how to change it. This will be corrected in version 1.1 of the PCB. 1.0.1 (2021-11-15) Corrected value of C18 (was listed as 68pF) and added build notes on midrange mod. 1.0.0 (2021-11-12) Initial release. BINARY DUAL FUZZ...
