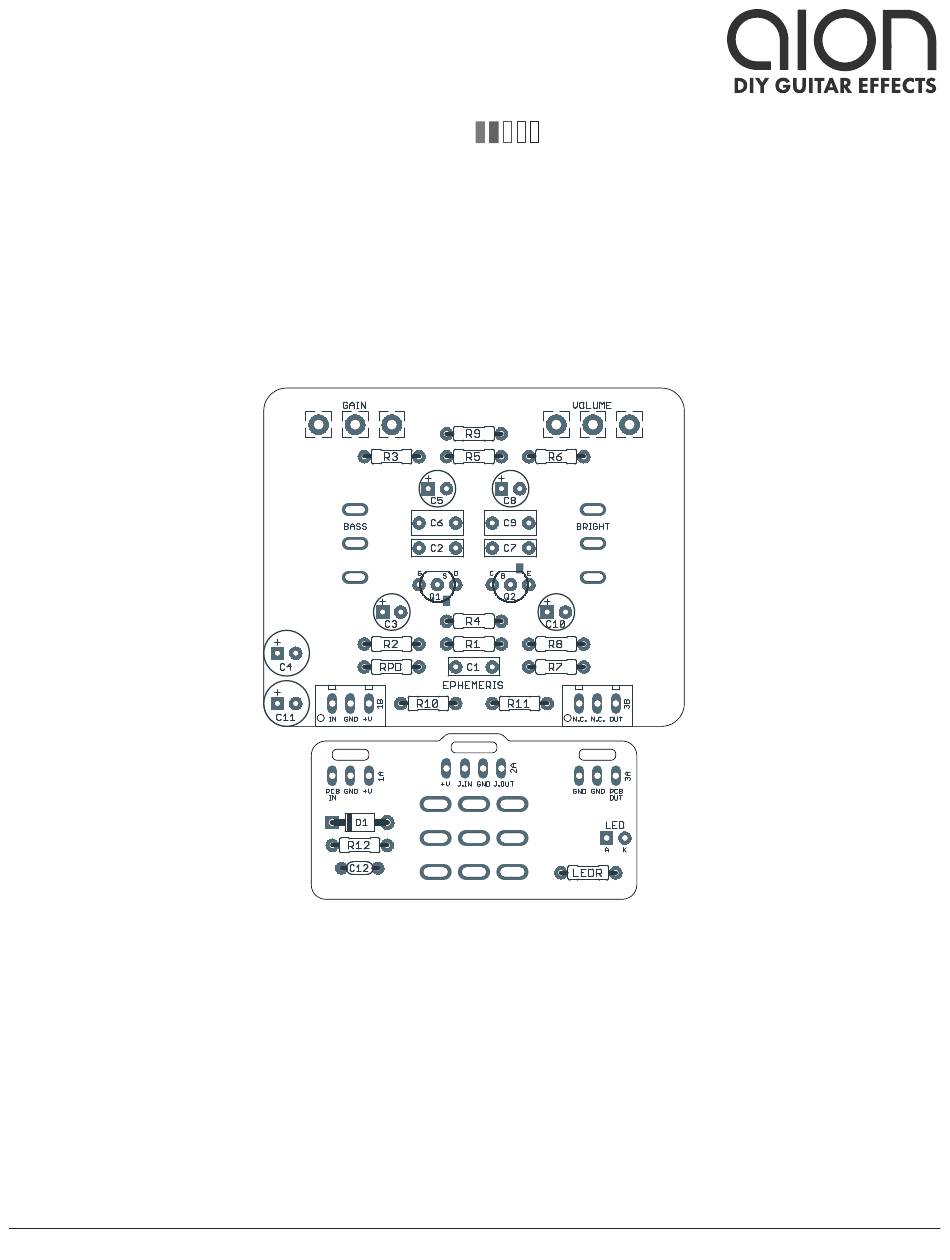

PROJECT NAME
EPHEMERIS
BASED ON
Xotic EP Booster
EFFECT TYPE
JFET boost/preamp
PROJECT SUMMARY
A hybrid JFET/BJT boost circuit loosely based on the preamp section of the Echoplex EP-3 tape delay.

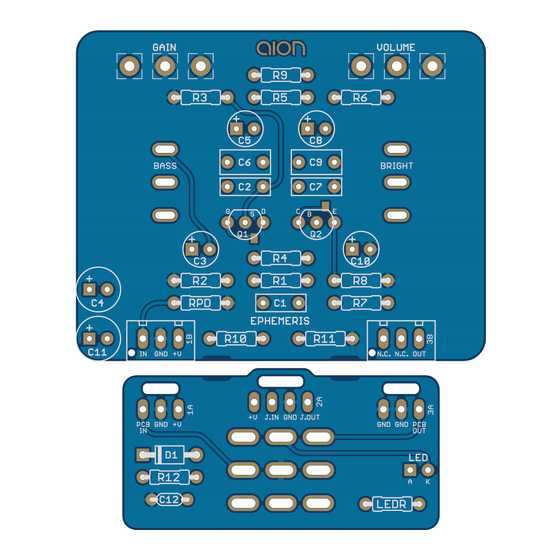

Actual size is 2.3" x 1.86" (main board) and 1.78" x 0.86" (bypass board).
EPHEMERIS JFET BOOSTER
BUILD DIFFICULTY
Easy
DOCUMENT VERSION
1.0.0 (2023-11-24)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aion Ephemeris
Summary of Contents for aion Ephemeris
- Page 1 JFET boost/preamp 1.0.0 (2023-11-24) PROJECT SUMMARY A hybrid JFET/BJT boost circuit loosely based on the preamp section of the Echoplex EP-3 tape delay. Actual size is 2.3” x 1.86” (main board) and 1.78” x 0.86” (bypass board). EPHEMERIS JFET BOOSTER...
-
Page 2: Table Of Contents
10 Document Revisions INTRODUCTION The Ephemeris JFET Booster is based on the Xotic EP Booster, a one-knob boost first released in 2009 that is loosely based on the preamp section of the Echoplex EP-3 tape delay. There have been some... -
Page 3: Parts List
Can substitute BC549C (rotate 180 degrees). GAIN 10kC 16mm right-angle PCB mount pot Reverse audio (reverse log or antilog) taper. VOLUME 50kA 16mm right-angle PCB mount pot Audio (log) taper. BRIGHT SPDT on-on Toggle switch, SPDT on-on EPHEMERIS JFET BOOSTER... - Page 4 DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. BATT Battery snap 9V battery snap Optional. Use the soft plastic type—the hard-shell type will not fit. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. EPHEMERIS JFET BOOSTER...
-
Page 5: Build Notes
Just note that Transistor substitutions The EP Booster uses the BC849C for Q2, which is the SMD equivalent of the BC549C. The Ephemeris PCB uses the USA E-B-C convention, so we recommend using the 2N5088 or 2N5089. If you do want to use a BC549C, just make sure to rotate it 180 degrees from the silkscreen. -
Page 6: Schematic
SCHEMATIC 390R 1N5817 100uF 100n 47uF EPHEMERIS JFET BOOSTER... -
Page 7: Drill Template
VOLUME GAIN x: -0.65, y: +1.71 x: 0.65, y: +1.71 ø9/32” ø9/32” BRIGHT BASS x: -0.65, y: +0.41 x: 0.65, y: +0.41 ø1/4” ø1/4” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.20 x: 0, y: -1.20 ø5/16” ø15/32” EPHEMERIS JFET BOOSTER... -
Page 8: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B EPHEMERIS JFET BOOSTER... -
Page 9: Wiring Diagram
GND +V +V JACK GND JACK GND GND PCB 125B Shown with optional 9V battery. If battery is omitted, both jacks can be mono rather than one being stereo. Leave the far-right lug of the DC jack unconnected. EPHEMERIS JFET BOOSTER... -
Page 10: Document Revisions
(In other words: you don’t have to go out of your way to advertise the fact that you use these PCBs, but please don’t go out of your way to hide it. The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.0 (2023-11-24) Initial release. EPHEMERIS JFET BOOSTER...
