PROJECT NAME
AZIMUTH
BASED ON
Hermida / Lovepedal Zendrive
EFFECT TYPE
Overdrive
PROJECT SUMMARY
The first overdrive that attempted to replicate the tone of the legendary Dumble amplifiers. A favorite
of blues guitarists, and with its low parts count, a great project for beginners.
This documentation is for the kit version of the project. If you purchased the PCB by itself, please
use the
PCB-only version
are completely different due to the specialized parts and assembly methods used in the kit.

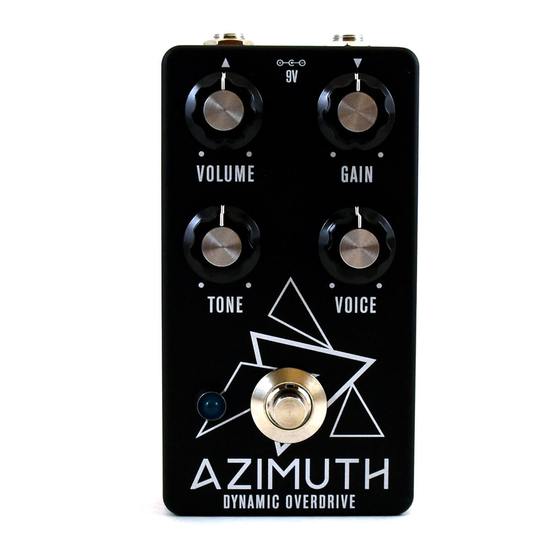

AZIMUTH DYNAMIC OVERDRIVE
VOLUME
TONE
AZIMUTH
DYNAMIC OV ERDRI VE
IMPORTANT NOTE
of the documentation instead. The circuit is the same, but the instructions
BUILD DIFFICULTY
Beginner
DOCUMENT VERSION
1.1.0 (2020-01-07)
9V
GAIN
VOICE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AZIMUTH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aion AZIMUTH

  • Page 1 This documentation is for the kit version of the project. If you purchased the PCB by itself, please use the PCB-only version of the documentation instead. The circuit is the same, but the instructions are completely different due to the specialized parts and assembly methods used in the kit. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 2: Table Of Contents

    20 Enclosure Layout: Main & Footswitch PCBs 21 Enclosure Layout: Input/Output PCB 22 Final Testing & Assembly 23 Schematic 24 Full Parts List 25 Troubleshooting Information 26 Support & Resale Terms 27 Legal Information & Document Revisions AZIMUTH DYNAMIC OVERDRIVE...
  • Page 3: Introduction

    INTRODUCTION If this is your first pedal, welcome to the hobby and thank you for choosing Aion FX. You’ve just joined a community of over 40,000 people around the world with a passion for building homemade noise machines using obsolete electronics technologies, and we’re glad to have you! If you’ve done this before, it’s great to see you again and we’re confident you’ll find this build experience...
  • Page 4 470n (0.47) Electrolytic Capacitors NAME 47uF NAME 100uF NE5532P 8-pin socket MLCC Capacitors Transistors NAME NAME 100pF (marked “101”) 100n (marked “104”) 2N7000 Diodes NAME 1N5817 BAT41 Germanium (glass case with colored bands, no printed part number) AZIMUTH DYNAMIC OVERDRIVE...
  • Page 5 4-pin wire assembly header NAME LED bezel LED, blue 9V battery snap DC jack Input/output jack Mounting nut, jack, 0.54" Outer washer, jack, 0.6" Lock washer, jack, 0.5" (thin) Enclosure Enclosure screws PCB, main circuit PCB, footswitch PCB, input/output/DC AZIMUTH DYNAMIC OVERDRIVE...
  • Page 6: Tools Needed

    The tip should used to tighten the dress nut to avoid lot of pedals! be no more than 0.1” (2.5mm) wide. scratching or denting it (which can happen with metal tools). AZIMUTH DYNAMIC OVERDRIVE...
  • Page 7: Component Identification

    Some voltage regulators It’s recommended to use a also look like this. They may also look like this. razor blade to separate have more than 8 legs. these cleanly. WIRE ASSEMBLY WIRE ASSEMBLY HEADER DC JACK LED BEZEL AZIMUTH DYNAMIC OVERDRIVE...
  • Page 8: Hardware Identification

    MOUNTING NUT DRESS NUT LOCK WASHER DIAMETER: 0.36” / 9.1mm DIAMETER: 0.375” / 9.5mm DIAMETER: 0.4” / 10.1mm FOOTSWITCH MOUNTING NUT DRESS NUT LOCK WASHER DIAMETER: 0.6” / 15.2mm DIAMETER: 0.77” / 19.6mm DIAMETER: 0.6” / 15.2mm AZIMUTH DYNAMIC OVERDRIVE...
  • Page 9: Pcb Assembly Overview

    PCB is upside-down, everything is making contact with the work surface and is held in place. So, you will start by populating the resistors (the lowest-profile components), followed by the diodes, sockets, film capacitors, and finally the electrolytic capacitors. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 10: Resistors

    You’ll use this same technique for most of the other components as well. If this is your first time soldering, watch tutorial videos on YouTube and make sure you get it down before you begin. You don’t want to practice or experiment on this board! AZIMUTH DYNAMIC OVERDRIVE...
  • Page 11: Diodes

    The germanium diodes included with this kit have been individually tested and verified as working. Unless they arrive damaged, free replacements will not be offered, so please be careful! AZIMUTH DYNAMIC OVERDRIVE...
  • Page 12: Socket & Ic

    ICs may have two different orientation marks: either a dot in the upper-left or a half-circle notch in the middle of the top side. Some ICs have both marks. This shows which way the IC should be rotated when inserting it into a socket (the socket also has a half-circle notch). AZIMUTH DYNAMIC OVERDRIVE...
  • Page 13: Transistors

    You can just solder them directly to the board. Just be careful because they are very static-sensitive. Bend the outer leads to hold it in place on the board. Then, solder them and clip the leads. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 14: Capacitors (Non-Polarized)

    Bend the leads at an angle to hold them in place. MLCCs and box capacitors are not polarized and will work in any direction. To keep things neat, though, it’s best to put them all facing the same way. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 15: Wire Headers

    They do fit pretty tightly in the holes, though, so press firmly. There’s also a 4-pin header on the I/O board that we will do in a later step. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 16: Capacitors (Polarized)

    The longer leg is positive and fits in the square pad. These are the last of the on-board components. Now is the time to go back to page 12 and insert the IC into the socket. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 17: Footswitch Pcb

    BLUE MARKING Once all three wire assemblies are soldered, set the footswitch PCB aside. We’ll solder the actual footswitch and LED in a later step. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 18: Input/Output Pcb

    Red is positive (+), black is negative (-). After soldering, pull it tight. For even more strain relief, you can thread the snap through the loop to form a knot. (not shown) AZIMUTH DYNAMIC OVERDRIVE...
  • Page 19: Enclosure Layout: Panel Mounts

    You’ll need to hold the bezel in place when OUTER WASHER tightening the nut. The top of the bezel is fairly MOUNTING NUT sharp, so try using a rubber band for grip instead of pressing your finger against the bottom. AZIMUTH DYNAMIC OVERDRIVE...
  • Page 20: Enclosure Layout: Main & Footswitch Pcbs

    However, Aion FX projects are designed to be extremely easy to remove from the enclosure for troubleshooting, with no desoldering required—so with these kits, it’s actually much easier to “box it before you rock it”.
  • Page 21: Enclosure Layout: Input/Output Pcb

    Note the use of two mounting nuts on each of the jacks, one inside and one outside. The inner nut acts as a spacer to set the DC jack flush with the outside of the enclosure. The inner nuts should be threaded as far down as they can go. MOUNTING NUT OUTER WASHER LOCK WASHER MOUNTING NUT 125B AZIMUTH DYNAMIC OVERDRIVE...
  • Page 22: Final Testing & Assembly

    Last, just close the panel on the back using the four screws. Before that, though, grab a permanent marker and write your name and the completion date on the inside of the back panel. This is an accomplishment! AZIMUTH DYNAMIC OVERDRIVE...
  • Page 23: Schematic

    SCHEMATIC 100R 1N5817 47uF 100n 100uF GND GND TONE IC1A 50kB IC1B NE5532 NE5532 100pF 2N7000 BAT41 1N34a BAT41 2N7000 100n 500kB GAIN AZIMUTH DYNAMIC OVERDRIVE...
  • Page 24: Full Parts List

    100pF MLCC 100uF electro BAT41 100n film 47uF electro Germanium 3n3 film 100n MLCC BAT41 Transistors Potentiometers Switches PART VALUE PART VALUE PART VALUE PART 3PDT stomp 2N7000 NE5532 Voice 10kB 2N7000 Tone 50kB Volume 100kB Gain 500kB AZIMUTH DYNAMIC OVERDRIVE...
  • Page 25: Troubleshooting Information

    0.5V higher or lower than these listed voltages, it’s a good indicator of an issue and the voltages can help you or someone else narrow it down. VOLTAGE 4.68V 4.68V 4.48V 4.63V 4.67V 4.67V 9.61V AZIMUTH DYNAMIC OVERDRIVE...
  • Page 26 “goop” the PCB or otherwise obscure the source. In other words: you don’t have to go out of your way to advertise the fact that you use Aion FX kits, but please don’t go out of your way to hide it.
  • Page 27 These kits are intended to be built by the customer. Aion FX is not responsible for language that may be used by the customer in the marketing or resale of the finished product.
