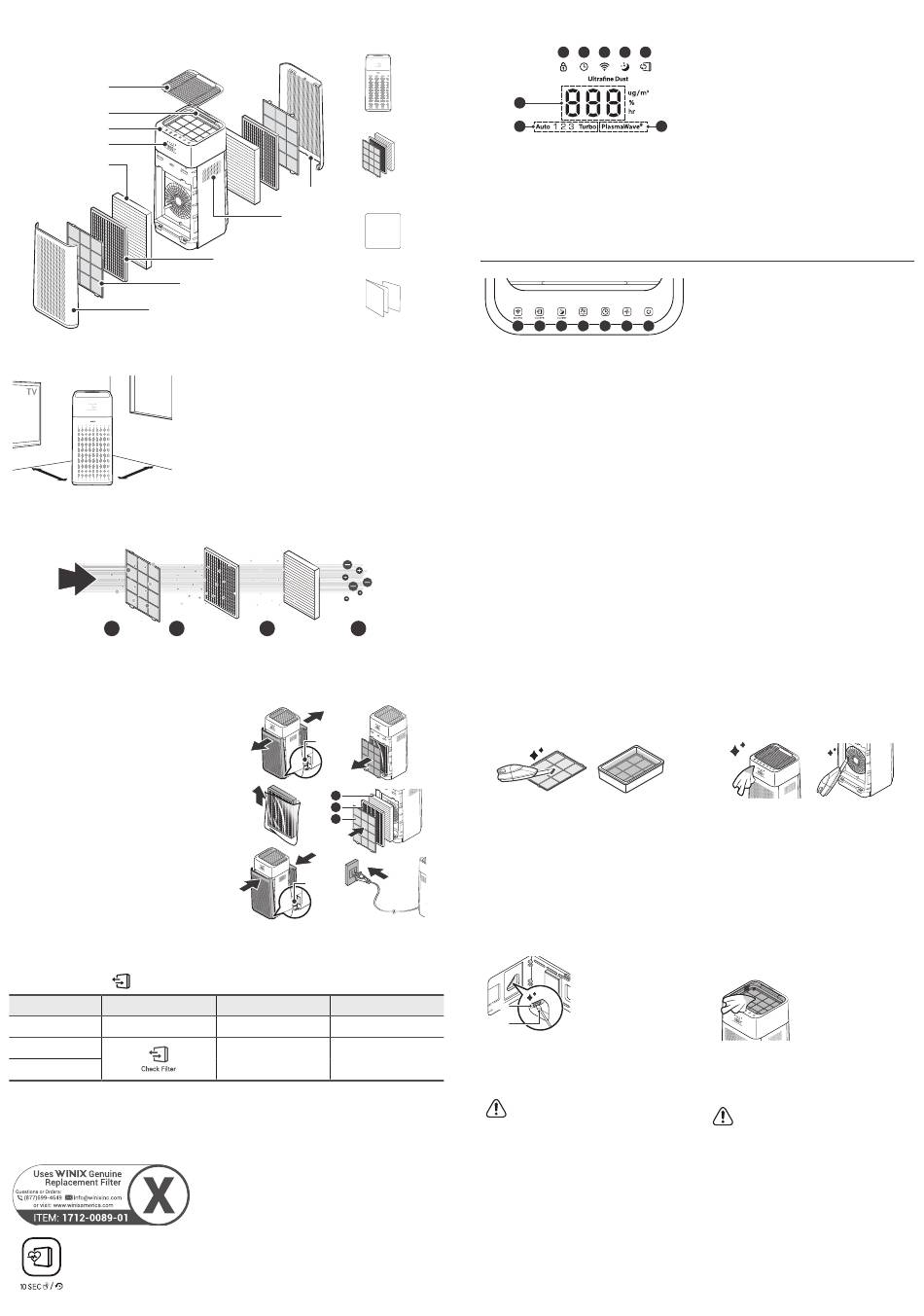

Winix XQ Pro User Manual

MODEL PART DIAGRAM
Grill
Air Quality Indicator
Button Control Section
Display
True HEPA Filter
Front Panel
WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may
cause product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and
12~18 in 12~18 in
vibrations.
Allow 12 ~ 18 in. from walls for maximum air flow
4-STAGE AIR PURIFICATION
01 Pre-Filter 02
INITIAL OPERATION
1.
Remove the front/rear panel by grasping its
upper edge and gently pulling forward.
- To remove the front/rear panel, release the
latch at the lower edge of the panel.
2.
Remove the Pre-Filter, then the plastic bag
of filters behind it.
3.
Remove filters from protective plastic bag.
4.
Install the filters until they fit securely in
place.
03. True HEPA Filter (back)
02. CD Carbon Filter (middle)
01. Pre-Filter (front)
5.
After filters are installed, close the front
panel.
6.
Insert the power cord into an electrical
outlet.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
Pre-Filter none
CD Carbon Filter
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and CD Carbon Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
Resetting Filter Life:
After replacing your True HEPA Filter, place the Pre-Filter back in and close the Front
Panel. While the unit is on, hold the Filter Reset Button for at least 10 seconds until
you hear the beep. After the beep, the Filter Replacement Indicator will disappear. Your
Winix True HEPA is now reset.
(2) Pre-Filter
Rear Panel
(2) CD Carbon Filters
(2) True HEPA Filters
Side Vent
CD Carbon Filter
Pre-Filter
Alexa Setup Guide /
Wi-Fi Setup Guide
Air Purification means it
removes inanimate particles
CD Carbon Filter 03 True HEPA Filter 04
Latch
03
02
01
Latch
When to Service When to Replace
Clean once every 14 days
Can NOT be WASHED Lasts Approx. 12 months
CONTROL PANEL
DISPLAY
06
Unit
07
01. Child Lock Indicator
LED light indicates whether Child Lock mode is
enabled or disabled.
02. Timer Indicator
If the timer has been set, the LED light indicates
the set time of operation.
03. Wi-Fi Indicator
Indicates whether Wi-Fi Mode is enabled or disabled.
User
Manual
CONTROLS
01 02
01. Wi-Fi / Pairing Button
• A quick press will turn Wi-Fi on/off.
• A long press of 3 seconds will activate pairing mode.
• A Wi-Fi indicator will display on the front while
Wi-Fi is active.
02. Filter Life / Filter Reset Button
• A quick press will show the remaining filter
life; indicated on the front display (100 ~ 0%).
• A long press of 10 seconds will reset the filter
life indicator.
- Use when replacing the filters.
- Filter Reset Button can be used when the
power is turned off.
- The filter life will be reset to 100%.
03. Sleep Mode / Child Lock Button
• A quick press of the Sleep Mode / Child Lock
Button cycles the unit in order from Sleep
Mode General Mode
→
• In Sleep Mode, the Sleep Mode LED icon on
the front indicator dims to 50% brightness. All
other LEDs are turned off.
• If you press Sleep Mode / Child Lock Button
for 3 seconds, Child Lock will be initiated
PlasmaWave and the buttons will not operate. A chime will
sound if pressed.
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean the
Pre-Filter
• If it is excessively soiled, rinse in room
temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more
before using.
• Intervals between filter cleaning may vary
depending on the air quality in the environment.
Cleaning the Smart Sensor:
Lens
Cotton
Permanent
swab
2.
Wipe away any remaining moisture with a dry
cotton swab.
N O T I C E
• Do not use benzene, alcohol, or other
volatile fluids, which may cause damage or
discoloration.
• Do not use hot water over 104
04. Sleep Mode Indicator
01 02 03 04 05
Indicates whether Sleep Mode is enabled or disabled.
05. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
06. Ultrafine Dust Density Indicator
• The LED Ultrafine Dust Density Indicator
displays the quality of air in your environment.
08
When the unit senses an air quality change,
it automatically adjusts the LED Indicator to
display the respective air quality.
• LED Numeric Smart Sensor displays air quality
measures fine particles down to 2.5 microns.
07. Mode Indicator
Indicates whether Auto & Fan Speed Mode is
enabled or disabled.
08. PlasmaWave
Indicates whether PlasmaWave
04. PlasmaWave
• Turns the PlasmaWave
• When the unit is running, you may hear a
chirping or buzzing sound. The sound is from
large particles passing through PlasmaWave
03 04 05 06 07
is normal and does not signify product failure.
05. Timer Button
• A quick press of the Timer Button will set the timer.
• The timer can be set in hours, in the order of
0(default)
• The amount of time, in hours, is indicated on the
front numeric display.
• Timer Indicator displays when timer is in use.
06. Fan Speed Button
• Enables manual operation of the unit's fan
speeds.
• Press to cycle through and set the desired fan
speed (Auto, Low, Medium, High, Turbo).
• Auto Mode:
- Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan
speed will adjust to low when air quality is good,
medium when fair, and to high when poor.
Sleep Mode. 07. Power Button
→
• Turns the unit on or off.
• During the first 30 seconds of powering up, the
Air Quality Indicator will cycle through Blue,
Green, Amber and Red colors. Smart Sensor takes
approximately 4 minutes to detect the air quality in
the environment before normal operation begins.
Cleaning the Exterior & Interior:
1.
Open the front panel and clean the interior
with a vacuum cleaner.
• A handheld vacuum or hose attachment will
2.
Dampen a cloth with room temperature water
and wipe down the interior and exterior of the
unit.
3.
Wipe the unit down with a clean, dry cloth.
• Ensure no moisture remains before plugging
* For optimal performance, clean every 1 - 2 months.
1.
Use a damp cotton
swab to wipe the Cleaning the Top:
lens and intake area
of the Smart Sensor.
• To clean the sensor
area, use only
water. Do not use
volatile substances
such as alcohol or
acetone.
• When cleaning the unit, always unplug the
power cord first and then wait until the unit
has cooled down.
o
F.
• Never disassemble, repair, or modify this unit
yourself.
• Do not use flammable sprays or liquid
detergents.
• Do not allow children to clean or maintain the
unit.
• Before cleaning or maintaining, ensure unit is
unplugged.
®
Indicator
® is enabled or disabled.
® Operation Button
®
feature on/off.
®
, it
1 2 4 8 12 0.
→ → → → → →
work best.
the unit back in.
1.
Grasp the back of
the grill and lift up.
2.
Wipe the interior
and grill with a soft,
damp cloth.
3.
To reinstall the grill,
insert the two front
tabs of the grill into
the corresponding
holes in the product.
N O T I C E
