EN - ENGLISH

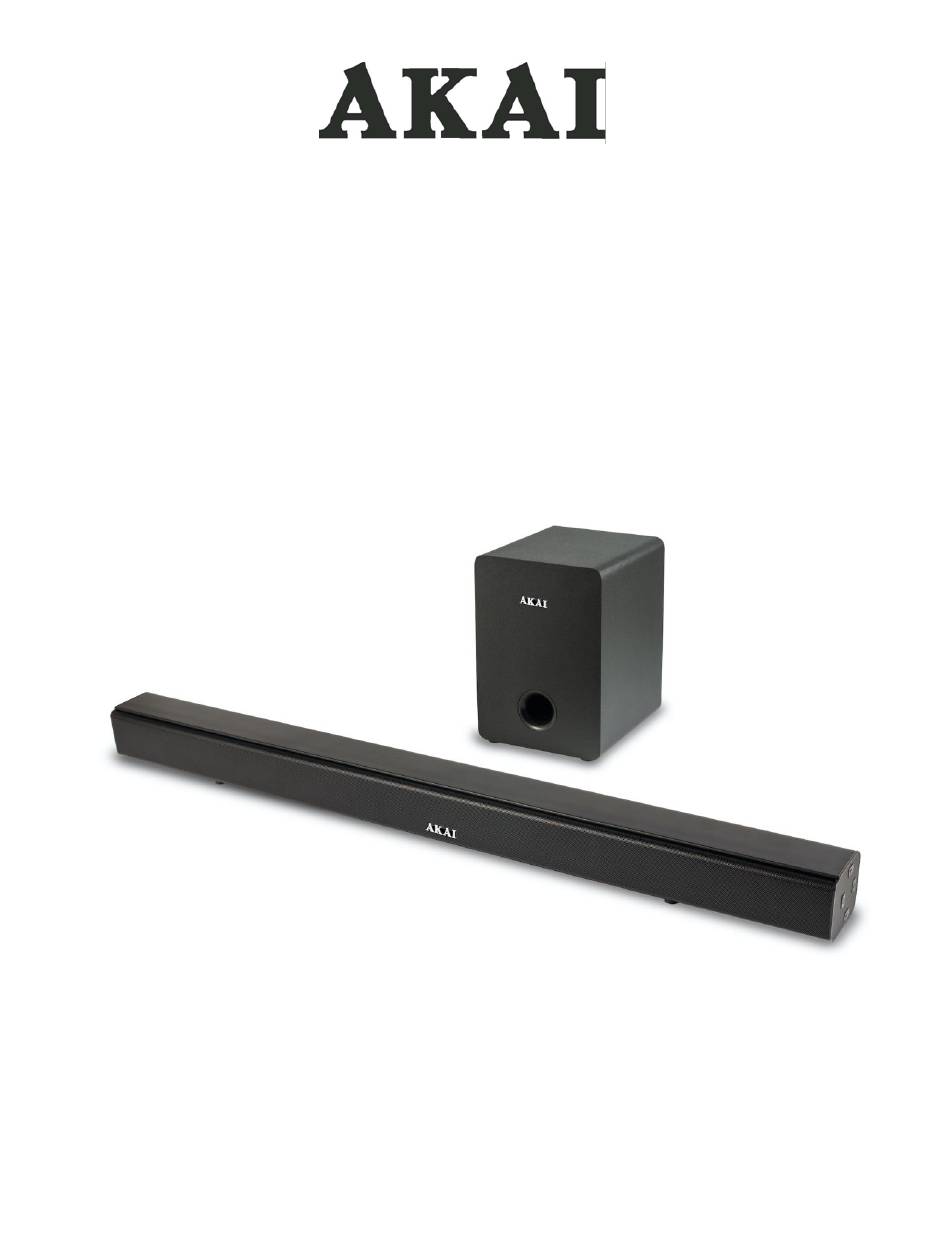

2.1 Channel Soundbar
Model： ASB-6WSW
User Manual
Thank you for purchasing this soundbar. Please read this instruction manual carefully before using this product to ensure
proper use. Keep this manual in a safe place for future reference.
A compact yet powerful Bluetooth soundbar with sleek looks and excellent audio response. 4
inbuilt speakers and 2 passive radiators with 1 wireless subwoofer provide clarity across a
Advertisement
Related Manuals for Akai ASB-6WSW
Summary of Contents for Akai ASB-6WSW
- Page 1 EN - ENGLISH 2.1 Channel Soundbar Model： ASB-6WSW User Manual Thank you for purchasing this soundbar. Please read this instruction manual carefully before using this product to ensure proper use. Keep this manual in a safe place for future reference.
- Page 2 EN - ENGLISH broad frequency range, with crisp highs and deep bass that belie the unit’s size. An integral USB port enables playback of MP3 files directly from compatible media, with further flexible input options including Aux, Bluetooth, HDMI(ARC), Optical, FM. A convenient and cost- effective TV audio upgrade that doesn’t compromise on performance.
- Page 3 EN - ENGLISH 1. USB IN: Use to connect a flash drive for direct MP3 playback (FAT32 format and 64GB max). 2. OPTICAL IN: Use to connect compatible devices using an optical cable (not provided). 3.HDMI(ARC): Use to connect compatible devices using a HDMI cable (not provided). 4.
- Page 4 EN - ENGLISH Subwoofer connected with Soundbar Method Please long press the button "Play/pause" on the remote to choose the mode CH1 or CH2 then the LED display will show it accordingly. Meantime, short press the button "Pair" on the remote, blue light blink once means that CH1 signal from the main unit is receiving by wireless subwoofer, and blink twice means the CH2 signal from main unit is receiving by wireless subwoofer.
- Page 5 EN - ENGLISH • Bluetooth: Press the BT button on the remote control or repeatedly pressing the MODE button on the soundbar control panel until BT is shown on the LED display. The LED display will flash to indicate that the soundbar is in Bluetooth pairing mode. Ensure that the device you wish to connect is also in pairing mode and search for ASB-6SDW in its device list.
-
Page 6: Disposal Of Electrical And Electronic Equipment
EN - ENGLISH • Wall mounting: The soundbar has two keyhole slots on the back to enable wall mounting, using the fixings provided or a compatible soundbar bracket (not supplied). 1. Firmly fix 1 dowel into each hole in the wall if necessary. Solid wall (i.e. - Page 7 EN - ENGLISH - Access the website: www.mmediu.ro - Request additional information from the store where you purchased the product.
-
Page 8: Manualul Utilizatorului
RO - ROMANA Soundbar 2.1 CH Model： ASB-6WSW Manualul utilizatorului Multumim ca ati achizitionat acest produs. Va rugam sa cititi cu atentie manualul de instructiuni. Pastrati acest manual intr-un loc sigur, pentru referinte ulterioare. Un soundbar compact dar puternic, cu aspect elegant si cu raspuns audio excelent. Cele 4... - Page 9 RO - ROMANA intr-o gama larga de frecvente cu sunete inalte si bass profund care contrazic marimea aparatului. Un port USB integral permite redarea fisierelor MP3 direct din sistemul media compatibil, cu optiuni flexibile de intrare care includ Aux, Bluetooth, HDMI (ARC), Optic, FM.
- Page 10 RO - ROMANA 1. INTRARE USB: Folositi pentru a conecta un stick pentru redare directa a fisierelor MP3 (format FAT32 si maxim 64GB). 2. INTRARE OPTICA: Folositi pentru conectare cu dispozitive compatibile, folosind un cablu optic (nu este furnizat). 3. HDMI(ARC): Folositi pentru conectare cu dispozitive compatibile, folosind un cablu HDMI (nu este furnizat).
- Page 11 RO - ROMANA Buton Functie Pornire/oprire MUTE Fara sonor sau reluare sonor Comuta intre moduri diferite Marire volum Micsorare volum USB si BT anterior Pauza/Redare USB si BT urmator Selectare efecte muzica Selectare efecte film Comutare in modul BT Repetare redare USB PORNIRE/OPRIRE 3D Metoda de conectare a Subwoofer-ului cu Soundbar-ul Apasati lung butonul "Play/pause"...
- Page 12 Bluetooth. Asigurati-va ca dispozitivul pe care doriti sa-l conectati se afla, de asemenea, in modul de imperechere si cautati ASB-6WSW in lista de pe dispozitiv. Cand cele doua dispozitive sunt conectate, afisajul LED de pe soundbar nu va mai licari si va ramane aprins constant.
- Page 13 RO - ROMANA butonul Play/Pause de pe telecomanda sau de pe soundbar. Soundbar-ul va scana frecventele FM, memorand automat orice posturi cu un semnal sufficient de puternic. Puteti sa derulati inainte si inapoi prin posturile memorate, folosind butoanele “anterior” sau “urmator” de pe telecomanda sau de pe soundbar.
- Page 14 RO - ROMANA Acest simbol prezent pe produs sau pe ambalaj semnifică faptul că produsul respectiv nu trebuie tratat ca un deşeu menajer obişnuit. Nu aruncaţi aparatul la gunoiul menajer la sfârşitul duratei de funcţionare, ci duceţi-l la un centru de colectare autorizat pentru reciclare. În acest fel veţi ajuta la protejarea mediului înconjurător şi veţi putea împiedica eventualele consecinţe negative pe care le-ar avea asupra mediului înconjurător şi sănătăţii umane.
- Page 15 RO - ROMANA EU Declaration of Conformity We, INTERVISION TRADING RO SRL, declare under sole responsibility that the following products: Brand name:AKAI Type: SOUNDBAR WITH ACTIVE SUBWOOFER Descriptions: ASB-6WSW to which this declaration related is in conformity with the essential requirements of the...
- Page 16 Noi, INTERVISION TRADING RO SRL, declaram pe propria raspundere ca urmatoarele produse: Marca: AKAI Model: ASB-6WSW Descriere: BARA DE SUNET CU SUBWOOFER ACTIV la care se refera aceasta declaratie, respecta cerintele de protectie cuprinse in urmatoarele standarde si norme de siguranta ale Consiliului Comunitatilor Europene: EUROPEAN COMMUNITY DIRECTIVE 2014/35/EU...
