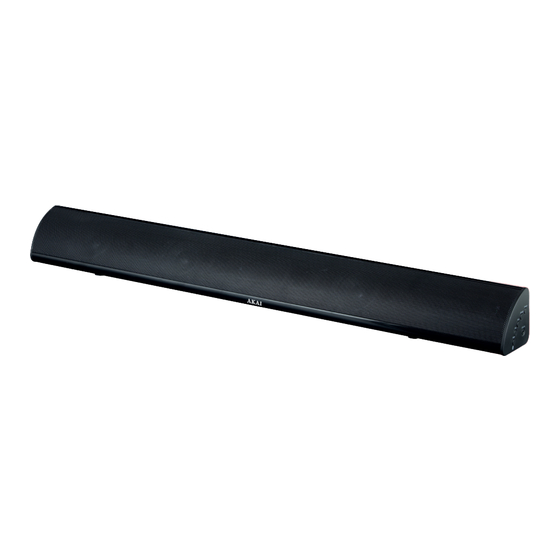

Akai A58063 Instruction Manual

40w soundbar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
40W SOUNDBAR
MODEL: A58063

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A58063 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akai A58063

Summary of Contents for Akai A58063

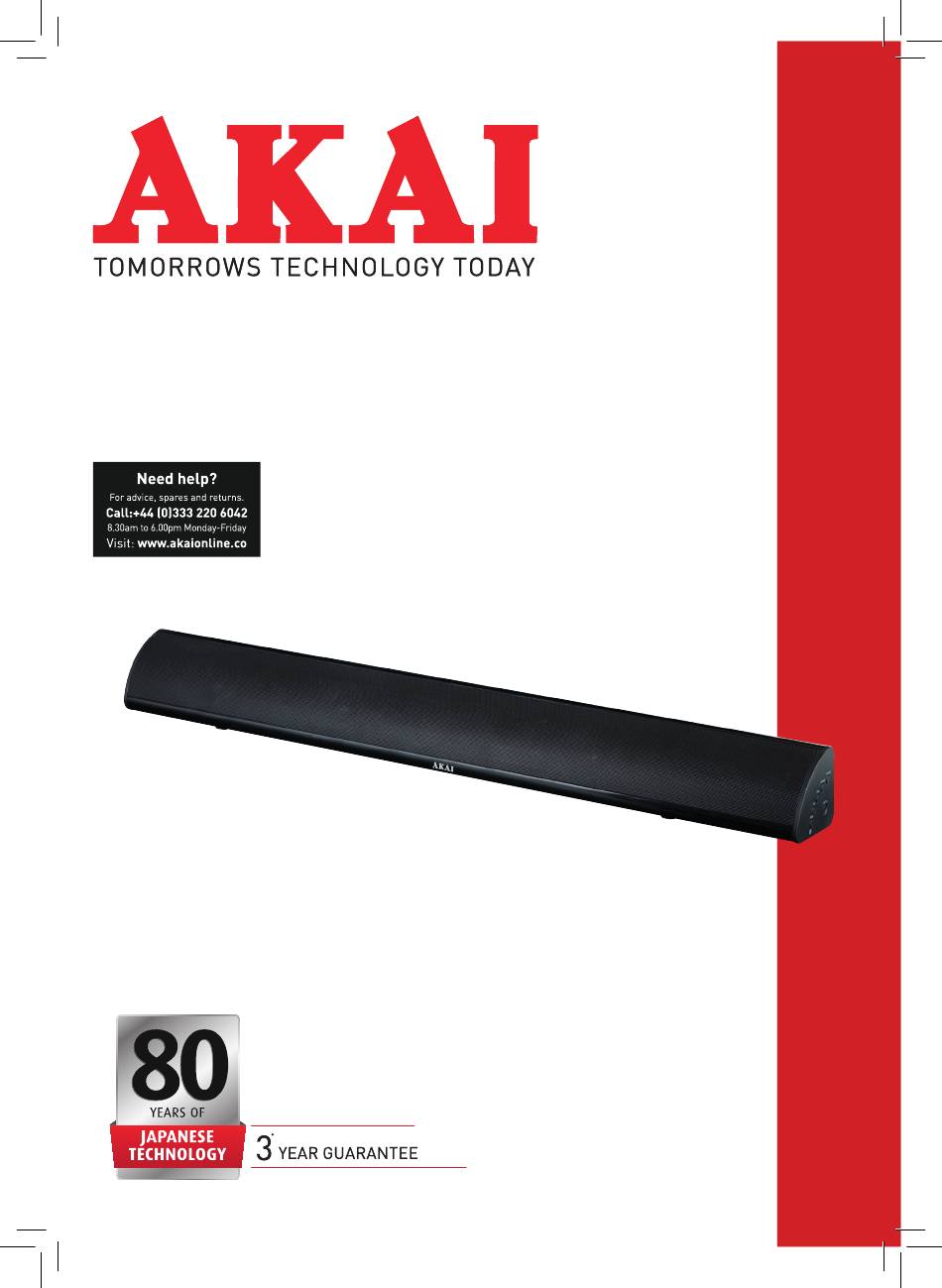

  • Page 1 INSTRUCTION MANUAL 40W SOUNDBAR MODEL: A58063...

  • Page 2: Technical Data

    TECHNICAL DATA MODEL NO: A58063 POWER SUPPLY: INPUT: 100-240V ~50/60HZ OUTPUT: DC 18V 1.5A (USB PORT) SPEAKER UNITS: 2 X 3” UNITS POWER OUTPUT: 2 X 20W DECLARATION OF CONFORMITY We declare that this product conforms to the following product legislation in accordance...

  • Page 3: Safety Information

    IMPORTANT INFORMATION - RETAIN FOR FUTURE USE SAFETY INFORMATION Important safety instructions – read carefully before use. It is important that this instruction manual should be retained with the appliance for future reference. These warnings have been provided in the interest of safety. You MUST read them carefully before installation or use.
  • Page 4 IMPORTANT INFORMATION - RETAIN FOR FUTURE USE • Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point.

  • Page 5: Features And Controls

    FEATURES AND CONTROLS IN THE BOX INSTRUCTION MANUAL 3.5MM TO 3.5MM AUDIO CABLE REMOTE CONTROL POWER ADAPTER RCA STEREO AUDIO CABLE WALL MOUNTING BRACKETS SIDE PANEL POWER ON/OFF SOURCE SELECTION LINE IN VOLUME UP VOLUME DOWN BLUETOOTH PAIRING REMOTE CONTROL POWER BUTTON BLUETOOTH INPUT BUTTON MUSIC/MOVIE/DIALOG BUTTONS.

  • Page 6: Using Your Appliance

    USING YOUR APPLIANCE BEFORE YOUR FIRST USE: Remove the product from the box. Remove all packaging from the product. Please retain all packaging after you have checked and counted all the parts and the contents against the list. Dispose of the packaging in a responsible manner. CONNECTING TO THE MAINS SUPPLY: •...

  • Page 7: Setting Up Your Appliance

    CONNECTIONS: AUX (L/R) Socket Optical Socket DC IN (18V) Socket SETTING UP YOUR APPLIANCE: When placing the Sound Bar on an entertainment centre, bookshelf or any type of enclosed space, be sure to allow space around the unit for ventilation. If the unit is enclosed in a tight space without ventilation, heat generated from the unit could produce a potential heat hazard.

  • Page 8: Indicator Light Status

    USING YOUR APPLIANCE INDICATOR LIGHT STATUS: STATUS INDICATOR LIGHTS Power Off Optical Mode Yellow AUX Mode White Line In Mode Green Bluetooth Ready Flashing Blue Bluetooth Connected Blue USING THE AUX CONNECTION: Use the RCA Stereo Audio Cable to connect the Soundbar to the TV’s stereo RCA [L/R] socket.

  • Page 9: Using The Optical Input

    USING THE OPTICAL INPUT: You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (not included). Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the speaker bar. Press the POWER button on side panel or POWER button directly on the remote control to switch on the unit.

  • Page 10: Using The Mp3 Link Connection (Line In)

    Select and press the BT button directly on the remote control or press the SOURCE button repeatedly to enter Bluetooth mode, indicated by a flashing blue light. Using the native controls on your Bluetooth device, select ‘A58063’ in your Bluetooth settings to pair.

  • Page 11: Wall Mounting Your Soundbar

    WALL MOUNTING YOUR SOUNDBAR: REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT: Remove the battery compartment located on the back of the remote control The unit comes as standard with a battery installed. To avoid discharging it, it is locked with a plastic. Remove the tape to activate the battery. If you need to replace the battery, insert a CR2025 3V battery, observing the correct polarity.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE/SOLUTIONS No power function. Check whether the power is switched on or off at the wall. Check whether the power adaptor is properly connected to the power outlet. No sound. Checks whether unit is set to MUTE. Check whether MODE is correctly selected.

  • Page 13: Disposal Of The Unit

    RECYCLING DISPOSAL OF THE UNIT Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items.
  • Page 14 NOTES...
  • Page 16 Call:+44 (0)333 220 6042 8.30am to 6.00pm Monday-Friday Visit: www.akaionline.co Distributed throughout the UK by RK Wholesale LTD *REGISTER YOUR PRODUCT ONLINE AT WWW.AKAIONLINE.CO AND ENJOY 3 YEARS PEACE OF MIND AKAI CUSTOMER SUPPORT TEAM +44 (0) 333 220 6042 0418.V1...
