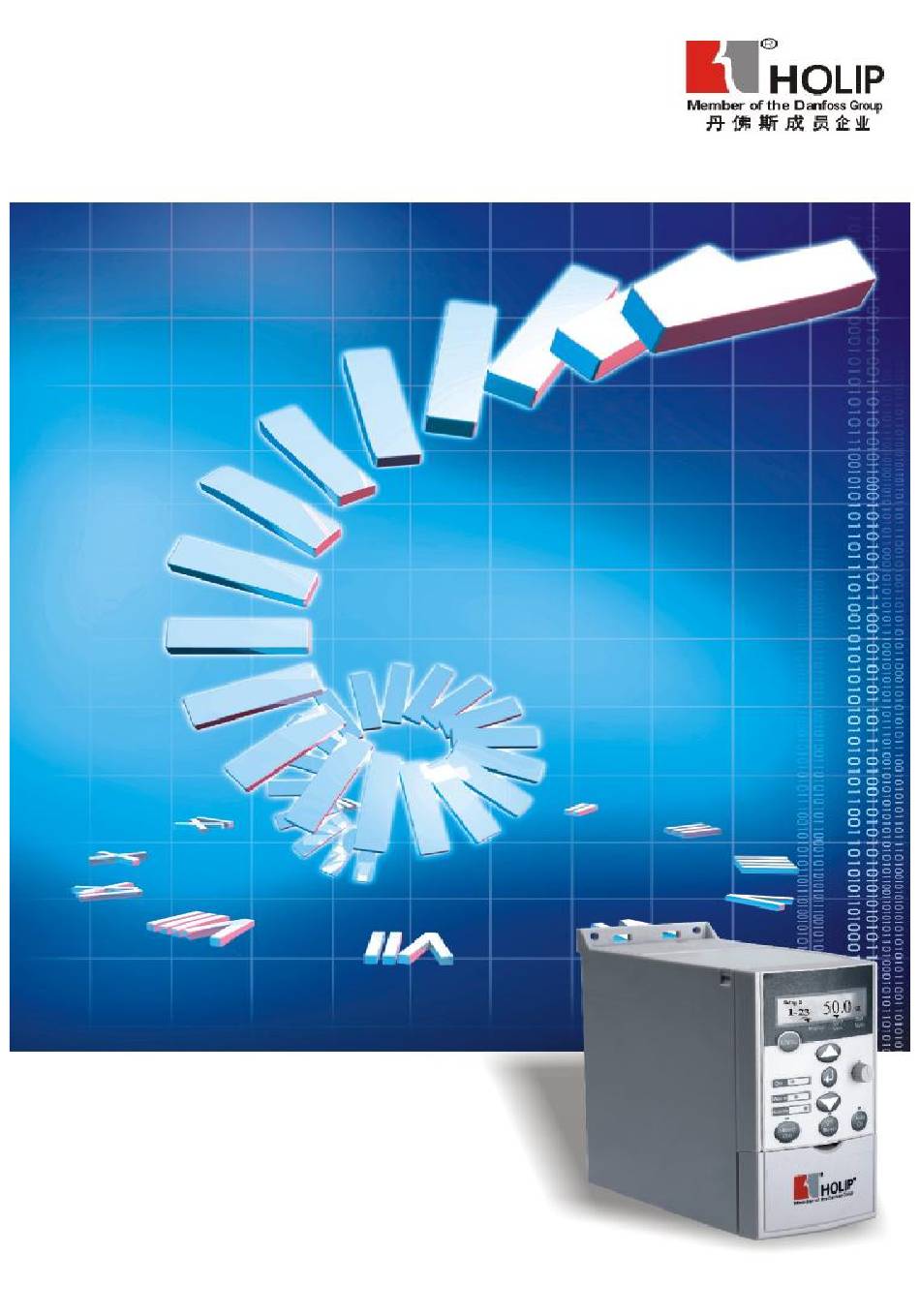

- Page 1 Inverter HLP-SV Series User’s Manual...
- Page 2 Inverter Zhejiang HOLIP Electronic Technology co.,Ltd ADD: Section C, 7/F, Wuchan Building, N .445,Kaixuan Road, Hangzhou TEL: 0571-86772676 FAX: 0571-86772912 Http: //www.holip.com...
- Page 3 2. Periodical Inspection and Maintenance items ............ 80 3. Fault Indication and Troubleshooting ............... 80 IX. Appendices ................82 Appendix 1: Mounting Dimensions of HOLIP SV inverters ..........82 Appendix 2: Mounting Dimensions of LCP Digital operator ........... 83 Appendix 3:User’s feedback ....................84...
- Page 4 Inverter Ⅰ. Introduction Thank you for purchasing and using the general-purpose inverter of HLP –SV series of multi-functions and high performance. Please read carefully the operation manual before putting the inverter to use so as to correctly install and operate the inverter, give full play to its functions and ensure the safety. Please keep the operation manual handy for future reference, maintenance, inspection and repair.
- Page 5 If there is anything abnormal please notify the dealer or the relevant people of our company. Check if the inverter has got any damage or deformation during the transportation and handling. Check if there is one piece of HLP-SV series inverter and one copy of the instruction manual available when unpacking it.
- Page 6 Inverter Model：HLP SV 0D75 23 A Software Version: A Voltage Rating：21: 1-Phase AC 220V 23: 3-Phase AC 220V 43: 3-Phase AC 380V Inverter Capacity:0 D 75 means 0.75KW Serial No:SV means SV series Trade Mark...
- Page 7 Inverter •. Safety Precautions 1. Before the Power-up Caution Check to be sure that the voltage of the main circuit AC power supply matches the input voltage of the inverter. The symbol, E , represents ground terminals. Be sure to make correct ground connection of the earth terminals of the motor and the inverter for safety.
- Page 8 Inverter it is forbidden to install any capacitor for improvement of power factor or any varistor against thunder at the output. Otherwise it will cause malfunctions, tripping protection and damages of components of the inverter. Please remove them as shown in the below diagram. It will affect the service life of the inverter if a contact is connected to the front end of input of the inverter to control its starts and stops.
- Page 9 Inverter Caution Touching the electrical parts may be fatal - even after the equipment has been disconnected from mains. Also make sure that other voltage inputs have been disconnected, (linkage of DC intermediate circuit). Be aware that there may be high voltage on the DC link even when the LEDs are turned off. Before touching any potentially live parts of the VLT Micro, wait at least as follows: 200 - 240 V, 0.4 –...
- Page 10 Inverter •. Standards and Specifications 1. Particular Specifications Output Inverter Suitable Power Product Order Model Input Voltage Capacity Current Motor (KW) (KVA) (KW) 30002101 HLPSV00D421A 1×200-240V 50/60Hz 30002102 HLPSV0D7521A 1×200-240V 50/60Hz 0.75 0.75 30002103 HLPSV01D521A 1×200-240V 50/60Hz HLPSV02D221A 1×200-240V 50/60Hz HLPSV03D721A 1×200-240V 50/60Hz 30002301...
