Summary of Contents for Holip HLP-P Series
- Page 4 HLP-P Inverters Contents Ⅰ . Introduction 1. Checks upon Delivery 2. Nameplate Description of HLP Series Inverter Ⅱ . Safety Precautions 1. Before the Power-up 2. During the Power-up 3.
- Page 5 HLP-P Inverters 2.Description of the panel type 3.List of the panel used in inverter 4.Description of Indicator Lamp Status 5. Description of Operation Examples Ⅶ . Commissioning 1. Important Checks before the Commissioning 2. Commissioning Methods Ⅷ . Function List Ⅸ...
- Page 6 Ⅰ. Introduction Thank you for purchasing and using the general-purpose inverter of HLP-P series of multi-functions and high performance. Please read carefully the operation manual before putting the inverter to use so as to correctly install and operate the inverter, give full play to its functions and ensure the safety.
- Page 7 HLP-P Inverters Caution ● Do not make any voltage-withstanding test with any component inside the inverter. These semi-conductor parts are subject to the damage of high voltage. ● Never connect the AC main circuit power supply to the output terminals U.V W of the inverter. ●...

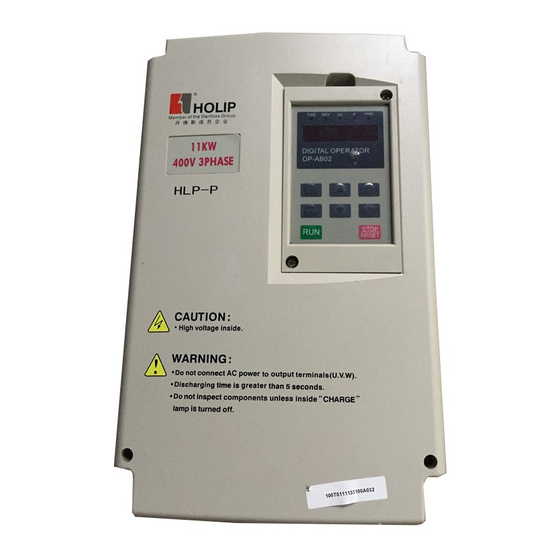

- Page 8 INPUT ： 3PH380V50Hz OUTPUT ： 3PH380V17.5A7.5KW Freq-Range: 0.1 ～ 400Hz HOLIP ELECTRONICS CO., LTD. Model： HLP P 07D5 43 B Hardware Version Voltage Rating, 43 means 3-phase 380V Inverter Capacity, 07D5 means 7.5KW Serial No., P means P series Trade Mark...
- Page 9 HLP-P Inverters Ⅱ. Safety Precautions 1. Before the Power-up Caution ● Check to be sure that the voltage of the main circuit AC power supply matches the input voltage of the inverter. ● The symbol, E , represents ground terminals. Be sure to make correct ground connection of the earth terminals of the motor and the inverter for safety.
- Page 10 HLP-P Inverters one inverter in the same enclosure so that the temperature inside the enclosure be kept below 40℃ to avoid overheat or the risk of fire. ● Be su re to t u r n off the power supply before dissembling or assembling the operation keypanel and fixing the front cover to avoid bad contact causing faults or non-display of the operator.
