PSI Woodworking Products PKFIBXX Instructions

#PKFIBXX
Refillable Fiber Tip Pen Kit

Kit Features

• Cap threads over tip for a tight seal
• Cap posts on back of pen via pressure fi t
• Easy to Turn with Straight Tube
• Minimal Parts--easy to assemble
• Available in multiple fi nishes
• Overall Length: 5-7/32"
• Use fountain pen ink for multiple colors
• Replacement Tip Assemble
2 pack of tips #PKFIBTIP

Preparing the Blank:

• Cut blank to the length of the tube, adding 1/16" for squaring off.
• Drill 10mm hole lengthwise through the blank.
• Spread glue over tube, insert the tube into the blank with a twisting mo-
tion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• When the glue is dry, square the ends of the blanks, making sure the trimmed ends are 90º to the tube. Use a
10mm Barrel Trimmer or a pen blank squaring jig with 10mm sleeve on a disc sander. Take the excess material
down flush to the ends of the tubes. Do not trim past the end of the tube since this may interfere with assembly or
the operation of the Reservoir Pump. Use a barrel trimmer to clean the inside of the tube.
Headstock
End Bushing

Turning the Blank:

• Mount the bushings and blanks according to diagram B.
• When using Mandrel Saver, there is no need for extra spacer bushings or the
knurled nut. Slide and lock tailstock directly against bushings and tighten quill
until blank and bushings are secure.
• To use Knurled Nut Setup (right), add spacer bushings until past the threads on
the end of the Mandrel Shaft.
• Thread on the Knurled Nut and hand tighten to hold all components in place.
• Slide the Tailstock up snugly against the Mandrel shaft, inserting the live center
point into the Mandrel dimple.
• Lock Tailstock and hand tighten the quill adjustment with wheel to steady the
mandrel. Do not over-tighten, it could damage mandrel shaft.
• Using sharp tools, turn the blank down close to the bushing diameter. Turn the
barrel straight or to a profile of your choice.
• Sand the blank down to be flush with the bushings, gradually increasing
sandpaper grits.
• Finish the barrel using your choice of polish. Allow sufficient time for the polish
to cure—refer to polish manufacturer's instructions.

Required Accessories

• 7mm Pen Mandrel
• Drill Bit: #PK10-10 for Wood, #PK-10MMSG for Plastic
• Bushing Set(2pc): #PKCP7000BU
• Barrel Trimming: PKTRIM10 or 10mm sleeve from #PKTRIMSET Barrel Trimming: PKTRIM10 or 10mm sleeve from #PKTRIMSET
with squaring jig on disc sander
• Live Tailstock or Mandrel Saver
• 2 part Epoxy or Thick CA (Cyanoacrylate) Glue
• Pen Blank Minimum Size: 3/4" x 3/4" x 3-1/16"L

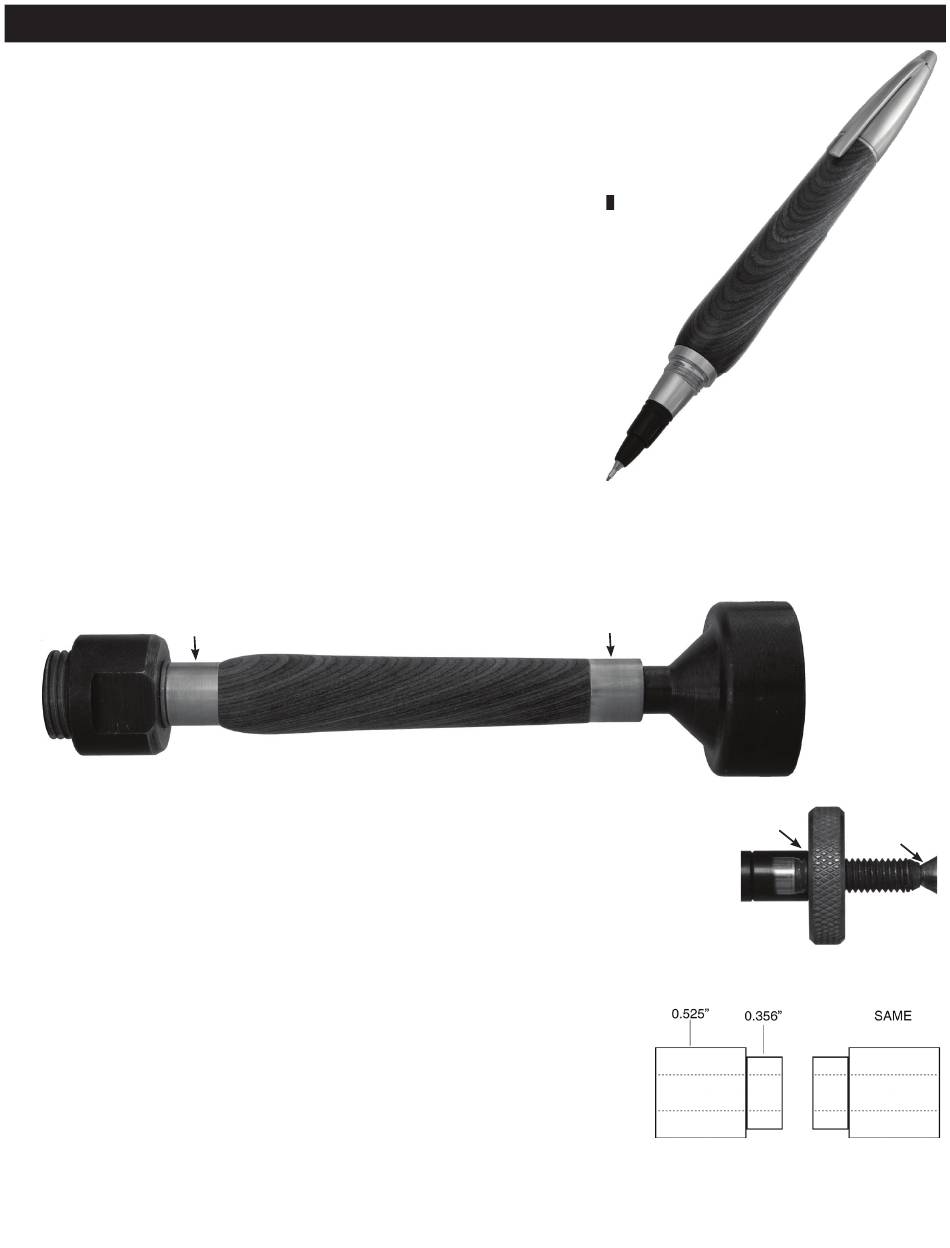

DIAGRAM B / TURNING THE BLANK
Turn Blank to a profi le of your choice
PSI Woodworking Products
End Bushing
Add spacer bushings past
the threads
Diagram C / Bushing #PKCP7000BU
Mandrel Saver
Tailstock
Knurled Nut Setup
Live Center
