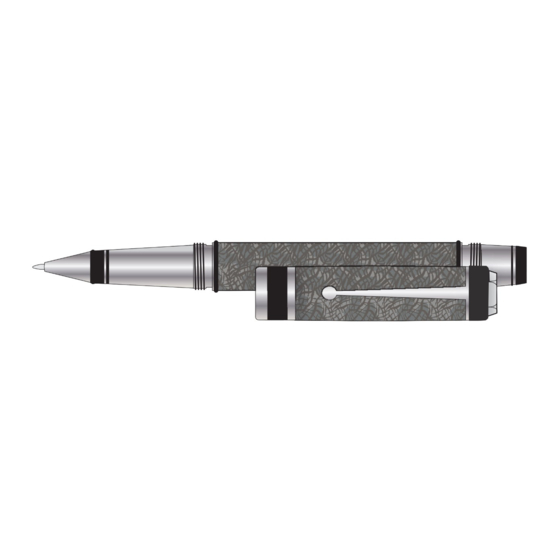

Capri Compact Fountain Pen and Roller Ball Pen—Instructions
KIT FEATURES:
• Heavy 24kt gold plating w/epoxy coating.
• Pen designed for balance, style and performance.
• Smooth quarter-turn screw cap front and back
• High quality fountain pen nib with iridium point
• Overall length: 4-1/2" closed
• High quality roller tip gel ink refill
PREPARING THE BLANKS FOR TURNING
• Cut 3/4" square blanks to the length of the brass tubes (add 1/16" for squaring off)
• Drill a 10mm center hole lengthwise through each blank
• Spread glue over the tubes. Insert the tubes into each blank with a twisting motion to spread the glue evenly inside.
Center each tube lengthwise into the blank.
• When glue dries, square the ends of the blanks. Use a 10mm barrel trimmer to trim the wood down flush with the end of the brass tubes.
TURNING THE BLANKS
• Place three or four 7mm spacer bushings on the mandrel shaf t. Insert the cap bushing,wide end first. Place the (CAP) upper blank, follow with the
center bushing, wide end first. Insert the (TIP) lower blank on next, follow with the tip bushing. Fill in the space to the threads. Screw on the lock nut.
Bring the tail stock in, tighten the lock nut.
• Lock the tailstock in place (do not over tighten,it could damage the mandrel).
• Turn the wood down, flush with the bushings using lathe chisels and gradual higher grits of abrasive material.
• Sand both blanks then finish the blanks with your choice of polish and waxes.
Fountain Pen Nib
Center Band
Roller Ball Pen Tip
Center Band Coupler Upper Tube (Roller Ball Pen)
Headstock
7mm Spacer
Bushings
P

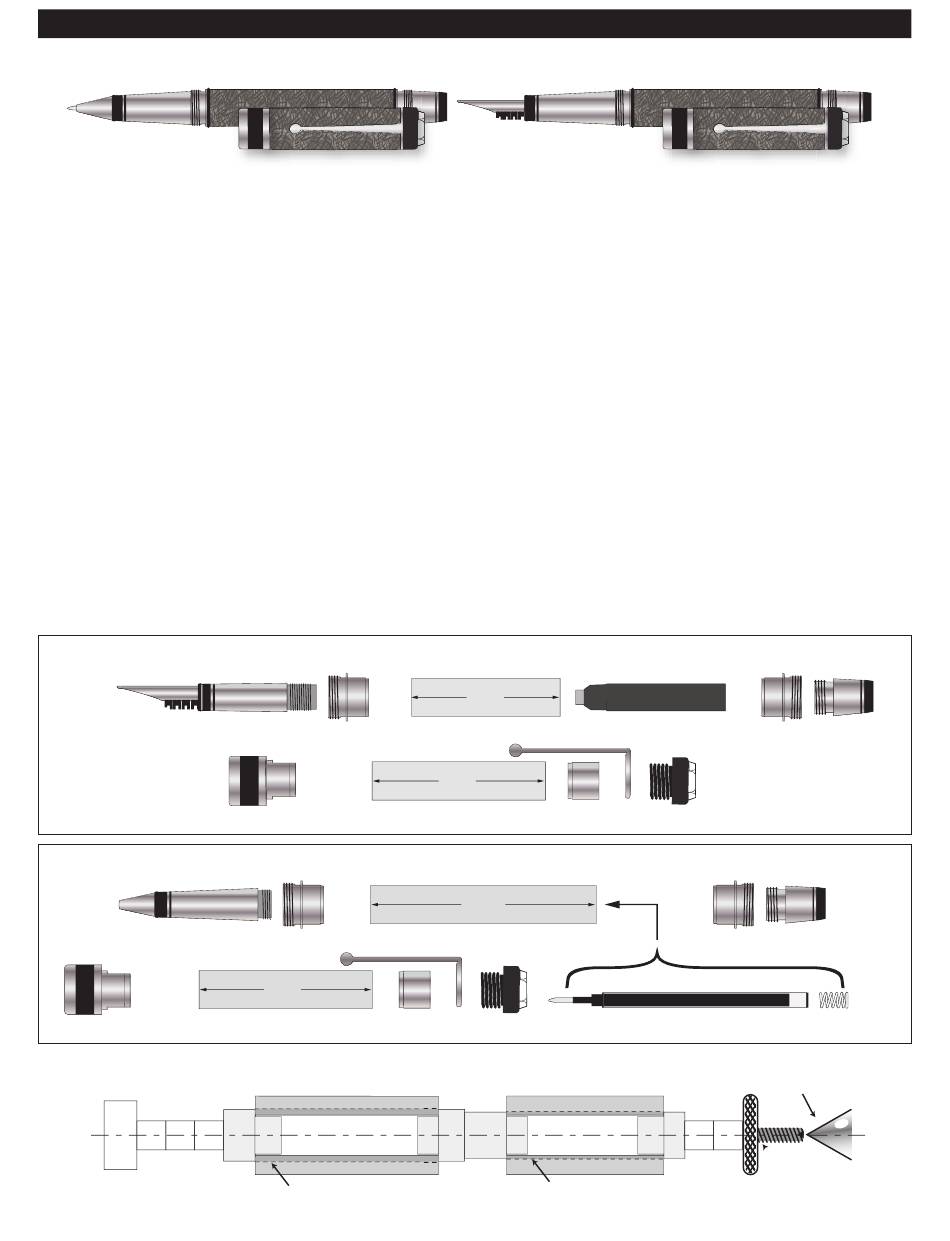

DIAGRAM A1: Fountain Pen Parts
Coupler
Coupler
DIAGRAM A2: Roller Ball Pen Parts
Coupler
1-5/8"
Cap Nut
DIAGRAM B • Turning the Blanks
U p p r e B r a l e r w h t i u T e b
Cap
F i n i h s d e B r a l e r
Bushing
REQUIRED ACCESSORIES:
• 7mm, long mandrel
• #PKPAR1O-B2—3-piece bushing set
• #PK10-10—10mm drill bit
• #PKTRIMKIT—10mm barrel trimmer
• 2-part epoxy glue or Insta-Cure (cyanoacrylate) glue
1-1/2"
Lower Tube (Fountain Pen)
1-5/8"
Upper Tube (Fountain Pen) Cap Nut
2-9/32"
Lower Tube (Roller Ball Pen)
Clip Upper Cap
o L w r e B r a l e r
Center
F i n i h s
Bushing
P I S W o d o
Fountain Pen Ink Cartridge Coupler
Clip Upper Cap
Coupler
Roller Ball Pen Refill
w h t i u T e b Lock Nut
7mm
Tip
Spacer
d e B r a l e r
Bushing
Bushings
w r o i k g n r P d o c u s t
Lower Cap
Lower Cap
Refill Spring
Live
Center
Mandrel
