Kohler FAMILY CARE K-706264T-FM-SHP Installation Instructions

BEFORE YOU BEGIN
•
All information is based on the latest product information
available at the time of publication. Kohler China Ltd.
reserves the right to make changes in product
characteristics, packaging, or availability at any time
without notice.
•
These instructions contain important care, cleaning, and
warranty information-please leave these instructions for
the consumer.
•
Make sure that the bath and the finished wall material are
completely and correctly installed prior to installing your
shower door. Prepare waterproof layer to wall and floor of
the showering area. It is not allowed for any presence of
electric switches and sockets. Make sure the floor drain
runs smoothly.
•
Before starting the door installation, lay out and identify all
the parts. Use the exploded view illustrated on page 2 for
reference.
•
For the installation method of customized shower with
different dimensions, please refer to this instructions.
•
The product complies with QB 2584-2007.
CAUTION: Risk of injury or product damage.
Tempered glass cannot be cut, drilled or knocked by
hard object. Make sure corner area of the glass
refraining from knocking so as to cause personal injury
due to broken glass.
ATTENTION: Please install this door on Kohler receptors or
curbs(Not included). If the curb is not Kohler-branded, please
note its top width should be more than 80mm.
IMPORTANT: The shower door requires a flat vertical
finished wall. The squareness of the wall is recommended no
more than 3 mm/m. KOHLER Company won't take
responsibility of the installation quality.
Do not use the enclosure for at least 24 hours.
安装后 24 小时内请勿使用淋浴房。
24hrs
ZHONGSHAN KOHLER SHOWER CO., LTD.
DEVELOPMENT ZONE, ZHONGSHAN, GUANGDONG, CHINA
中山科勒卫浴有限公司 广东省中山市中山火炬开发区兴业路 13-1 号 邮编： 528437
1386867-T01-A
安装之前
说明书中所有的资料是按最新出版的产品资料编写而成。 科
•
勒中国有限公司保留任何时候无须通知即可改变产品特性、
包装或产品可供类型的权利。
说明书包括重要的安装、 清洁及保养方面的内容， 请把这些
•
资料交给用户阅读， 保管。
确保在安装淋浴房之前已经完整正确地安装了浴室和完工
•
墙面材料。 淋浴区墙地面应做防水处理， 并不得布置有电器
开关、 插座。 确保地面排水通畅。
在进行淋浴房安装之前， 请拿出、 排列并确认所有的零部件。
•
请参考第 2 页上所示的分解图。
对尺寸与本标准产品不同的定制淋浴房， 参照本说明书进行
•
安装。
本产品符合 QB 2584-2007。
•
警告： 可能有人员伤害或者产品损坏的危险。
钢化玻璃不能进行切割， 钻孔或硬物敲击。 搬移或安装过
程中， 小心确保玻璃边、 角部位不受撞击， 以防爆裂伤人。
建议： 将本产品安装在科勒淋浴盆或挡水条上 （需另行购买） 。
如自备挡水条， 建议顶面宽度尺寸大于 80mm。
重要事项： 淋浴房需要安装在平坦垂直的墙面上。 墙面的垂直度推
荐在正负 3mm/m 以内。 如果超出此范围， 科勒公司将不保证淋浴
房的完美使用。

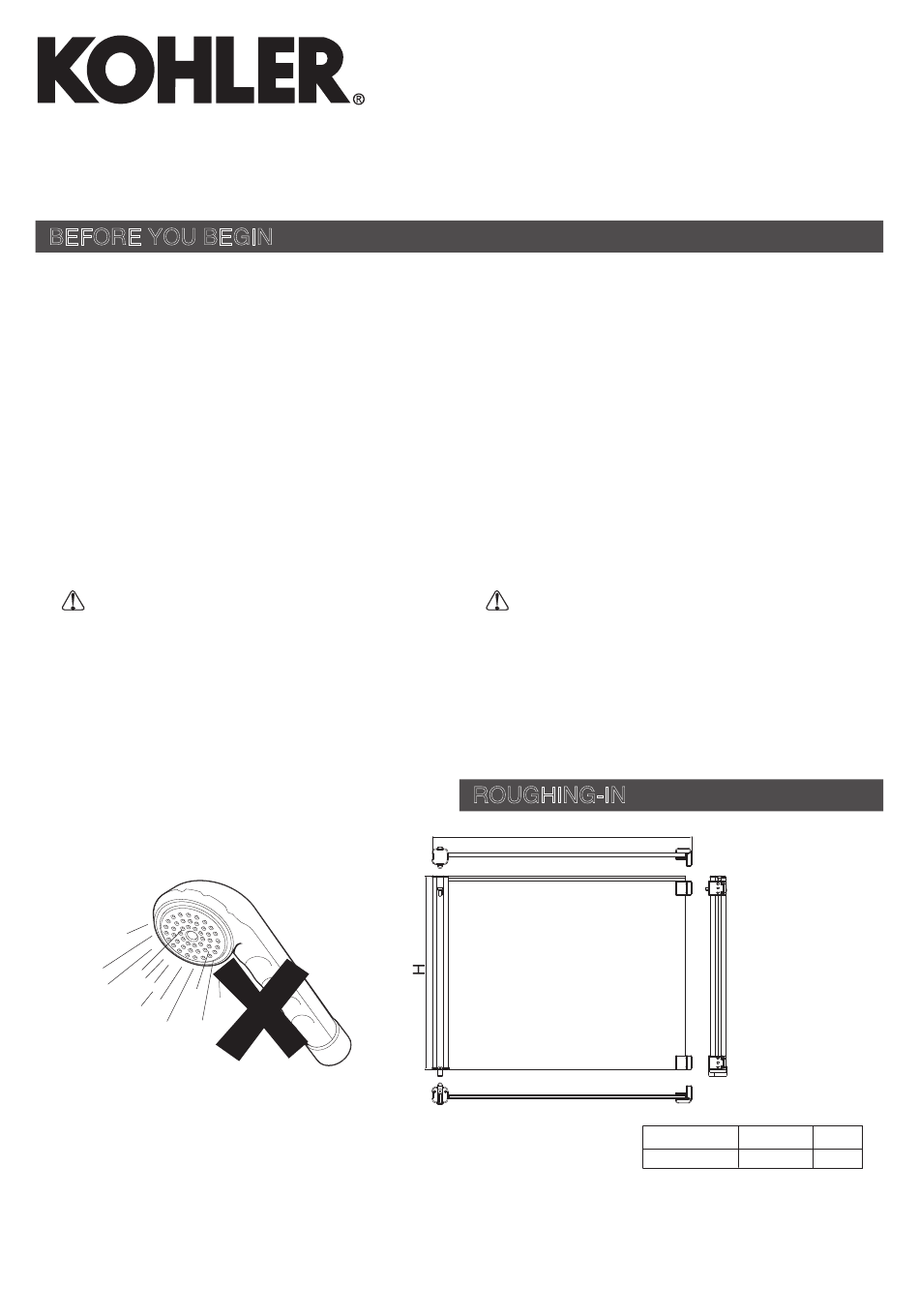

ROUGHING-IN
B
NO13-1, XINGYE ROAD, ZHONGSHAN TORCH
POST CODE: 528437
-1- © Copyright Kohler China Investment Co., Ltd. 2019
© 版权为科勒 （中国） 投资有限公司所有 2019
FAMILY CARE
INSTALLATION INSTRUCTIONS
安装说明书
HALF DOOR, 10mm
半扇门， 10mm防爆贴膜玻璃
K-706264T-FM-SHP
尺寸图
Unit: mm
单位： 毫米
SKU B
706264T-FM-SHP 550-900(mm) 612(mm)
亲悦
H
