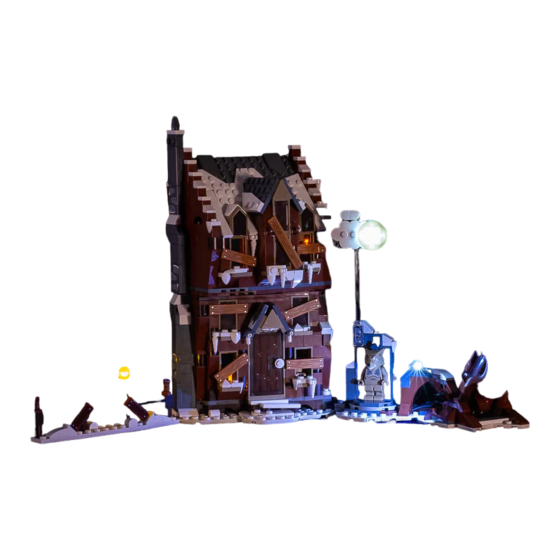

- Page 1 LEGO® HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW #76407 LIGHT KIT INSTALLATION GUIDE...
- Page 2 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Light My Bricks LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO Harry Potter The Shrieking Shack &...
- Page 3 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE ASSORTED BRICKS: PACKAGE CONTENTS: • 1 x Round Plate 1x1 - Trans Clear 2 x Orange 30cm Bit Light • 1 x Plate 1x2 - Trans Clear 1 x Yellow 30cm Bit Light •...
-
Page 4: Table Of Contents
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS... -
Page 5: Before You Begin
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing Take extra care when inserting connectors they are laid correctly between the to ports of Expansion Boards. - Page 6 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
- Page 7 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO®...
-
Page 8: Blueprint
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE BLUEPRINT INSTRUCTIONS... -
Page 9: Instructions
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. - Page 10 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Orange 30cm Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 11 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 12 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Disconnect the wall slightly so that the Bit Light can be threaded through CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 13 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Orange 30cm Large Bit Light CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 14 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE 5cm Connecting Cable Flicker Effects Board Connect the 5cm Connecting Cable to the ‘IN’ port of the Flicker Effects Board CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 15 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Connect the 6-Port Expansion Board Round Plate 1x1 - Trans Clear Orange 30cm Bit Light from Step 5 to the ‘OUT’ port of the Flicker Effects Board Yellow 30cm Bit Light CONNECT / Legend...
- Page 16 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 17 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 18 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Connect the two Orange Bit Lights from the first floor to the ‘OUT’ ports of the Flicker Effects Board CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 19 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Cool White 30cm Bit Light Plate 1x2 - Trans Clear CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 20 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Cool White 30cm Large Bit Light Black Round Plate 1x1 w/ Open Stud Black 1x1 Plate Modified Plate Rounded w/ Handle CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 21 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 22 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Cool White 30cm Bit Light Black Round Plate 1x1 Black 1x1 Plate Modified Plate w/ Open Stud Rounded w/ Handle Black 1x1 Plate Modified Plate Rounded w/ Handle Arm Skeleton, Bent with Clips at 90 degrees - Black CONNECT /...
- Page 23 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 24 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE USB Power Cable 2x Adhesive Squares 2x Adhesive Squares Exclude the USB Power Cable from the twisitng of cables CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST...
- Page 25 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONNECT / Legend DISCONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON RECONNECT INSTRUCTIONS...
- Page 26 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Reconnect the Wood Board Pieces We will now disconnect 4x Dark Brown Pieces and 4x Wooden Pieces on the windows This can be easily done by pushing the intended windows from the inside, out CONNECT /...
- Page 27 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
-
Page 28: Final Product
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Harry Potter The Shrikieking Shack & Whomping Willow 76407 Light Kit. FINAL PRODUCT... -
Page 29: Troubleshooting
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very... - Page 30 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Troubleshooting Firstly, ensure that the Check For CR2032 Batteries batteries have power using a Using The Flat Battery Pack battery charge gauge. Inside the battery pack is a symbol indicating which side the (round) CR2032 If the batteries have no power, battery should be inserted.
- Page 31 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Troubleshooting Check For Cr2032 Batteries Check for AA batteries Using The Round Battery using the AA battery pack Pack Inside the battery pack are symbols indicating which direction the AA battery Inside the battery pack is a symbol indicating should be inserted.
- Page 32 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO® bricks, the light will not operate.
- Page 33 LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even...
-
Page 34: Contact
LEGO HARRY POTTER THE SHRIEKING SHACK & WHOMPING WILLOW 76407 LIGHT KIT INSTALL GUIDE CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage. Alternatively, you can contact our Customer Services team by visiting our online support portal. - Page 35 lightmybricks.com...
