LEGO

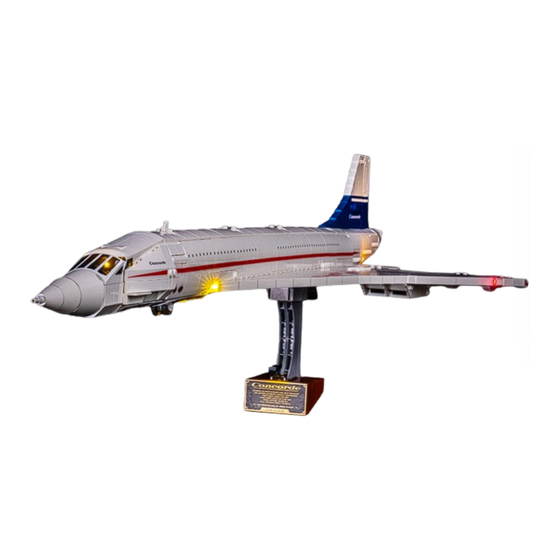

CONCORDE #10318
®
LIGHT KIT
INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO CONCORDE and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS LEGO CONCORDE

Summary of Contents for LIGHT MY BRICKS LEGO CONCORDE

  • Page 1 LEGO CONCORDE #10318 ® LIGHT KIT INSTALLATION GUIDE...
  • Page 2 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Light My Bricks LEGO CONCORDE 10318 ® INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO ® Concorde 10318 Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
  • Page 3 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® PACKAGE CONTENTS: Individual Bags Mixed Components 2 • 6 x White 30cm Bit Light 2 x Brick, Modified 1x1 with Stud on Side - White 4 x Plate, Round 1x1 - Trans-Orange •...

  • Page 4: Table Of Contents

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Contents Before You Begin Blueprint Instructions Final Product Troubleshooting Contact CONTENTS...

  • Page 5: Before You Begin

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO bricks, plates, and tiles providing ® Take extra care when inserting connectors they are laid correctly between the LEGO ®...
  • Page 6 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
  • Page 7 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO ® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO studs or in between.
  • Page 8 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Before You Begin The Symbols Used In This Guide Connect Turn/ Flip When going through the following guide you will Used when you need to Will be found in the top left come across symbols and formats that will assist connect a LEGO piece or LMB corner when the set needs to...
  • Page 9 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Before You Begin General Note Repeat Step NOTE This is a sample note that is Repeat the previous step eg. used anywhere in this guide. It Make a spotlight, then make a Take the 5cm Connecting Cable will explain a difficult section from the 4-Port Micro Expansion...

  • Page 10: Blueprint

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® BLUEPRINT BLUEPRINT...

  • Page 11: Instructions

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS...
  • Page 12 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Twist the tail cone to lower the landing gear. This will be used throughout the installation. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 13 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® White 30cm Bit Light Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 14 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 15 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 6-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 16 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® White 15cm Bit Light Slope 30 1x1 x 2/3 - Trans-Clear INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 17 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® White 15cm Bit Light NOTE Raise the landing gear by twisting the tail cone. Slope 30 1x1 x 2/3 - Trans-Clear INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 18 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® White 15cm Bit Light NOTE Lower the landing gear by twisting the tail cone. Plate, Round 1x1 - Trans-Clear INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 19 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 50cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 20 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 8-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 21 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 22 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 2 x Plate 1x1 - White NOTE Brick, Modified 1x1 with Stud on Side - White Take the white grille piece from Step 9. Green 30cm Bit Light 6-Port Expansion Board Plate 1x1 - Trans-Clear INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 23 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Red 30cm Bit Light Plate 1x1 - Trans-Clear 2 x Plate 1x1 - White NOTE Brick, Modified 1x1 with Stud on Side - White Take the white grille piece from Step 9. INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 24 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Blink Effects Board NOTE Connect the 5cm Connecting Cable from the 6-Port Expansion Board into the “OUT” port of the Blink Effects Board 5cm Connecting Cable NOTE Connect the 5cm Connecting Cable into the “+5V” port of the Blink Effects Board 5cm Connecting Cable NOTE...
  • Page 25 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Push down the Gold Bar piece to remove the Dish, Round Jumper Plate and Bar pieces. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 26 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 - Trans-Orange White 30cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 27 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Plate 1x4 - Dark Bluish Gray INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 28 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Connect the cables from the engines to the 8-Port Expansion Board from Step 9. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 29 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Connect the cables from the engines to the 8-Port Expansion Board from Step 9. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 30 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Plate, Modified 1x2 with Bar Handle on End - Black White 30cm Bit Light Plate, Round 1x1 with Open Stud Arm Skeleton, Bent with Clips - Black (Horizontal Grip) - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT...
  • Page 31 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Plate, Modified 1x2 with Bar Handle on Side Closed Ends - Black USB Power Cable NOTE Run the USB Power Cable up the stand as shown, leaving 10cm between the bottom of the stand and the USB end of the cable.
  • Page 32 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Run the cable from the spotlight up the stand alongside the USB Power Cable. NOTE Connect the cables from the stand to the 8-Port Expansion Board from Step 9. 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 33 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square NOTE Attach the Blink Effects Board from Step 13 to the rear landing gear cavity. 2x Adhesive Square NOTE Attach the 6-Port Expansion Board from Step 12 to the rear landing gear cavity.
  • Page 34 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® NOTE Raise the landing gear by twisting the tail cone again. If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).

  • Page 35: Final Product

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Concorde 10318 Light Kit. ® FINAL PRODUCT...

  • Page 36: Troubleshooting

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our...
  • Page 37 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Troubleshooting Firstly, ensure that the Check for AA batteries batteries have power using a using the AA battery pack battery charge gauge. Inside the battery pack are symbols indicating which direction the AA battery If the batteries have no power, should be inserted.
  • Page 38 CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO bricks, the light will not operate.
  • Page 39 LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even It is important to note that connectors can...

  • Page 40: Contact

    LEGO CONCORDE 10318 LIGHT KIT INSTALL GUIDE ® CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here.
  • Page 41 © 2023 Light My Bricks Pty Ltd - Head Office: 4/26 Rushdale Street, Knoxfield VIC 3180, Australia. Phone: +61 420 643 543 | All Rights Reserved | Light My Bricks™ sell LED lighting kits only. All LEGO sets featured in images are sold ®...
