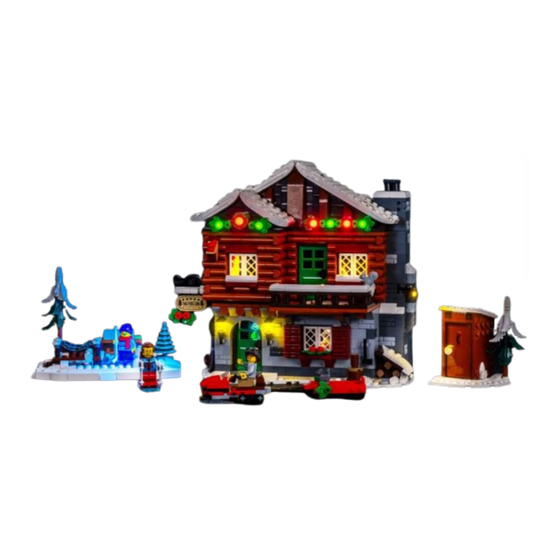

LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Light My Bricks LEGO ALPINE LODGE 10325 ® INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO ® Alpine Lodge 10325 Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
Page 4
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® PACKAGE CONTENTS: Mixed Components 4 1x Plate, Round 1x1 - Trans Red 1x Plate, Round 1x1 - Trans Yellow 1x Plate, Round 1x1 - Trans Light Green 1x Plate, Round 1x1 - Trans Dark Green 1x Plate, Round 1x1 - Trans Light Blue 1x Plate, Round 1x1 - Trans Dark Blue 1x Plate, Round 1x1 - Trans Purple...
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO bricks, plates, and tiles providing ® Take extra care when inserting connectors they are laid correctly between the LEGO ®...
Page 7
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
Page 8
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO ® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO studs or in between.
Page 9
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Before You Begin The Symbols Used In This Guide Connect Turn/ Flip When going through the following guide you will Used when you need to Will be found in the top left come across symbols and formats that will assist connect a LEGO piece or LMB corner when the set needs to...
Page 10
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Before You Begin General Note Repeat Step NOTE This is a sample note that is Repeat the previous step eg. used anywhere in this guide. It Make a spotlight, then make a Take the 5cm Connecting Cable will explain a difficult section from the 4-Port Micro Expansion...
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS...
Page 13
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 14
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Use the LEGO Brick Separator Tool to help remove bricks and sections during this guide. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 15
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 16
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 17
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® White 15cm Bit Light Cone 1x1 Inverted with Bar - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 18
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 19
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® USB Power Cable 6-Port Expansion Board NOTE Hold the Expansion Board in the indicated position when running the cable under the bricks. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 20
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Take the 3x Plate, Round 1x1 Open Stud - Black that were previously removed from the lanterns. Light Blue 30cm Large Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID...
Page 21
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Tile, Modified 1x1 with Open O Clip - Black Plate, Round 1x1 with Bar Handle - Black NOTE Connect all of the loose cables into the same 6-Port Expansion Board as the USB Power Cable. INSTRUCTIONS DISCONNECT POWER ON TEST...
Page 22
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® 15cm Connecting Cable 2x Adhesive Square Warm White Strip Light Plate 1x6 - Dark Bluish Gray NOTE 5cm Connecting Cable Exclude the 15cm Connecting Cable from twisting and hiding the cables. INSTRUCTIONS DISCONNECT POWER ON TEST...
Page 23
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Connect the other end of the 15cm Connecting Cable into the Strip Light. Leave hanging for now. 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 24
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Lightly pull the 15cm Connecting Cable connected to the Strip Light towards the Expansion Board. Then twist the cables. NOTE Ensure all of the cables are running between the studs and NOT on top when placing the top floor back on.
Page 25
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) NOTE Connect the Strip Lights to the ceiling. Take care not to squish the cables and ends.
Page 26
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Flashing White 15cm Micro Bit Light Plate, Round 1x1 - Trans-Light Blue Flashing White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 27
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 - Trans-Pink Flashing White 15cm Micro Bit Light Plate, Round 1x1 - Trans-Bright Green INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 28
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Flashing White 15cm Micro Bit Light Plate, Round 1x1 - Trans-Purple Flashing White 15cm Micro Bit Light Plate, Round 1x1 - Trans-Red INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 29
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Flashing White 15cm Micro Bit Light Plate, Round 1x1 - Trans-Dark Blue Flashing White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 30
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Plate, Round 1x1 - Trans-Dark Plate, Round 1x1 - Trans-Yellow Green 4-Port Micro Expansion Board Flashing White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 31
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® 4-Port Micro Expansion Board 5cm Connecting Cable Cone 1x1 Inverted with Bar - Black 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 32
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 33
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
Page 34
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® White 15cm Bit Light Plate, Round 1x1 with Bar Handle - Black Tile, Modified 1x1 with Open O Clip - Black NOTE Take the Plate, Round 1x1 Open Stud - Black that was previously removed from the lanterns.
Page 35
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Take the Plate, Round 1x1 Open Stud - Black that was previously removed from the tree. Plate 2x8 - Black Bracket 1x1 - 1x1 Inverted - Black Orange 30cm Large Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST...
Page 36
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Brick 2x2 - Dark Bluish Gray Brick 1x2 - Black 8-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 37
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® 15cm Connecting Cable NOTE Connect all of the loose cables to the 8-Port Expansion Board. Warm White 15cm Large Bit Light Plate 1x6 - Dark Bluish Gray Warm White Strip Light INSTRUCTIONS DISCONNECT POWER ON TEST...
Page 38
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Plate, Round 2x2 with Rounded Bottom (Boat Stud) - Trans-Clear Warm White 15cm Large Bit Light Plate, Round 2x2 with Rounded Bottom (Boat Stud) - Trans-Clear INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
Page 39
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Ensure the cables have enough slack as shown before connecting the roof section back on the house. 8-Port Expansion Board NOTE Ensure the cables from the ceiling are running out this side and between the studs.
Page 40
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 41
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Slightly lift the white pin holder and flame piece up to allow for the Bit Light underneath. White 15cm Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 42
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 43
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 44
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Green 30cm Bit Light Green 30cm Bit Light Plate, Round 1x1 - Lime Plate, Round 1x1 - Lime INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 45
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Red 30cm Bit Light Plate, Round 1x1 - Red 8-Port Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 46
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 47
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Red 30cm Bit Light Green 30cm Bit Light Plate, Round 1x1 - Red Plate, Round 1x1 - Lime INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 48
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Red 30cm Bit Light Green 30cm Bit Light Plate, Round 1x1 - Red Plate, Round 1x1 - Lime INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 49
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Run the wires behind the wreath section when connecting to the house. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 50
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE NOTE Wedge the Board into the Press the brown tile of the space against the black technic wreath section when moving piece, and then all of the the roof piece back into place. cables on top.
Page 51
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Power Bank, 5V USB Wall Adaptor, or USB to AA Battery Pack (sold separately) INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
Page 52
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Removed Pieces NOTE NOTE The spotlights on either side You should have these parts can be rotated slightly to shine left over that were removed on wherever the lake and from the LEGO set. outhouse are positioned.
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® FINAL PRODUCT This finally completes installation of the Light My Bricks LEGO Alpine Lodge 10325 Light Kit. ® FINAL PRODUCT...
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our...
Page 55
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Troubleshooting Firstly, ensure that the Check for AA batteries batteries have power using a using the AA battery pack battery charge gauge. Inside the battery pack are symbols indicating which direction the AA battery If the batteries have no power, should be inserted.
Page 56
ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO bricks, the light will not operate.
Page 57
LEGO ALPINE LODGE 10325 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even It is important to note that connectors can...
