realspace 7069205 Assembly Instructions And Warranty Information

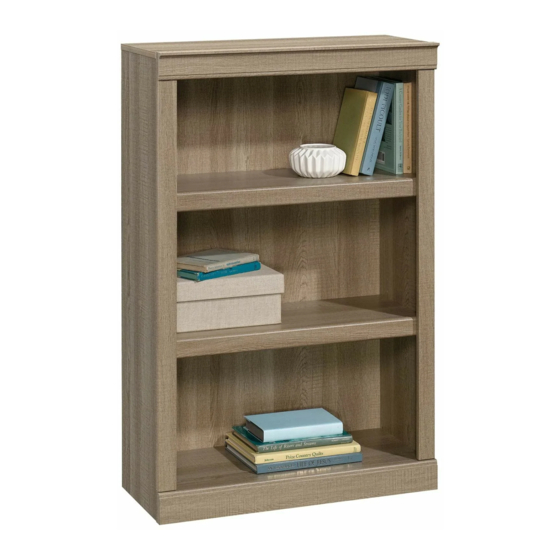

3-shelf bookcase
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
06/12/20
548045
version 1219

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7069205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for realspace 7069205

Summary of Contents for realspace 7069205

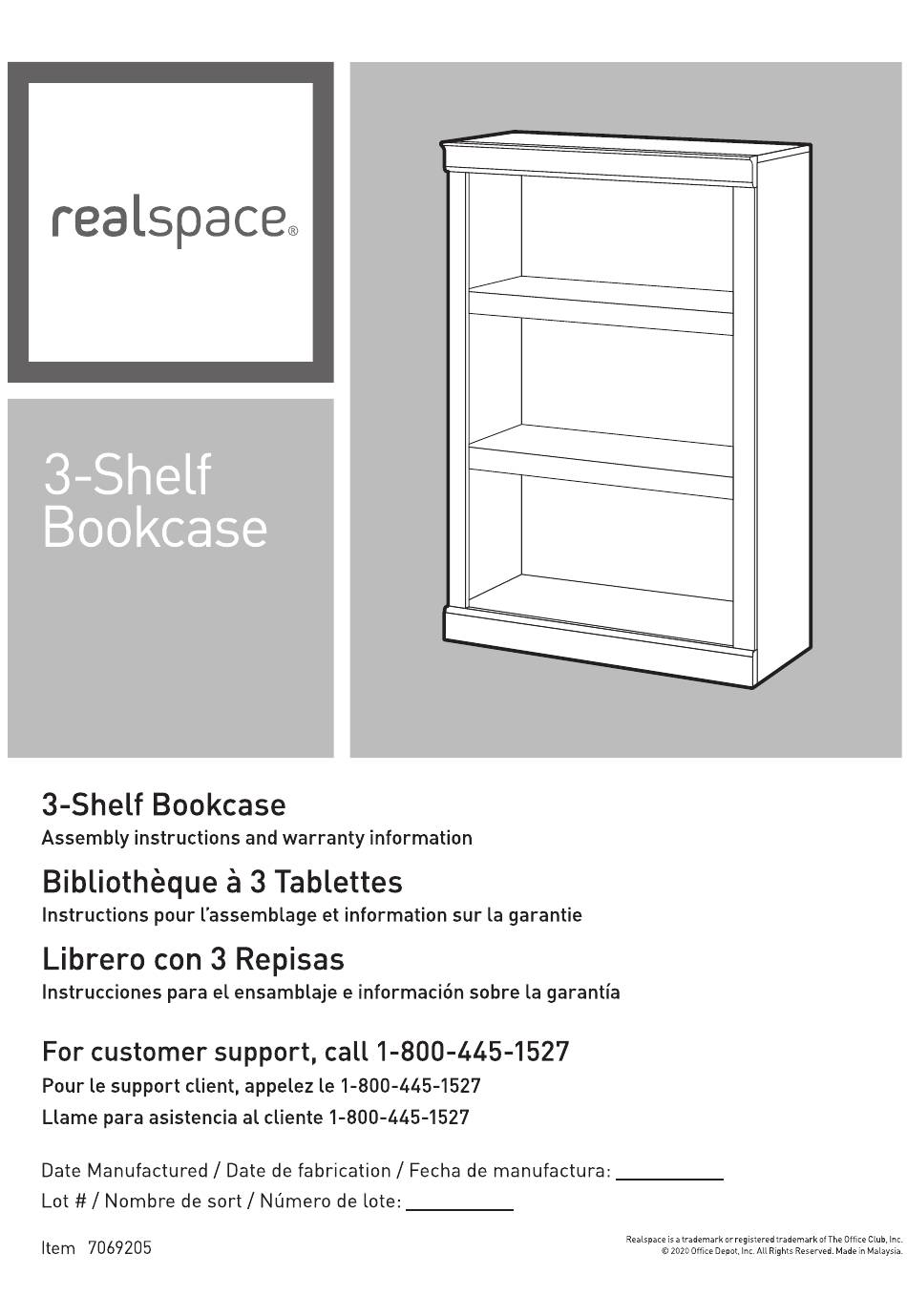

  • Page 1 06/12/20 548045 version 1219...
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-13 Hammer Not actual size Français 14-16 Español 17-19 Pencil Safety 20-22 Electric drill with 1/8" or 3/8" bit (ONLY in indicated step) Warranty Page 2...

  • Page 3: Part Identification

    Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. RIGHT END (1) END MOLDING (2) LEFT END (1)

  • Page 4: Hardware Identification

    Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. HIDDEN CAM - 30 CAM SCREW - 30 METAL PIN - 8 FURNITURE TIPPING APPLIQUE CARD - 2 NAIL - 30 RESTRAINT KIT - 1 Page 4 www.sauder.com/service 426407...
  • Page 5 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/service/tips Assemble your unit on a carpeted fl oor or on the empty å carton to avoid scratching your unit or the fl oor. Some assembly Push thirty HIDDEN CAMS (1) into the ENDS (A and B), å...
  • Page 6 Step Step 2 Turn thirty CAM SCREWS (2) into the ENDS (A and B), å TOP (E), END MOLDINGS (G), VALANCE (K), BASE (L), and ADJUSTABLE SHELF MOLDINGS (M). Open the FURNITURE TIPPING RESTRAINT KIT (96) and å fasten the SAFETY STRAP to the TOP (E). Use the provided short screw.
  • Page 7 Step Step 3 Fasten the ENDS (A and B) to the BOTTOM (F). Tighten å four HIDDEN CAMS. Caution Do not stand the unit upright without the BACK fastened. The unit may collapse. Edge with HIDDEN CAMS S u r f a c i t h Edge with HIDDEN CAMS...
  • Page 8 Step Step 4 Fasten the TOP (E) to the ENDS (A and B). Tighten four å HIDDEN CAMS. Just think. The sooner you do this, the sooner you do something else. Edge with HIDDEN CAMS D E N H I D i t h f a c S u r...
  • Page 9 Step Step 5 Fasten the VALANCE (K) to the TOP (E) and ENDS (A å and B). Tighten fi ve HIDDEN CAMS. Fasten the END MOLDINGS (G) to the ENDS (A and B). å Tighten six HIDDEN CAMS. Fasten the BASE (L) to the ENDS (A and B) and å...
  • Page 10 Step Step 6 Carefully turn your unit over onto its front edges. Unfold the å Caution BACK (C) and lay it over your unit. Do not stand the unit upright without the NOTE: Be sure the end of the SAFETY STRAP on the TOP å...
  • Page 11 Step Step 7 Carefully stand your unit upright. å Fasten an ADJUSTABLE SHELF MOLDING (M) to one of å Almost time to the ADJUSTABLE SHELVES (J). Tighten three HIDDEN celebrate! With a nap. CAMS. Repeat this step for the remaining ADJUSTABLE å...
  • Page 12 Step Step 8 Place your unit in its fi nal location. å NOTE: The following instructions show your unit being fastened to a wall stud. If you are not fastening your unit to a å wall stud, go to the next step now. - Locate the center of a stud in your wall near your unit and mark it with a pencil.
  • Page 13 Step Step 9 - With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. å - Drill a 3/8" hole on the mark. å - While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE TIPPING RESTRAINT å...

  • Page 14: Liste De Pièces

    Modèle 426407 Bibliothèque avec 3 Tablettes Utilisez les instructions d’ a ssemblage en français avec les NOUS CONTACTER EN PREMIER schémas étape par étape du manuel d’instruction en anglais. AVANT D'EFFECTUER TOUT RETOUR AU MAGASIN. Chaque étape en français correspond à la même étape en Nous faisons de notre mieux pour nous assurer que votre meuble anglais.
  • Page 15 ÉTAPE 1 ÉTAPE 6 Assembler l'élément sur un sol à moquette ou sur le carton vide Attention: Ne pas relever l'élément dans sa position verticale pour éviter d'endommager l'élément ou le sol. avant d'avoir fi xé l’ARRIÈRE. L'élément risque de s'eff ondrer. Enfoncer trente EXCENTRIQUES ESCAMOTABLES (1) dans les Avec précaution, retourner l'élément sur ses bords avant.
  • Page 16 ÉTAPE 8 ÉTAPE 9 Placer l'élément dans son emplacement fi nal. 1-Avec un crayon, mettre une marque à travers le centre du trou dans la SANGLE DE SÉCURITÉ. REMARQUE : Les instructions suivantes montrent votre meuble fi xé à un montant mural. Si vous ne fi xe pas le meuble à un 2-Percer un trou de 9,5 mm sur la marque.

  • Page 17: Lista De Partes

    Modelo 426407 Librería con 3 Estantes Use estas instrucciones de ensamblaje en español junto con las CONTÁCTENOS PRIMERO fi guras paso-a-paso provistas en el folleto inglés. Cada paso en ANTES DE HACER DEVOLUCIONES A LA TIENDA. español corresponde al mismo paso en inglés. Compare la “Lista Tratamos de asegurar que su mueble llega en condición excelente.
  • Page 18 PASO 1 PASO 6 Ensamble la unidad sobre un piso alfombrado o sobre el cartón Precaución: No coloque la unidad en posición vertical hasta que se vacío para evitar rayar la unidad o el piso. fi je el DORSO. La unidad podría caerse. Empuje treinta EXCÉNTRICOS ESCONDIDOS (1) en los Cuidadosamente voltee la unidad para que repose sobre los bordes EXTREMOS (A y B), el PANEL SUPERIOR (E), el FONDO (F) y los...
  • Page 19 PASO 8 PASO 9 Coloque su unidad en su posición fi nal. 1-Con su lápiz, ponga una marca a través del centro del agujero en la CORREA DE SEGURIDAD. NOTA: Las siguientes instrucciones muestran que su unidad está siendo fi jada a un montante de la pared. Si no está fi jando su 2-Taladre un agujero de 9,5 mm en la marca.
  • Page 20 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves. •...
  • Page 21 AVERTISSEMENT Prière d’utiliser le mobilier à bon escient et avec prudence. Une mauvaise utilisation peut être à l’ o rigine de risques d’ a ccident ou peut endommager le mobilier et les articles ménagers. Lire attentivement le tableau suivant. À surveiller : Danger éventuel : Solution : •...
  • Page 22 ADVERTENCIA Por favor use el mobiliario correcta y seguramente. El mal uso puede causar riesgos de seguridad o daño a las unidades o artículos domésticos. Cuidadosamente lea la tabla a continuación. Esté alerto de: Puede ocurrir: Evitar el problema: • Estantes sobrecargados •...

  • Page 23: Year Limited Warranty

    1-YEAR LIMITED WARRANTY 1. Sauder Woodworking Co. (Sauder®) provides limited warranty coverage to the 4. This Warranty applies only to warranted defects that fi rst arise and are reported to original purchaser of this product for a period of one year from the date of purchase Sauder within the warranty coverage period.
  • Page 24 CONTACT US FIRST BEFORE MAKING ANY RETURNS TO THE RETAILER. Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
