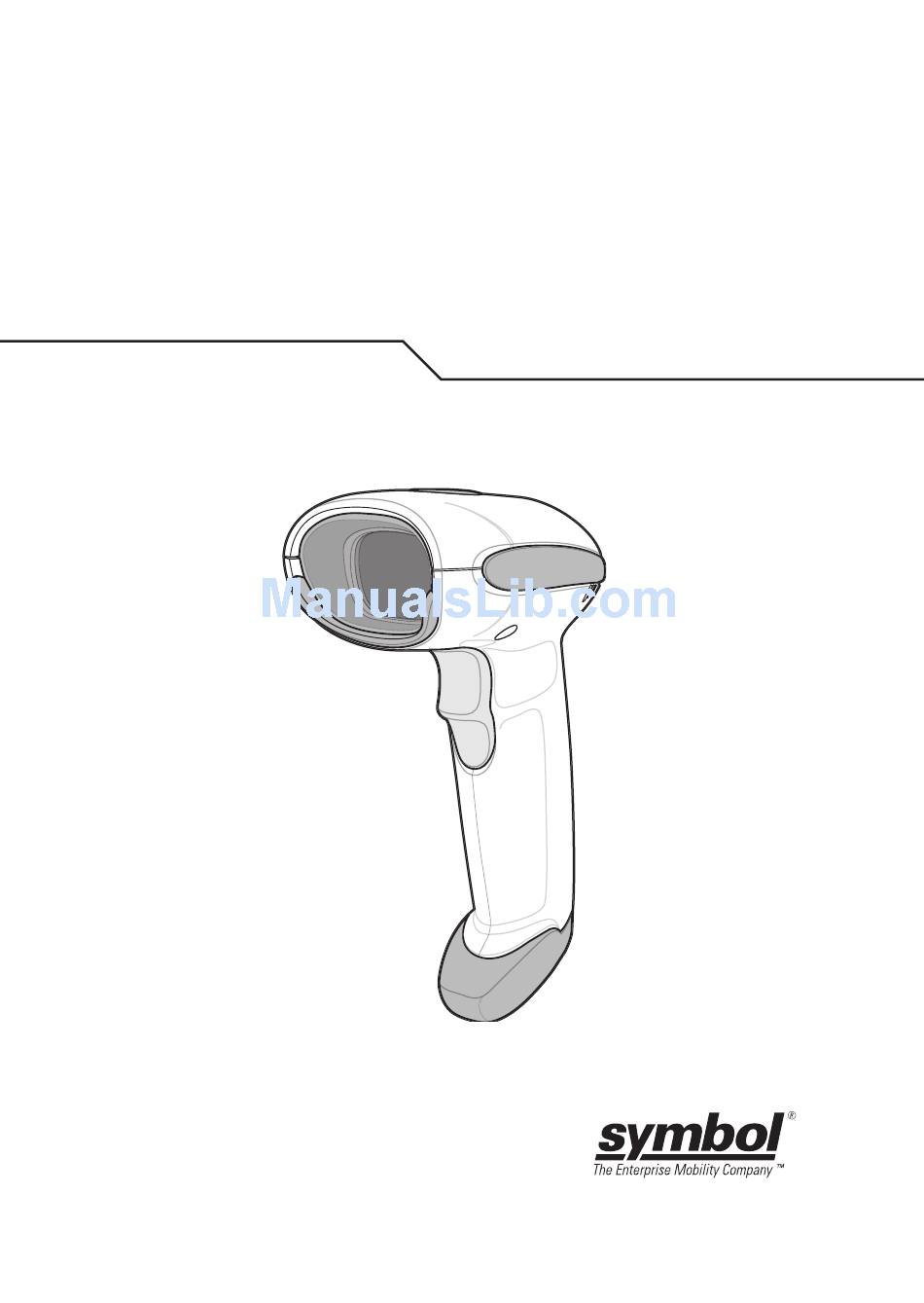

  • Page 1 LS 4208 Quick Reference Guide...
  • Page 2 Die übersetzte Version dieser Kurzübersicht finden Sie auf der CD-ROM zum LS 4208 oder auf der folgenden Website. Podrá encontrar la versión traducida de esta guía en el CD del LS 4208 o bien en la siguiente página Web. Para obter uma versão traduzida deste guia, consulte o CD do LS 4208 ou visite o site abaixo.

  • Page 3: Inserting And Removing The Interface Cable

    Introduction The LS 4208 scanner combines excellent scanning performance and advanced ergonomics to provide the best value in a lightweight laser scanner. Whether used as a hand-held scanner or in hands-free mode in a stand, the scanner ensures comfort and ease of use for extended periods of time.

  • Page 4: Beeper Definitions

    LS 4208 Quick Reference Guide Scanning 012345 012345 Beeper Definitions The scanner issues different beep sequences and patterns to indicate status. The table below defines beep sequences that occur during both normal scanning and while programming the scanner. Beeper Sequence...

  • Page 5: Led Definitions

    Beeper Sequence Code 39 Buffering Hi/lo beep New Code 39 data was entered into the buffer. 3 Beeps - long high beep Code 39 buffer is full. Lo/hi/lo beep The Code 39 buffer was erased or there was an attempt to clear or transmit an empty buffer.

  • Page 6: Troubleshooting

    Check for loose cable connections. Ensure the scanner is programmed to read the type of bar code scanned. Refer to the LS 4208 Product Reference Guide, p/n 72E-69413-xx, for more information. Check the symbol to ensure it is not defaced.

  • Page 7: Programming Bar Codes

    Programming Bar Codes Following are some frequently used programming bar codes. Note: For additional host types, refer to the LS 4208 Product Reference Guide, p/n 72E-69413-xx, available on the LS 4208 CD, or on the Symbol website: http://www.symbol.com/manuals. Set Defaults Scan SET DEFAULTS to set all parameters to their default values.

  • Page 8: Keyboard Wedge Host Type

    LS 4208 Quick Reference Guide Host Type If a Synapse cable is used (i.e., part number STIxx-xxxx), the scanner autodetects the Synapse cable and there is no need to scan bar codes to enable the Synapse host. If a USB interface is used, the scanner autodetects the USB and defaults to the HID keyboard interface.

  • Page 9: Rs-232 Host Types

    Country Keyboard Types (Country Codes) SPANISH Windows ITALIAN Windows SWEDISH Windows UK ENGLISH Windows JAPANESE Windows PORTUGUESE-BRAZILIAN Windows RS-232 Host Types STANDARD RS-232 ICL RS-232...

  • Page 10: Usb Host Types

    LS 4208 Quick Reference Guide RS-232 Host Types NIXDORF RS-232 MODE A NIXDORF RS-232 MODE B FUJITSU RS-232 OPOS/JPOS USB Host Types HID KEYBOARD EMULATION IBM HAND-HELD USB IBM 46XX Host Types PORT 5B PORT 9B...

  • Page 11: Wand Emulation Host Type

    To append a carriage return/line feed to all transmitted data, scan the following bar codes in the order shown. To cancel this operation, the SET DEFAULTS bar code on page 5, or refer to the LS 4208 Product Reference Guide. SCAN OPTIONS <DATA><SUFFIX>...

  • Page 12: Ergonomic Recommendations

    All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment.

  • Page 13: Laser Devices

    Marking and European Economic Area (EEA) Statement of Compliance Symbol Technologies, Inc., hereby declares that this device is in compliance with all the applicable Directives, 89/336/EEC, 73/23/EEC. A Declaration of Conformity may be obtained from http://www2.symbol.com/doc/. Laser Devices Symbol devices using lasers comply with 21CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.
  • Page 14 LS 4208 Quick Reference Guide In accordance with Clause 5, IEC 825 and EN60825, the following information is provided to the user: ENGLISH CLASS 1 CLASS 1 LASER PRODUCT CLASS 2 LASER LIGHT DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT...

  • Page 15: Warranty

    Warranty Subject to the terms of Symbol's hardware warranty statement, the LS 4208 hand held scanner products are warranted against defects in workmanship and materials for a period of five years from the date of shipment. The Liquid Polymer scan element includes an unprecedented limited lifetime warranty.

  • Page 16: Service Information

    Latin America 1-800-347-0178 (Inside United States) Sales Support +1-561-483-1275 (Outside United States) For the latest version of this guide go to: http://www.symbol.com/manuals. 72-69411-01 Revision B - May 2005 Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Canada 905-629-7226 Asia/Pacific...
