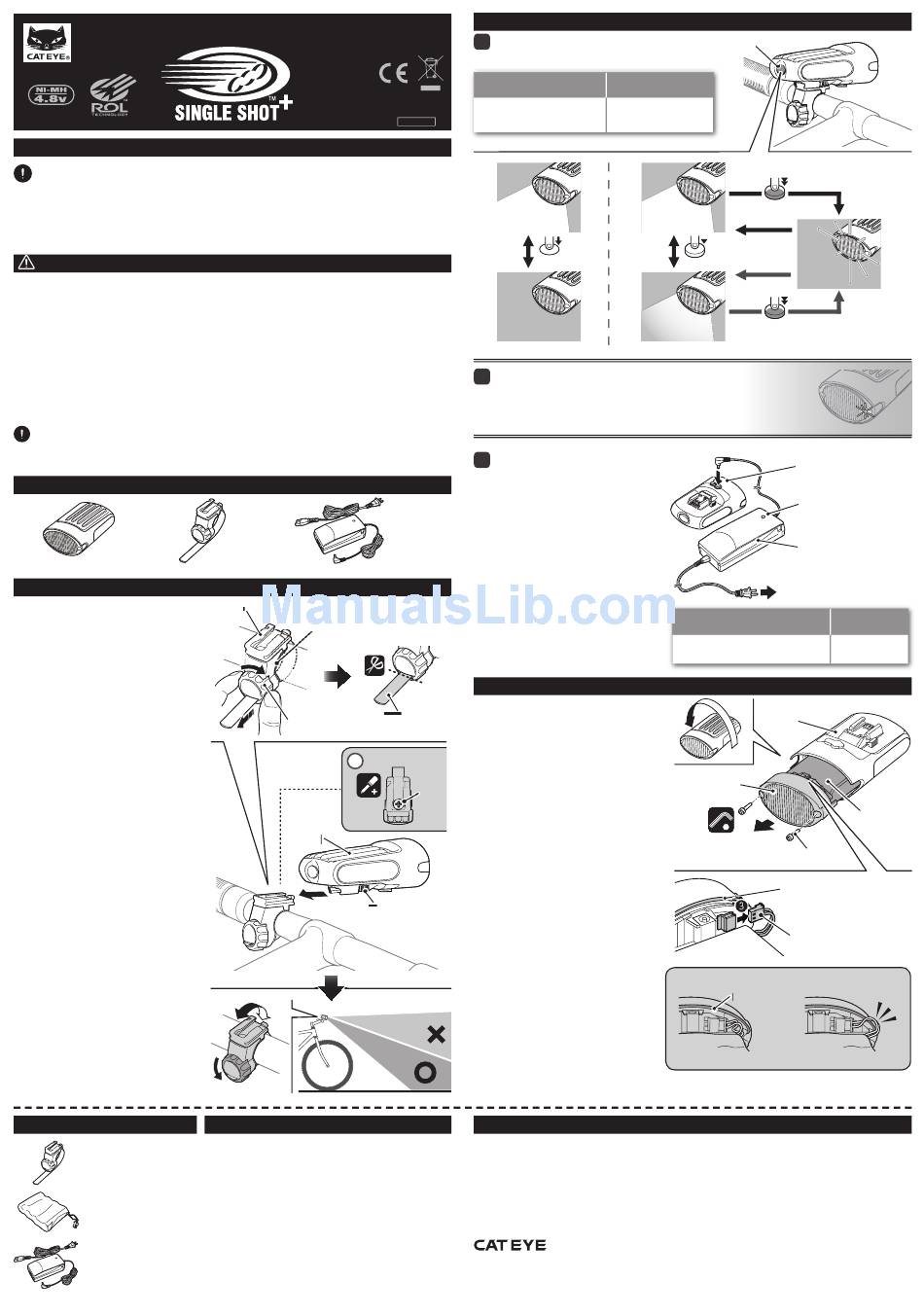

CATEYE SINGLE SHOT PLUS
HL-EL610RC
INTRODUCTION
Before using the light, please read this manual and the attached "NiMh
Batteries" thoroughly, and keep them for future reference.
Thank you very much for purchasing the CATEYE "SINGLE SHOT PLUS HL-EL610RC."
This product is a high power rechargeable light unit that integrates a high power LED and
a nickel metal-hydride rechargeable battery into a compact body.
FOR SAFE OPERATION
•
Do not place it within children's reach.
•
In preparation for unexpected battery shutoff, we recommend you carry a dry-cell
battery light unit with you.
•
If the light unit or parts become dirty with mud, etc., clean with a soft cloth which is
moistened with mild soap. Never apply paint thinner, benzine or alcohol; damage
will result.
•
Mount the light unit more than 10 cm away from the wireless meter. When it is
mounted too close, the transmission may be affected adversely.
•
This product has waterproof features that allow you to use it in rain. Do not use it
soaked in water.
Before Initial Use
Before shipment, it is charged enough to check the light. Be sure to charge it before use,
according to the instructions "How to charge."
COMPONENTS
Light unit
HOW TO MOUNT
Wrap the bracket strap around the
1
handlebar, and put it in the dial.
Securely tighten the strap by turn-
2
ing the dial.
Cut off the excess bracket strap
3
extending from the dial.
I n s e r t t h e l i g h t u n i t t o
4
th e b rac ke t unt i l it c lic ks .
To remove, pull out while pressing
the release button.
CAUTION!:
•
Make sure to tighten the dial by
hand. If you tighten it too hard
with a tool, the screw threads may
be stripped.
•
When the angle adjustment on the
right and left sides is loose, tighten
the screw (
*1
).
•
Round off the cut edge of the
bracket strap to prevent injury.
How to Adjust Beam Angle
Slightly loosen the dial on the
5
bracket.
Adjust the light unit angle so that
6
the light is not directed to oncom-
ing cars.
*
When the dial is too fi rm to loosen, wash it
slightly with water to loosen it.
*
Do not loosen the dial too much, or the bracket
strap may come off. Loosen the dial just enough
to allow the bracket to move slightly. Securely
tighten the dial after adjusting the strap.
*
It can also be adjusted 10 degrees to the left
and right.
SPARE PARTS
#533-8827
H34 Bracket
#534-1865
NiMH 4.8v 2700mAH
UL:#534-1866
UK:#534-1867
EC:#534-1868
AS:#534-1870
CHR-2700mAH 4.8v NiMH
Pat. and Design Pat. Pending
Copyright© 2007 CATEYE Co., Ltd.
EL61RC-070620 066640131 1
H34 Bracket
Bracket
Bracket
Bracket rubber pad
2
Bracket strap
Bracket strap
Dial
*1
Light unit
Light unit
4
Release button
Release button
6
SPECIFICATIONS
Light source
High power white LED x 2
Battery
NiMH 4.8v 2700mAH
Battery charger
CHR-2700mAH 4.8v NiMH
Operating time
Hi
: Approx. 3 hours
Low : Approx. 9 hours
Flash : Approx. 36 hours
Standard charging time
Approx. 4 hours
Temperature range Charging : 32˚F – 104˚F (0˚C – 40˚C)
Operating : 5˚F – 113˚F (-15˚C – 45˚C)
Recharge/discharge number of times
About 300 times (until the rated capacity drops to
50%)
Dimensions/weight 4-3/32" x 2-29/32" x 1-11/16" (104 x 74 x 43 mm) /
8.92 oz (253 g)
*
The specifi cations and design are subject to change without notice.
HOW TO USE
ENG
1
Lighting (lighting pattern selection)
The lighting pattern is selected using a switch.
Switch
↔
ON
OFF : Long press
↔
Hi
Low : Single press
Flash
: Quick double press
ON
2 sec.
OFF
2
Remaining battery capacity
When the battery indicator lights up red, the bat-
tery is almost shutoff. Charge the battery as soon
as possible.
3
How to charge
Open the charge jack cover at the
1
back of the light unit to connect the
battery charger plug.
Plug the battery charger to an
2
AC outlet.
Battery charger
After charging, remove the plug
3
and close the charge jack cover.
*
Be sure to use the special purpose battery
charger.
*
Charging and lighting times are approximate
values, and will vary by environmental and
user conditions.
HOW TO REPLACE BATTERY
3
Turn over the light, and remove the 2
1
screws at the front of the lens using
a 2.5 mm Allen wrench.
Slowly pull out the lens unit from
2
the body.
Remove the battery connector con-
3
Screw
nected to the board, and replace it
with a new battery.
Place the battery on the tray, and
4
insert it to the body in place, and
secure it with 2 screws.
CAUTION!:
•
The lens unit is a precision part;
therefore, never disassemble
it. Otherwise, the optimum light
distribution may be lost.
•
To maintain its waterproof features,
assemble the lens unit with a rubber
packing-sheet correctly.
•
In order to avoid cable damage,
when re-assembling the light,
make sure the battery cable is
placed inside the rubber seal as
shown below.
LIMITED WARRANTY
2-year Warranty: Light unit / Battery charger
(Deterioration of the battery is excluded.)
CatEye products are warranted to be free of defects from materials and workmanship for a period of 2 years from original
purchase. If the product fails to work due to normal use, CatEye will repair or replace the defect at no charge. Service must
be performed by CatEye or an authorized retailer. To return the product, pack it carefully and enclose the warranty certifi cate
(proof or purchase) with instruction for repair. Please write or type your name and address clearly on the warranty certifi cate.
Insurance, handling and transportation charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of purchase. This does not affect your statutory rights.
CO.,LTD.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
Attn : CATEYE Customer Service Section Phone : (06)6719-6863 Fax : (06)6719-6033 E-mail : support@cateye.co.jp URL : http://www.cateye.co.jp
Service & Research Address for USA
CATEYE Service and Research Center 1705 14th St. 115 Boulder, CO 80302
Phone : 303.443.4595
Toll Free : 800.5CATEYE
Switch
Standard continu-
ous lighting time
Hi
: About 3 hours
Low : About 9 hours
Flash : About 36 hours
Double press
Hi
x1
Double press
Low
Battery indicator
1
2
To AC power outlet
Charging indicator state
Blinking red light : Charging
Green light
: Charging is completed
1
Body
Lens unit
2
Rubber packing
3
Back side of lens
Rubber packing
Rubber packing
OK
Fax : 303.473.0006
E-mail : service@cateye.com
Flash
Charge jack
Charging Indicator
Battery charger
Standard charg-
ing time
Approx. 4 hours
Battery
Screw
Battery connector
NO!
URL : http://www.cateye.com
