MCO Home MH8-FC-EU User Manual

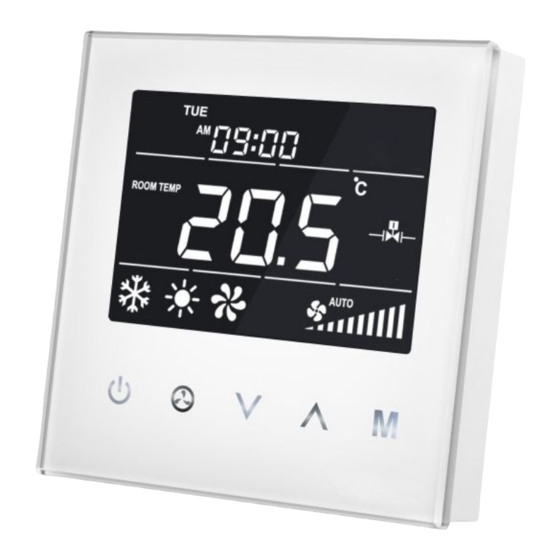

MCOHome Fan Coil Thermostat is a Z-Wave enabled device for indoor temperature control. It is
mainly applied to a 2-pipe Fan coil system. It can read room temperature and local time, and
automatically control fan speed based on the temperature difference. The device is of high reliability
and practicability. This product can be included and operated in any Z-Wave network with other
Z-Wave certified devices from any other manufacturers.
Features：
Capacitive touch buttons

Tempered glass panel, PC alloy enclosure

Precise temperature calibration function

Non-volatile Memory, working state saved even power failure

Intelligent on/off control of 3-speed fan, electric (ball) valve or air-valve

Easily steel frame back plate installation

Power Supply：AC85V~260V, 50/60HZ

Resistive Load: ≤3A

Self Consumption：< 1W

Temperature Sensor: NTC 15K

Display Accuracy: 0.1 ℃

Working Environment：0～55℃; <95% RH（Non-condensation)

Temperature Setting：5～35 ℃（Adjustable）

Dimension：86* 86*42mm

Hole Pitch：60-65mm（86 Standard junction box）

Z-Wave Frequency: 868.42MHz (EU)

To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical

safety should complete installation following the instructions.
MCOHome Technology Co., Ltd 2015
www.mcohome.com
Fan Coil Thermostat (2-pipe)
MH8-FC-EU

Introduction

Specification

Safety Information

1
User Manual
