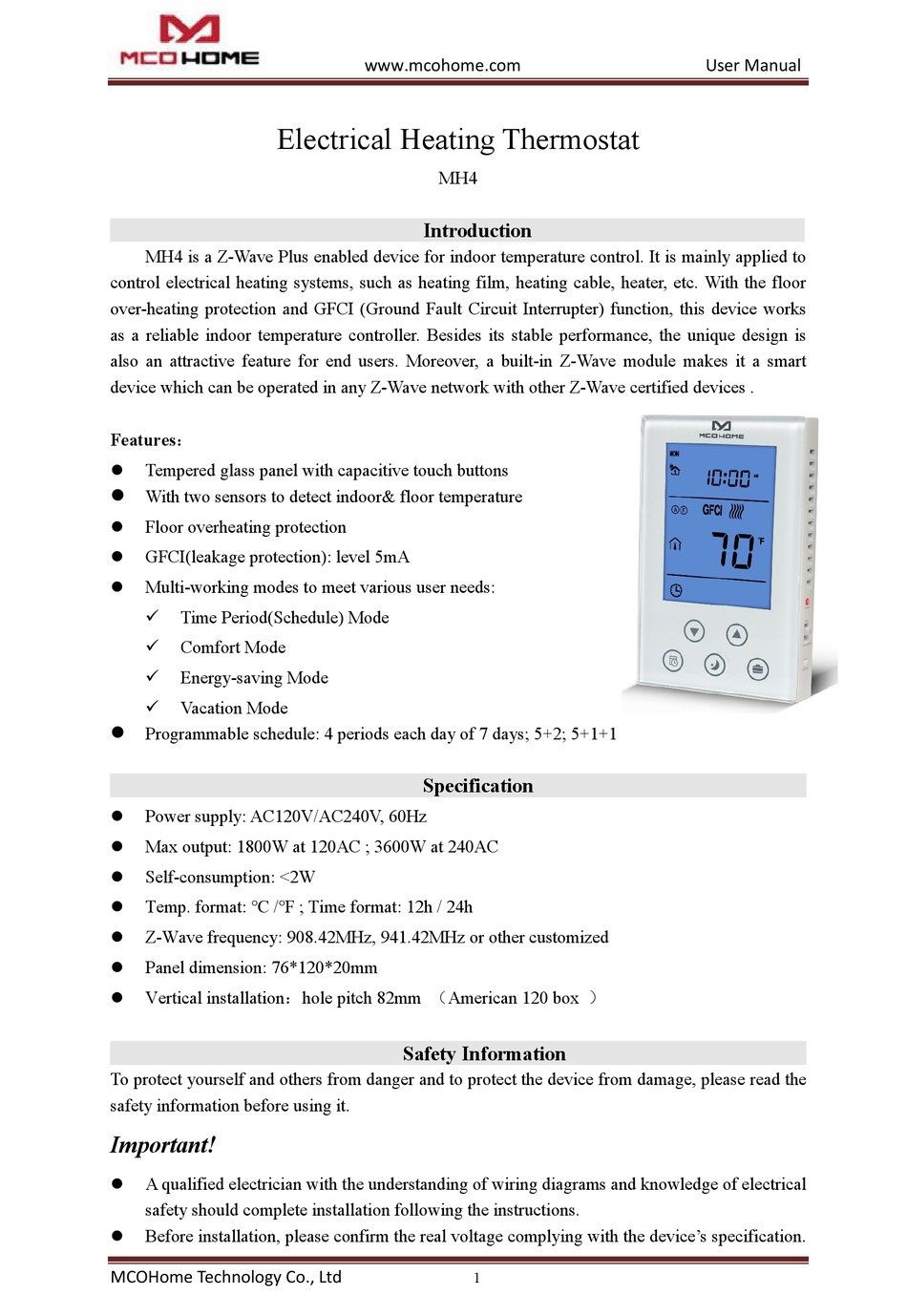

MCO Home MH4 User Manual

Electrical Heating Thermostat
MH4 is a Z-Wave Plus enabled device for indoor temperature control. It is mainly applied to
control electrical heating systems, such as heating film, heating cable, heater, etc. With the floor
over-heating protection and GFCI (Ground Fault Circuit Interrupter) function, this device works
as a reliable indoor temperature controller. Besides its stable performance, the unique design is
also an attractive feature for end users. Moreover, a built-in Z-Wave module makes it a smart
device which can be operated in any Z-Wave network with other Z-Wave certified devices .
Features：
 Tempered glass panel with capacitive touch buttons

With two sensors to detect indoor& floor temperature
 Floor overheating protection
 GFCI(leakage protection): level 5mA
 Multi-working modes to meet various user needs:
 Time Period(Schedule) Mode
 Comfort Mode
 Energy-saving Mode
 Vacation Mode

Programmable schedule: 4 periods each day of 7 days; 5+2; 5+1+1
 Power supply: AC120V/AC240V, 60Hz
 Max output: 1800W at 120AC ; 3600W at 240AC
 Self-consumption: <2W
 Temp. format: ℃ /℉ ; Time format: 12h / 24h

Z-Wave frequency: 908.42MHz, 941.42MHz or other customized
 Panel dimension: 76*120*20mm
 Vertical installation：hole pitch 82mm （American 120 box ）
To protect yourself and others from danger and to protect the device from damage, please read the
safety information before using it.
Important!
 A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete installation following the instructions.
 Before installation, please confirm the real voltage complying with the device's specification.
MCOHome Technology Co., Ltd
www.mcohome.com
MH4
Introduction
Specification

Safety Information

1
User Manual
