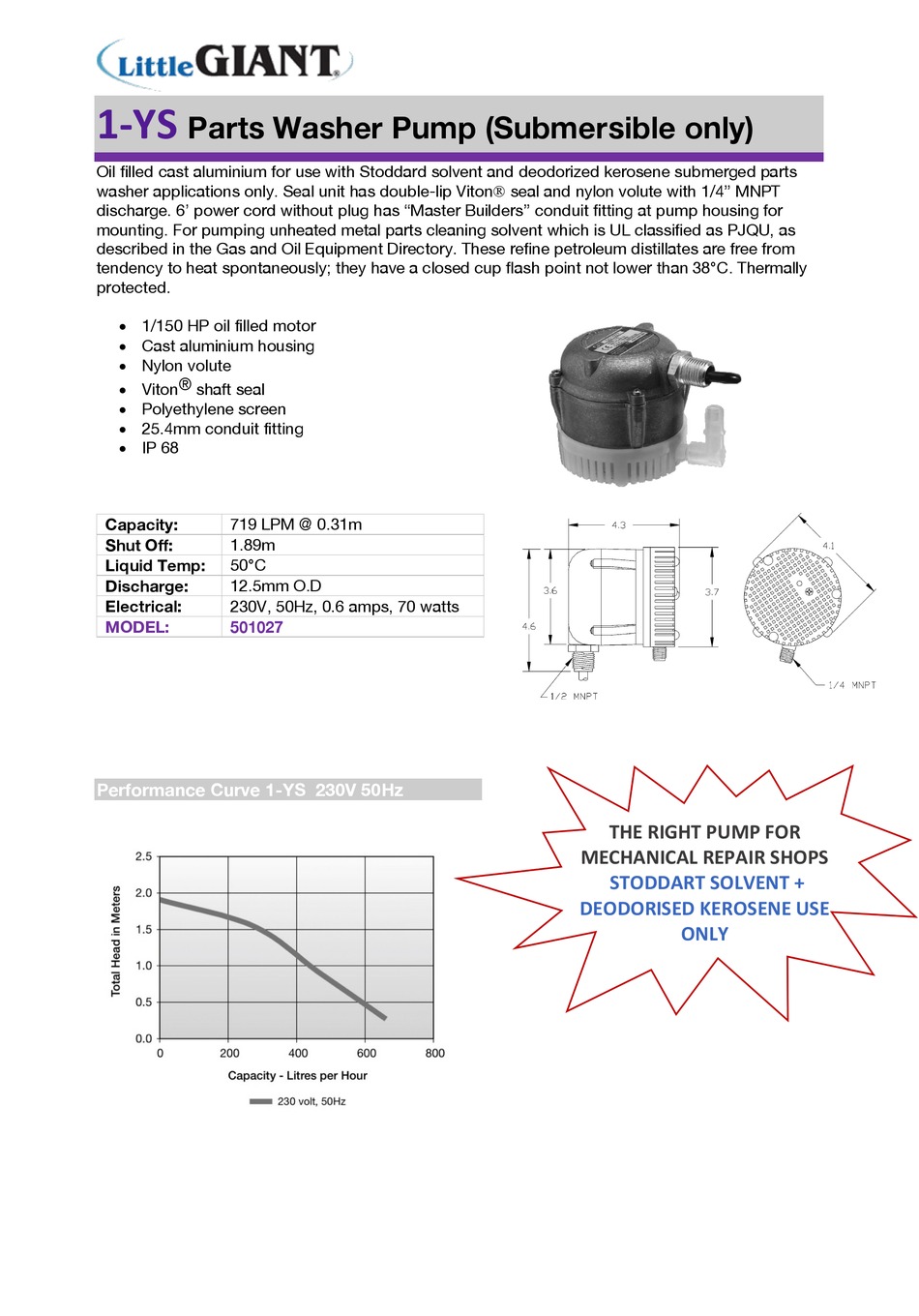

1-YS

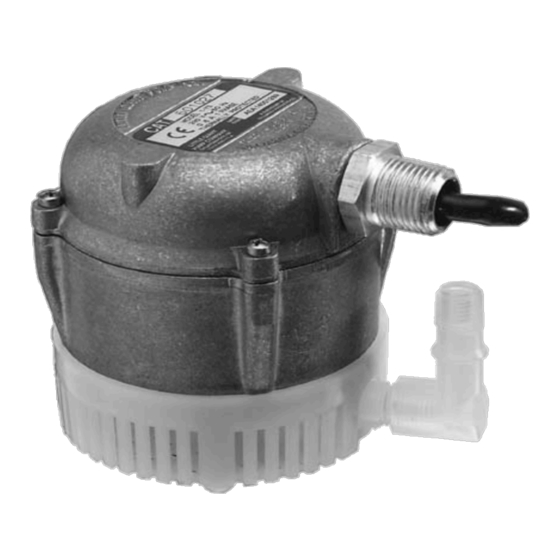

Parts Washer Pump (Submersible only)
Oil filled cast aluminium for use with Stoddard solvent and deodorized kerosene submerged parts
washer applications only. Seal unit has double-lip VitonÒ seal and nylon volute with 1/4" MNPT
discharge. 6' power cord without plug has "Master Builders" conduit fitting at pump housing for
mounting. For pumping unheated metal parts cleaning solvent which is UL classified as PJQU, as
described in the Gas and Oil Equipment Directory. These refine petroleum distillates are free from
tendency to heat spontaneously; they have a closed cup flash point not lower than 38°C. Thermally
protected.
• 1/150 HP oil filled motor
• Cast aluminium housing
• Nylon volute
• Viton ® shaft seal
• Polyethylene screen
• 25.4mm conduit fitting
• IP 68
Capacity:
719 LPM @ 0.31m
Shut Off:
1.89m
Liquid Temp:
50°C
Discharge:
12.5mm O.D
Electrical:
230V, 50Hz, 0.6 amps, 70 watts
MODEL:
501027
Performance Curve 1-YS 230V 50Hz
THE RIGHT PUMP FOR
MECHANICAL REPAIR SHOPS
STODDART SOLVENT +
DEODORISED KEROSENE USE
ONLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1-YS and is the answer not in the manual?

Questions and answers

Summary of Contents for Little Giant 1-YS

  • Page 1 719 LPM @ 0.31m Shut Off: 1.89m Liquid Temp: 50°C Discharge: 12.5mm O.D Electrical: 230V, 50Hz, 0.6 amps, 70 watts MODEL: 501027 Performance Curve 1-YS 230V 50Hz THE RIGHT PUMP FOR MECHANICAL REPAIR SHOPS STODDART SOLVENT + DEODORISED KEROSENE USE ONLY...
  • Page 2 1-YS Installation The 1-YS pump is designed for submerged use only. Its motor is hermetically sealed in a diecast aluminum housing, which is oil-filled for heat transfer and permanent lubrication. It is intended to pump unheated metal parts-cleaning solvent that is UL classified as PJQU as described in the Gas and Oil Equipment Directory.
  • Page 3 Turn the impeller by hand to make sure it is free. If it does not turn or if pump is tripping circuit breaker, or not operating properly after cleaning, return to an authorized Little Giant service center. Do not attempt repairs yourself.
