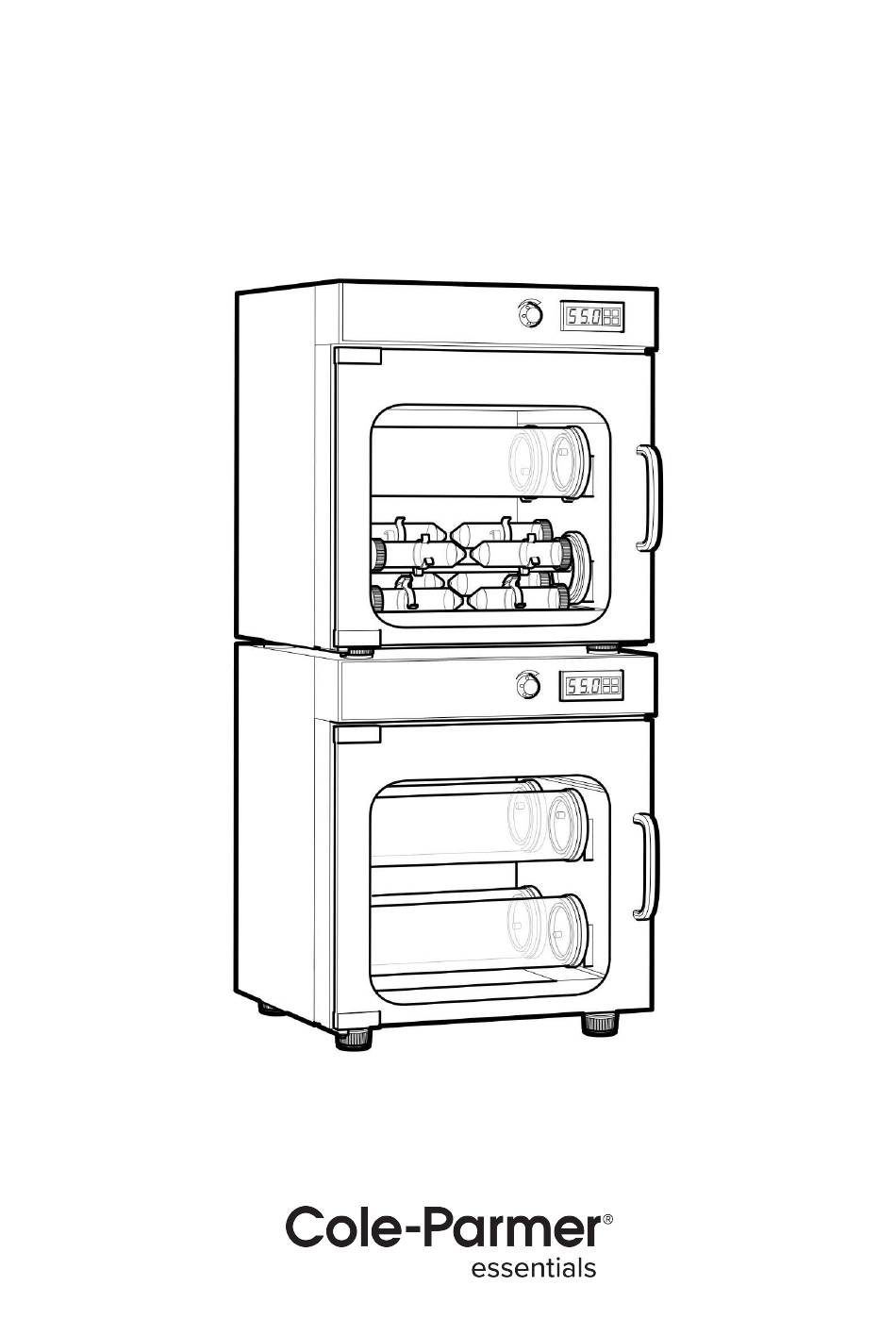

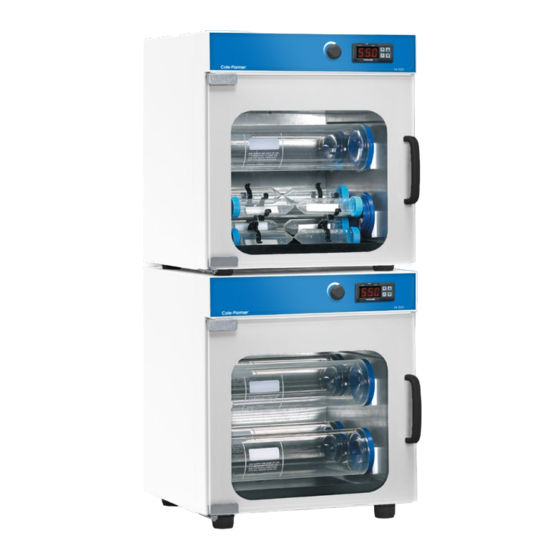

- Page 1 Cole-Parmer ® HI-200 Series Hybridisation Incubator Instruction Manual Version...
-
Page 2: Table Of Contents
Contents CONTENTS INTRODUCTION ......................4 BEFORE USE ........................5 UNPACKING ........................ 5 SAFETY AND INSTALLATION ..................6 WARNING ........................6 OPERATOR SAFETY ....................6 INSTALLATION ......................6 Replacement cable .............................7 ENVIRONMENTAL CONDITIONS ................7 SÉCURITÉ ET CONSIGNES D’INSTALLATION............. 8 AVERTISSEMENT ....................... 8 INSTALLATION ...................... - Page 3 BASIC PROTOCOL FOR SOUTHERN HYBRIDISATIONS ........23 Insertion of filters ............................23 Pre-hybridisation............................23 Hybridisation .............................23 Washes ..............................23 Notes: ...............................23 WARNING ........................23 USER MAINTENANCE ....................24 O ring seals on the FHB16 hybridisation tubes ..................24 Hybridisation tubes ...........................24 Cleaning your Hybr ......................24 If you spill the fluid ............................24 ADDITIONAL INFORMATION ..................
-
Page 4: Introduction
In addition, protective casing and non-drip tube design minimises risk to the user. Included is a removable drip tray for easy cleaning should spillages occur. The HI-200 Series Hybridisation Oven has adjustable feet for levelling on uneven surfaces. It is also possible to stack up to three ovens, saving on valuable laboratory space. -
Page 5: Before Use
BEFORE USE Before using the HI-200 Series Hybridisation Oven please make sure you have read this manual carefully. If there is any doubt relating to the proper use of this equipment, the staff at Antylia Scientific Ltd. or your supplier will be happy to assist you. -
Page 6: Safety And Installation
SAFETY AND INSTALLATION Please read all the information in this manual before using the HI-200 Series Hybridisation Oven. WARNING HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite combustible material. Cole-Parmer have taken great care in the design of these units to protect operators from hazards,... -
Page 7: Replacement Cable
H05VV-F connected to an IEC320 plug should be used. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN. ENVIRONMENTAL CONDITIONS The HI-200 Series Hybridisation Oven is designed operate under the following conditions: Indoor use • Ambient temperature range +5ºC to +40ºC •... -
Page 8: Sécurité Et Consignes D'installation
SÉCURITÉ ET CONSIGNES D’INSTALLATION Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser le séries HI-200 Hybridisation Oven. AVERTISSEMENT Les TEMPÉRATURES ÉLEVÉES SONT DANGEREUSES car elles peuvent provoquer de graves brûlures chez l’opérateur et enflammer les matériaux combustibles. Cole-Parmer a apporté... -
Page 9: Câble De Rechange
3. Placer l’appareil sur une surface plane ou si nécessaire sous une hotte d’aspiration, veiller à ce que les trous d’aération situés sous l’appareil ne soient pas obstrués. 4. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil. 5. -
Page 10: Sicherheits- Und Installationsinformationen
SICHERHEITS- UND INSTALLATIONSINFORMATIONEN Lesen Sie diese Anleitung vor Verwendung des Serie HI-200 Hybridisation Oven bitte sorgfältig durch. ACHTUNG HOHE TEMPERATUREN STELLEN EINE GEFAHRENQUELLE DAR. Sie können schwere Brandverletzung verursachen und brennbare Stoffe entzünden. Cole-Parmer hat bei der Konstruktion dieses Gerätes sehr darauf geachtet, daß der Bediener vor Gefahren geschützt ist. -
Page 11: Ersatzkabel
Netzschalter Ein Netzschalter Aus Ersatzkabel Bei einem eventuellen Austausch des Netzkabels wird ein Kabel vom Typ H05VV-F mit 1 mm Adernquerschnitt und Europastecker (IEC 320) benötigt. IM ZWEIFELSFALL EINEN ELEKTRO- FACHMANN HINZUZIEHEN. UMWELTBEDINGUNGEN Der Serie HI-200 Hybridisation Oven ist für den Einsatz unter folgenden Bedingungen ausgelegt: •... -
Page 12: Informazioni Sulla Sicurezza E L'installazione
INFORMAZIONI SULLA SICUREZZA E L'INSTALLAZIONE Leggere attentamente il presente manuale prima di usare il HI-200 Serie Hybridisation Oven. AVVERTENZA Le ALTE TEMPERATURE SONO PERICOLOSE in quanto possono provocare serie ustioni agli operatori e dare fuoco al materiale combustibile. La Cole-Parmer ha posto particolare cura nel progettare questo strumento, al fine di proteggere gli operatori da eventuali pericoli, ma gli utilizzatori devono prestare attenzione ai seguenti punti: PRESTARE ATTENZIONE ED INDOSSARE GUANTI PROTETTIVI PER LE •... -
Page 13: Cavo Di Ricambio
H05VV-F collegato ad una spina IEC 320. IN CASO DI DUBBIO, RIVOLGERSI A UN ELETTRICISTA QUALIFICATO. CONDIZIONI AMBIENTALI Il HI-200 Series Hybridisation Oven è stato progettato per funzionare nelle seguenti condizioni: • uso interno range di temperatura ambiente da +5ºC a +40ºC •... -
Page 14: Información De Seguridad E Instalación
INFORMACIÓN DE SEGURIDAD E INSTALACIÓN Lea atentamente este manual antes de utilizar el HI-200 serie Hybridisation Oven. ADVERTENCIA LAS ALTAS TEMPERATURAS SON PELIGROSAS, ya que pueden ocasionar quemaduras graves a los operarios y prender el material combustible. Antylia Scientific ha puesto gran cuidado en el diseño de estos aparatos para proteger al usuario de cualquier peligro;... -
Page 15: Cable De Repuesto
Sitúe la unidad sobre una mesa plana o en una campana de laboratorio si es necesario, y asegúrese de que los orificios de ventilación situados en la parte inferior no tienen ninguna obstrucción. Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento. Encienda el instrumento: Interruptor de alimentación encendido Interruptor de alimentación apagado... -
Page 16: Specifications
15kg Shipping weight 21kg Note: The HI-200 Series Hybridisation Ovens include a pre-set over-temperature cut-out. #Temperature measured in the centre of each tube. *Large tubes are fitted with seals suitable for use up to 70°C. For higher temperatures, seals part number 6101488 are required. -
Page 17: Installation
2. Place some water in a hybridisation tube and fit the tube in the HI-200 Series Hybridisation Oven. Adjust the feet on the base of the unit by unscrewing them anticlockwise slightly until the unit is level. -
Page 18: Fixing Procedure For Two Hybrigenes
FHB4DSTK: Stacking and wall mounting kit for two units Description Part code Quantity Wall Bracket 6105214 M4 x 8 Pozi Pan Screw 6008652 M4 Crinkle Washers 6008639 Thumbscrew 6009552 Wall Plate 6105213 Stacking Plate 6105212 FHB4DKIT: Stacking and wall mounting kit for three units Description Part code Quantity... -
Page 19: Fixing Procedure For Three Hybrigenes
8. Put the hybridisers in the position you want to use them. 9. Position the wall plate and mark the position of the holes. 10. Use the appropriate screws and fixings to attach the wall plate to the wall; ensure that the screws are tight. -
Page 20: Setting The Temperature
SETTING THE TEMPERATURE Controller display 1. Press the ’P’ button on the controller and the set temperature will be displayed. 2. To increase the set temperature, press the Increase button. 3. To decrease the set temperature, press the Decrease button. 4. -
Page 21: Hybridisation Tubes
HYBRIDISATION TUBES The hybridisation tubes are manufactured from durable thick borosilicate glass with a non-drip design. The tubes must be checked regularly and replaced if any damage occurs. Any damage to the ends of the tubes can cause them to break or leak when the end caps are inserted. Large (80mm diameter) tube assembly (FHB16) Remove the tube end cap which has the two holes in it. -
Page 22: Mini (4 X 32Mm) Tube Assembly (Fhb41 And Fhb61)
Mini (4 x 32mm) tube assembly (FHB41 and FHB61) The mini tubes must be used in the FHB61 multi-tube holder. Unscrew the end cap of the tube. Place the filters and the liquids appropriate to the protocol in the tube and replace the end cap. Fix the tube into a multi-tube holder, using the springs, and ensure that there are four tubes in the holder. -
Page 23: Installing The Hybridisation Tubes
INSTALLING THE HYBRIDISATION TUBES 1. Pre-heat the oven to the required temperature. 2. Insert the tubes or tube holder into the Hybridisation Oven ensuring that they rotate freely and the end caps engage on the drive rollers on the right had side of the chamber. 3. -
Page 24: User Maintenance
DO NOT TIP THE TUBE SO THAT THE COLOURED END IS DOWN AS THIS WILL CAUSE A SPILLAGE. 3. The unit has been designed to conform to international safety specifications and is fitted with an over-temperature cut-out. If, for any reason, the temperature rises above a safe level for the instrument, the over temperature protection cuts out the heater, but the tubes continue to rotate. -
Page 25: Additional Information
FAULT FINDING Should you have any problems with your HI-200 Series Hybridisation Oven which cannot be easily remedied, you should contact your supplier and return the unit if necessary. Contact the Antylia Scientific Ltd. Service Department (details given below) to obtain information on how to return the unit. -
Page 26: Spares And Accessories
SPARES AND ACCESSORIES The following spares and accessories may be purchased from Antylia Scientific Ltd. or their dealers. All Cole-Parmer tubes are made from durable Borosilicate glass Contact Antylia Scientific Ltd. or your Cole-Parmer dealer for further details. Part code Description Large (80mm diameter) hybridisation tube assembly complete with sealing rings and FHB16... - Page 27 This product meets the applicable CE Directives that interference will not occur in practise. Where and UKCA Legislation for radio frequency there is a possibility that injury, damage or loss might interference and may be expected not to occur if equipment malfunctions due to radio interfere with, or be affected by, other equipment with similar frequency interference, or for general advise before qualifications.
