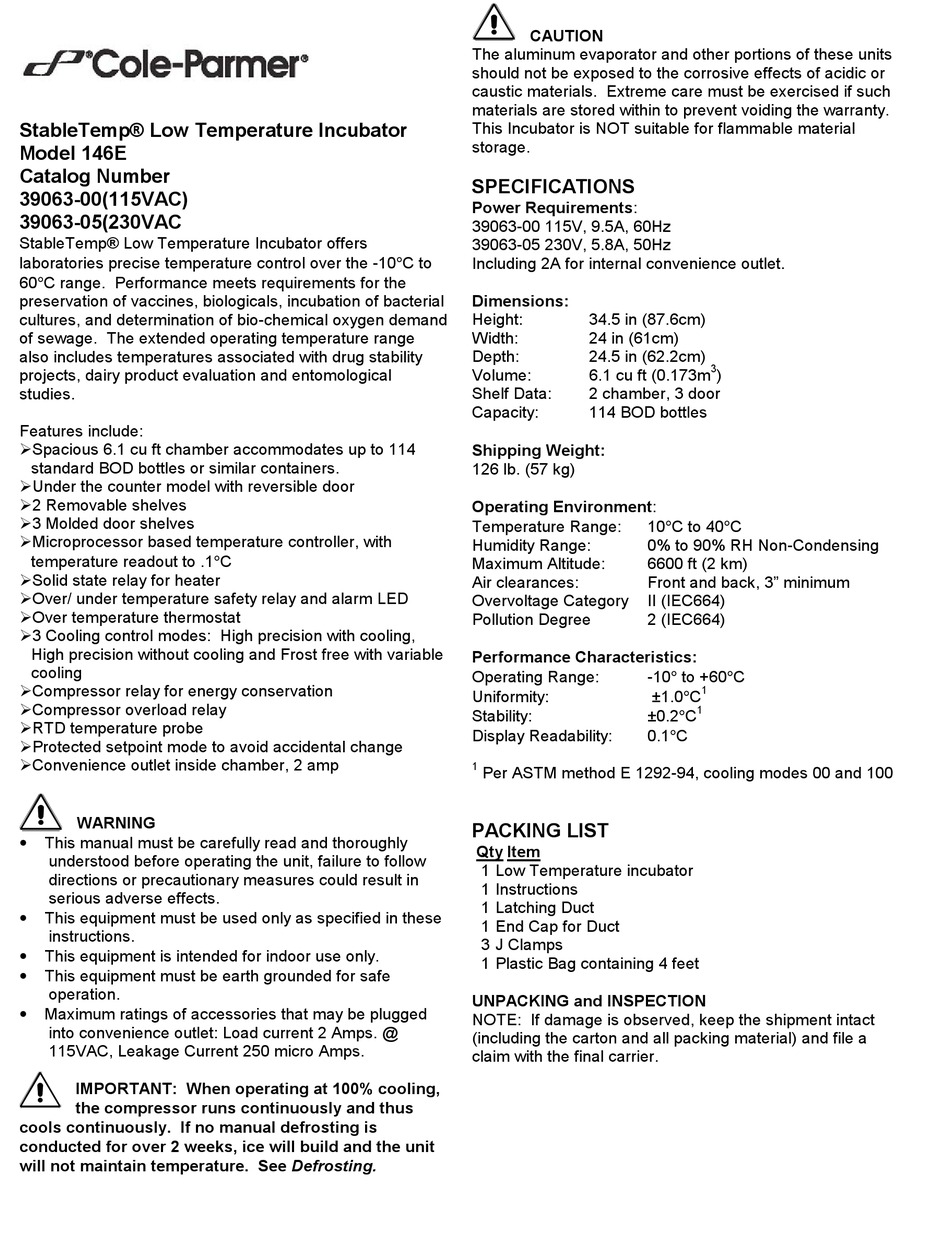

Cole Parmer StableTemp 146E Manual

StableTemp® Low Temperature Incubator
Model 146E
Catalog Number
39063-00(115VAC)
39063-05(230VAC
StableTemp® Low Temperature Incubator offers
laboratories precise temperature control over the -10°C to
60°C range. Performance meets requirements for the
preservation of vaccines, biologicals, incubation of bacterial
cultures, and determination of bio-chemical oxygen demand
of sewage. The extended operating temperature range
also includes temperatures associated with drug stability
projects, dairy product evaluation and entomological
studies.
Features include:
ØSpacious 6.1 cu ft chamber accommodates up to 114
standard BOD bottles or similar containers.
ØUnder the counter model with reversible door
Ø2 Removable shelves
Ø3 Molded door shelves
ØMicroprocessor based temperature controller, with
temperature readout to .1°C
ØSolid state relay for heater
ØOver/ under temperature safety relay and alarm LED
ØOver temperature thermostat
Ø3 Cooling control modes: High precision with cooling,
High precision without cooling and Frost free with variable
cooling
ØCompressor relay for energy conservation
ØCompressor overload relay
ØRTD temperature probe
ØProtected setpoint mode to avoid accidental change
ØConvenience outlet inside chamber, 2 amp
WARNING
•
This manual must be carefully read and thoroughly
understood before operating the unit, failure to follow
directions or precautionary measures could result in
serious adverse effects.
•
This equipment must be used only as specified in these
instructions.
•
This equipment is intended for indoor use only.
•
This equipment must be earth grounded for safe
operation.
•
Maximum ratings of accessories that may be plugged
into convenience outlet: Load current 2 Amps. @
115VAC, Leakage Current 250 micro Amps.
IMPORTANT: When operating at 100% cooling,
the compressor runs continuously and thus
cools continuously. If no manual defrosting is
conducted for over 2 weeks, ice will build and the unit
will not maintain temperature. See Defrosting.
CAUTION
The aluminum evaporator and other portions of these units
should not be exposed to the corrosive effects of acidic or
caustic materials. Extreme care must be exercised if such
materials are stored within to prevent voiding the warranty.
This Incubator is NOT suitable for flammable material
storage.
SPECIFICATIONS
Power Requirements:
39063-00 115V, 9.5A, 60Hz
39063-05 230V, 5.8A, 50Hz
Including 2A for internal convenience outlet.
Dimensions:
Height: 34.5 in (87.6cm)
Width: 24 in (61cm)
Depth: 24.5 in (62.2cm)
Volume: 6.1 cu ft (0.173m
Shelf Data: 2 chamber, 3 door
Capacity: 114 BOD bottles
Shipping Weight:
126 lb. (57 kg)
Operating Environment:
Temperature Range:
Humidity Range:
Maximum Altitude:
Air clearances:
Overvoltage Category
Pollution Degree
Performance Characteristics:
Operating Range:
Uniformity:
Stability:
Display Readability:
1
Per ASTM method E 1292-94, cooling modes 00 and 100
PACKING LIST
Qty Item
1 Low Temperature incubator
1 Instructions
1 Latching Duct
1 End Cap for Duct
3 J Clamps
1 Plastic Bag containing 4 feet
UNPACKING and INSPECTION
NOTE: If damage is observed, keep the shipment intact
(including the carton and all packing material) and file a
claim with the final carrier.
3
)
10°C to 40°C
0% to 90% RH Non-Condensing
6600 ft (2 km)
Front and back, 3" minimum
II (IEC664)
2 (IEC664)
-10° to +60°C
1
±1.0°C
1
±0.2°C
0.1°C
