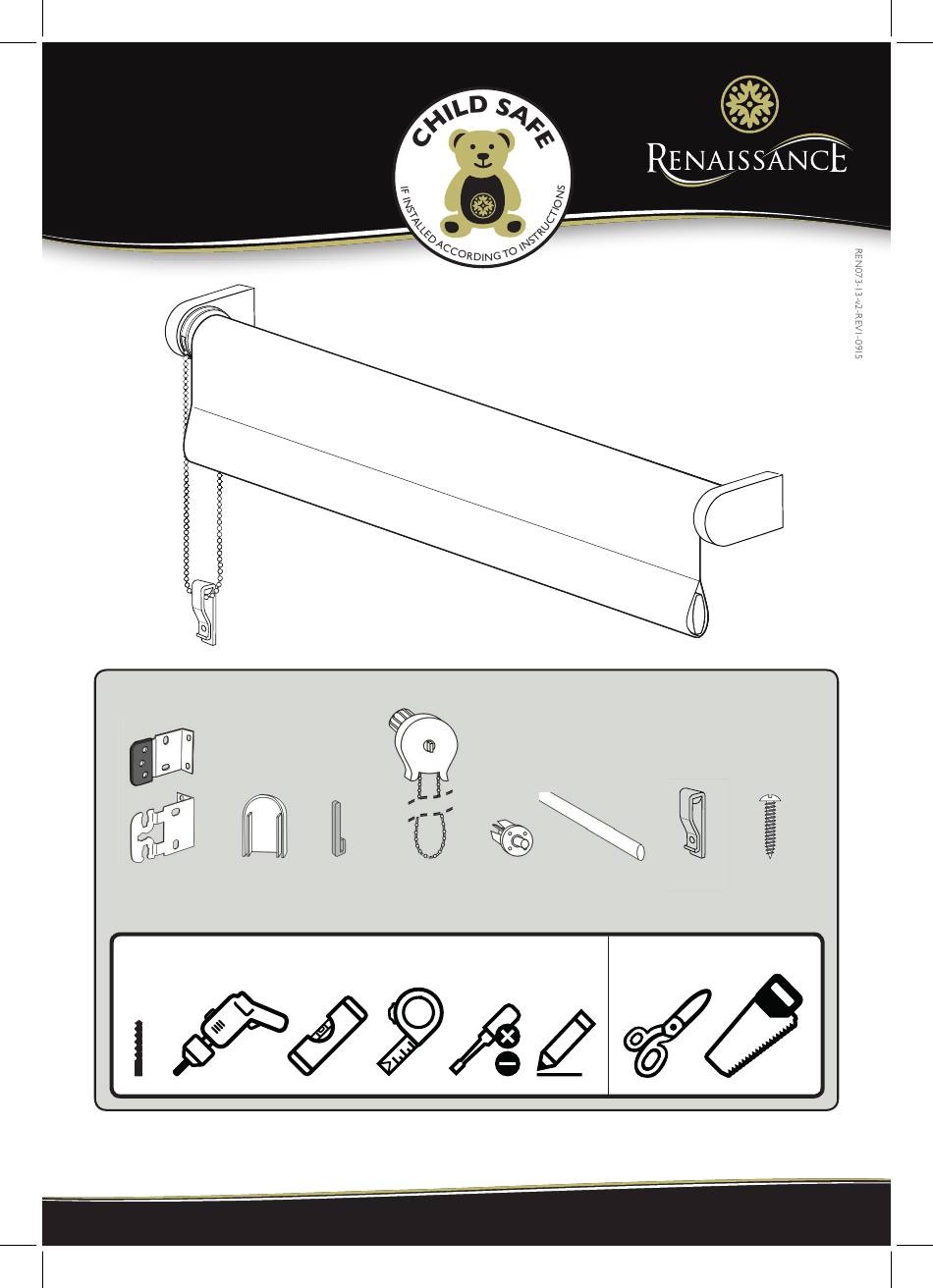

Instruction Manual

Roller Blinds

Assembly Accessories:

End Brackets

Ø 6mm

Read these instructions carefully before installing and using the Child Safety device.

See back page for further details

REN073_13_INST_Roller-Blind_v2.indd 2

Bracket

Winder

Covers

Lock

with chain

Pivot

Bottom

Roller

weight bar

To adjust width:

www.rca-uk.com

P-clip

Screws

and plugs

28/08/2015 11:28

Table of Contents

Do you have a question about the CHILD SAFE and is the answer not in the manual?

Page 1 Instruction Manual Roller Blinds Assembly Accessories: End Brackets Bracket Winder Winder Pivot Bottom P-clip Screws Covers Lock with chain Roller weight bar and plugs Tools required for installation: To adjust width: Ø 6mm Read these instructions carefully before installing and using the Child Safety device. See back page for further details www.rca-uk.com REN073_13_INST_Roller-Blind_v2.indd 2...
Page 2 To Adjust Blind Width Blind Setup Install blind parts Decide which end you want to have the chain – Insert the Bottom Weight Bar, the Winder the bracket instructions opposite are for installing With Chain and the Pivot Roller into the the blind with the chain to the right –...
Page 3 Bracket Positioning and Fixing Mount the brackets as desired. Wall Fix Top Fix Recess Side Fix Insert Bracket Covers Blind Operation Slide the bracket covers in place as shown Pull on the chain loop to operate the blind. Always keep at least a full revolution of fabric on the roller. Fit Child Safety Device –...
Page 4 Installing the Child Safety P-clip The child safety P-clip is designed for fitting onto an adjacent surface to the blind in order to eliminate a hazardous cord. 1 Pull the chain up into the child safety clip. 2 Place the child safety clip onto an adjacent wall or where the clip is fixed in such a way that the loop cannot be easily reached.
