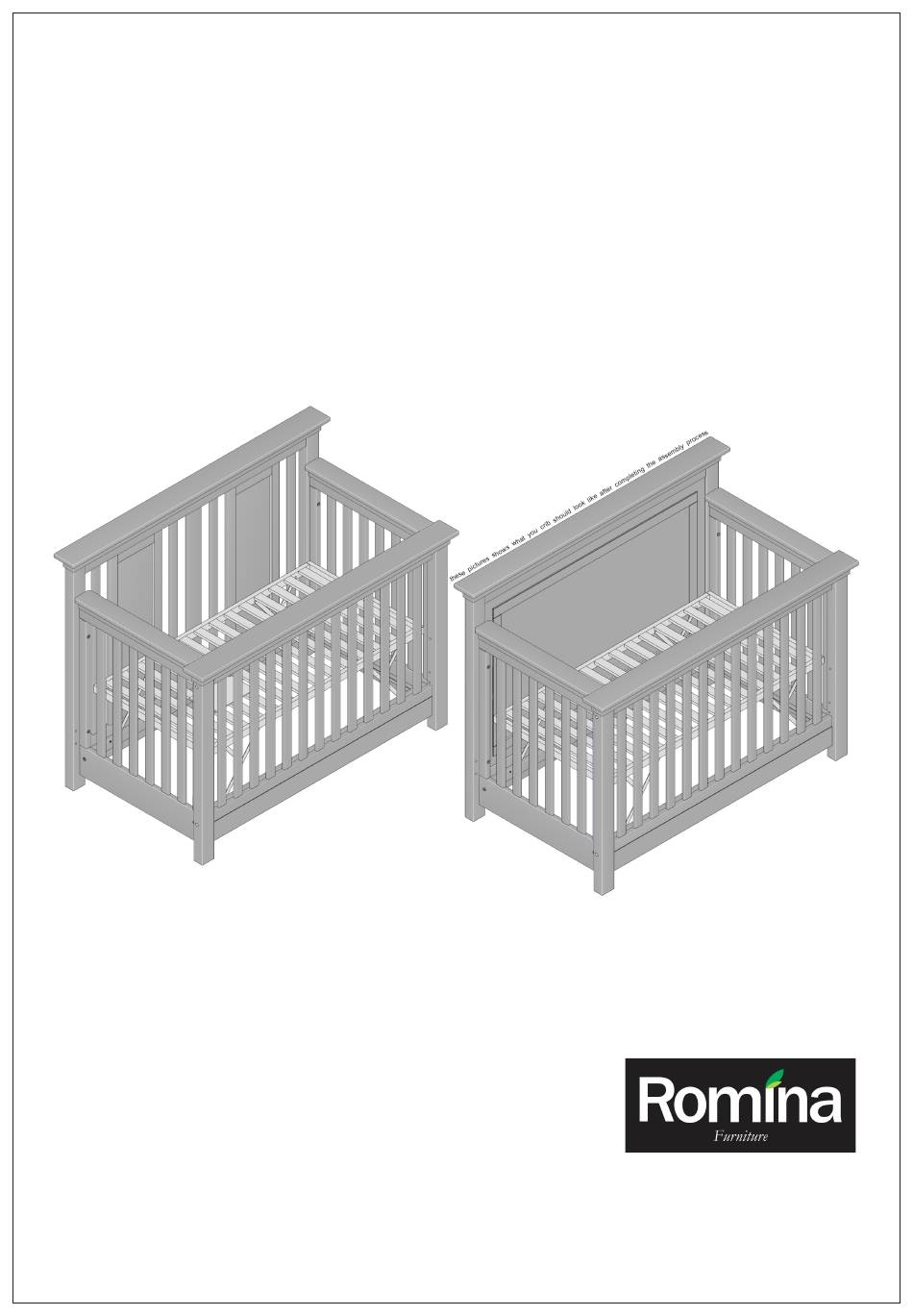

ASSEMBLY INSTRUCTIONS FOR THE

5501/5502 KARISMA

THIS CRIB CONFORMS TO APPLICABLE

REGULATIONS

PROMULGATED

THE

CONSUMER

PRODUCT

COMMISION AND BY THE AMERICAN

SOCIETY FOR TESTING AND MATERIALS.

READ

ALL

INSTRUCTIONS

BEFORE

ASSEMBLING

CRIB. KEEP THE INSTRUCTION

BOOKLET FOR FURTHER USE.

NEVER

USE

THE

PLASTIC

SHIPPING

BAGS

PLASTIC FILM AS MATTRESS

COVERS, AS THEY CAN CAUSE

SUFFOCATION.

MAKE SURE TO SELECT THE

CORRECT

SIZE

MATTRESS.

INFANTS CAN SUFFOCATE IN THE

GAPS BETWEEN THE CRIB SIDES

AND A MATTRESS THAT IS TOO

SMALL.

CONVERTIBLE CRIB

SAFETY

THE

WARNING: THE PROPER USE OF THIS

OTHER

CRIB IS IMPORTANT FOR YOUR BABY'S

SAFETY. IN ORDER TO KEEP YOU

BABY SAFE AND SECURE, AS WELL AS

AVOID POTENTIAL INJURY OR DEATH,

PLEASE READ AND BECOME FAMILIAR

WITH ALL THE WARNINGS, CAUTIONS

AND INSTRUCTIONS IN THIS BOOKLET.

KEEP THIS INSTRUCTION BOOKLET

FOR FURTHER USE.

DO NOT THROW THIS BOOKLET AWAY!

4300 Northlake Ct, Ste E, Charlotte,

NC 28216

Phone: 980-585-1460

www.rominafurniture.com

Need help?

Do you have a question about the KARISMA 5501 and is the answer not in the manual?

Questions and answers

Summary of Contents for Romina KARISMA 5501

Page 1 ASSEMBLY INSTRUCTIONS FOR THE 5501/5502 KARISMA CONVERTIBLE CRIB THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED CONSUMER PRODUCT SAFETY COMMISION AND BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS. READ INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP THE INSTRUCTION BOOKLET FOR FURTHER USE. NEVER PLASTIC WARNING: THE PROPER USE OF THIS...
Page 2 FASTENERS, MISSING PARTS, OR SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. SECURELY TIGHTEN LOOSE BOLTS AND OTHER FASTENERS. DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT ROMINA FURNITURE FOR REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT SUBSTITUTE PARTS.
Page 3 Wood, like any natural material is likely to present variations of grain and texture which will result in slight color variations or richness in the finish. These differences make each Romina Furniture item as beautiful and unique as you and your baby are.
Page 4: Box Content
Please refer to this number order to identify the correct one. Be sure to use the proper size in the event of needing to contact ROMINA and shape specified in the instructions. Be sure to COMPLETELY FURNITURE or your local supplier.
Page 5 STEP 1 (Two adults are required in order to complete this step) Attach one of the stabilizing bars (S) to the left panel (L) of the crib using 1 Allen bolt (3), 1 large lock washer (6) and 1 barrel nut (4). Align the tenon attached at the end of the stabilizing bar with the upper hole drilled on the inner face of the left side of the crib.
Page 6 STEP 2 Assemble the result of STEP 1 and the right side panel (R), using the technique described in STEP 1. Do not completely tighten the bolts at this step, you will be asked to do this later. FIGURE 2...
Page 7 FIGURE 3 WARNING! COMPLETELY TIGHTEN! STEP 3 (One adult is required in order to complete this step) There are three different positions for the mattress support (the highest one being intended for a newborn child and the lowest one for a child that is maximum 35” tall - see cautions note). You must adjust the height of the mattress support (depending on your child’s height), by inserting all 4 bolts and nuts (Y) in the same position (see FIGURE 2).
Page 8 STEP 4 Attach the mattress support (MS) to the stabilizing bars (previously mounted in STEP 1) by using the 4 round head bolts (5), 4 washers (7) and a Phillips screwdriver (which is not included). The lock washer must be attached to the bolt before inserting it through the metal bracket of the mattress support. At this point, you must completely tighten all 8 bolts (5+7, Y) involved in the mattress support fixing process, by using a Phillips screwdriver (which is not supplied).
Page 9 STEP 5 Attach the part of the crib resulted after STEP 4 to the back panel (B), uting 4 Allen bolts (3), 4 large lock washers (6) and the Allen wrench supplied (1). Do not completely tighten the bolts at this point, you will be asked to do so later. FIGURE 5...
Page 10 STEP 6 Attach the part of the crib resulted after STEP 5 to the front panel (F), using 4 Allen bolts (3), 4 large lock washers (6) and the Allen wrench supplied (1). Do not completely tighten the bolts at this point, you will be asked to do so later. FIGURE 6...
Page 11 STEP 7 Using the Allen wrench (1) supplied , you must completely tighten all 12 Allen bolts (3+6) which have remained untightened from all previous steps (see FIGURE 7). REMINDER There are a total of 12 Allen bolts which need tightening, distributed as following: - 4 bolts (3+6) in the upper part of the left panel (L);...
Page 12 Once having completed STEP 7, attach the storage pouch supplied to the mattress support using the two plastic ties as pictured in FIGURE 8. Store this instruction booklet for further use. FIGURE 8...
Page 13 ASSEMBLY INSTRUCTIONS FOR THE 5501/5502 KARISMA DAY BED OPTION THIS CRIB CONFORMS TO APPLICABLE REGULATIONS PROMULGATED CONSUMER PRODUCT SAFETY COMMISION AND BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS. READ INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP THE INSTRUCTION BOOKLET FOR FURTHER USE. NEVER PLASTIC WARNING (FOR DAY BED OPTION ONLY):...
Page 14 STEP A Remove both the back panel (B) and the front panel (F) by completely unscrewing all 8 Allen bolts (3+6) using the supplies Allen wrench (1) (see FIGURE A). Keep the bolts and the washers nearby for the following steps. FIGURE A...
Page 15 STEP B (Two adults are required in order to complete this step) Remove all 4 round head bolts & washers (Y) located on your mattress support. FIGURE B...
Page 16 STEP C Adjust the mattress support to its lowest setting, then completely tighten all 4 bolts (Y) in their new position by using a Phillips screwdriver (which is not supplied). For more details on mattress support height adjustment see “ADJUSTING THE HEIGHT OF YOUR MATTRESS” - FIGURE 3. WARNING: IN ORDER TO KEEP YOUR BABY SECURE AND SAFE AND TO AVOID POTENTIAL INJURY OR DEATH, IT IS VERY...
Page 17 STEP D Take the front panel (F). Using the supplied Allen wrench (1) or a Phillips scredriver (which is not included), rotate the cam fitting (located on the inner upper side of the right leg) counterclockwise, until the little arrow points upwards (see the detailed view in FIGURE D).
Page 18 STEP E Using the supplied Allen wrench (1), completely unscrew all 4 Allen bolts & washers (x) (previously mounted in the factory), located 2 by 2 on the lateral sides of the legs. Afterwards, remove the middle panel resulted by pulling it upwards (see FIGURE E).
Page 19 STEP F Place and tighten the prviously unounted screw-on dowels into the wooden blocks (WB). Position the wooden blocks on top of the legs and insert the tenons in their holes, making sure that the rounded metallic pieces are oriented as shown in FIGURE D, with the little arrow pointing upwards.
Page 20 STEP G Assemble the middle part of the crib resulted after completing STEP C with the back panel (B) and the front panel resulted after completing STEP F, using 8 Allen bolts (3), 8 washers (6) and the Allen wrench supplied (1). Now, completely tighten all 8 Allen bolts mentioned above.
Page 21 STARTING FROM SCRATCH *FOLLOW STEPS 1 TO 4 FROM THE CRIB ASSEMBLY INSTRUCTIONS. WHEN YOU REACH STEP 3, PLEASE ADJUST THE MATTRESS SUPPORT TO ITS LOWEST POSITION (SEE STEPS B & C FOR MORE DETAILS). * FOLLOW STEPS D TO G FROM THE DAY BED OPTION ASSEMBLY INSTRUCTIONS. Please, store this instruction booklet for future use.
Page 22 NOTE: YOUR 5501 CONVERTIBLE CRIB CAN BE CONVERTED INTO A FULL SIZE BED WITH THE PURCHASE OF ROMINA ITEM CODE CKC 5501 (CONVERSION KIT FOR CRIBS, CODE 5501). THE ASSEMBLY INSTRUCTIONS FOR THE FULL SIZE BED OPTION CAN BE FOUND INSIDE OF THE CKC 5501 PACKAGE.
Page 23 PERIODICALLY INSPECT CRIB FOR DAMAGED HARDWARE, LOOSE JOINTS OR SPLINTERED EDGES. DO NOT USE CRIB IF PARTS ARE DAMAGED OR BROKEN! CONTACT YOUR DEALER OR ROMINA FURNITURE FOR ASSISTANCE AND REPLACEMENT PARTS. PLEASE BE SURE TO HAVE YOUR MODEL CODE WRITTEN DOWN BEFORE YOU MAKE CONTACT.
Page 24 Regular cleaning with mild soap on a soft cloth, followed by a clean damp cloth, then a dry cloth, will preserve the original luster and beauty of this fine finish of your Romina Furniture product. Visit www.rominafurniture.com for updates, special offers and more new designs.
