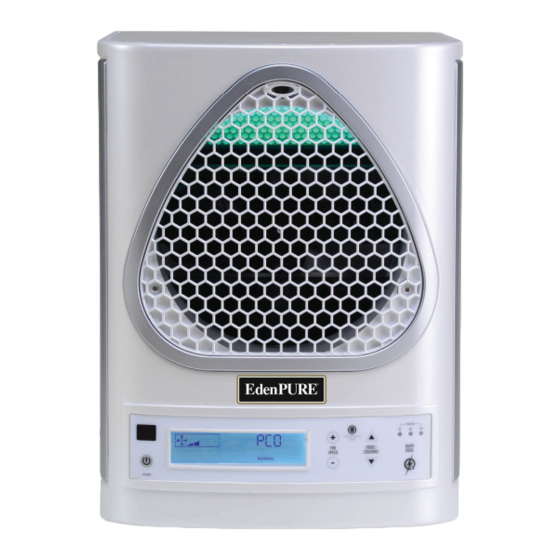

- Page 1 EdenPURE ® XL100 OxiLeaf ® Model No. A6004 Owner’s Manual PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Specifications
Specifications Unit: Model Number: A6004 Size: 12" x 12" x 9" Weight: 8.8 lb. Input: 100-240 VAC 50/60 Hz 2.0 A PCO Cell: Normal Mode Output: < 0.02 ppm ozone (ambient room concentration) Purification Plate: High Mode Output: 25-360 mg ozone per hour Ionization: 24-30 KV, 20-30 Khz Ion Generation Pulsator 6 KV DC Needle Ion Generator... -
Page 3: Product Introduction
Product Introduction Benefits The EdenPURE® OxiLeaf® XL100 brings the most advanced air purification technology into the comfort of your home. Unlike other air purifiers, the OxiLeaf® XL100 does more than simply filter the air in your home. Incorporating technology like photo catalytic oxidation, high level negative ionization, scalable purification and electrostatic filtration allows the OxiLeaf®... - Page 4 The EdenPURE OxiLeaf XL100 Four Technologies ® ® Electrostatic Filtration An advanced electrostatic filter is included with the OxiLeaf® XL100 to help keep the unit clean while at the same time filtering out particles. Unlike expensive HEPA filters, the electrostatic filter is washable and can be used over and over again.
- Page 5 Diagrams...
- Page 6 Not for use in occupied room 5. Mode/Coverage Setting 2. LCD Screen 6. Away Mode 3. Fan Speed Setting Not for use in occupied room EdenPURE ® Away Mode Timer Indicator Fan Speed Indicator Not for use in occupied room Photocatalytic-Oxidation Mode...
-
Page 7: Initial Setting
Set-Up Ideal Placement There are several important factors to consider when selecting a location for your OxiLeaf XL100: ® • Make sure the location you choose is not directly behind your HVAC air return duct. You do not want the air return blowing in front of the unit. -
Page 8: Operating The Unit
Operations Operating the Unit LCD Reminders Turning the Unit On/Off Replace Plate Press the Power button on the Control Panel or When “Replace Plate” appears, the Purification use the Remote to turn the unit on. The unit will Plate has reached the end of its useful life and initially be set to Normal Mode. - Page 9 Disassembly Tools Required You will need a #2 Phillips screwdriver. Workspace Recommendations A countertop or flat surface is ideal for disassembling/assembling your unit. It is recommended to use a small bowl or cup to hold any screws so they are not lost during the disassembly/assembly process. Disassembly Instructions •...
- Page 10 Assembly Tools Required You will need a #2 Phillips Screwdriver Installing the PCO Cell • Position the PCO Cell inside the unit so that the two tabs are on the bottom and interior side of the PCO Cell. Ensure the holes in the two tabs fit over the two Screw Posts. Screw the Thumb Nuts into the Screw Posts until they are snug.
-
Page 11: Cleaning The Exterior Of The Unit
Cleaning Your unit should be cleaned monthly to be kept running at peak performance. Depending on the pollution and odor levels present during initial set-up, it is advisable to clean the unit more frequently until the environment has been treated. Cleaning the Exterior of the Unit Wipe down the exterior with a damp cloth or use compressed air or a vacuum cleaner to remove dust. -
Page 12: Troubleshooting
PCO Cell to ensure the two brass Thumb Screws securing the PCO Cell are installed properly. Warranty The EdenPURE® OxiLeaf ® XL100 comes with a 1 year limited component warranty. If your unit does not appear to be working properly, please contact our service department by calling 1-800-225-6595. Prior to your call, we encourage you to visit our service related website www.edenpuresupport.com for troubleshooting tips and service...
