Summary of Contents for EdenPURE OxiLeaf

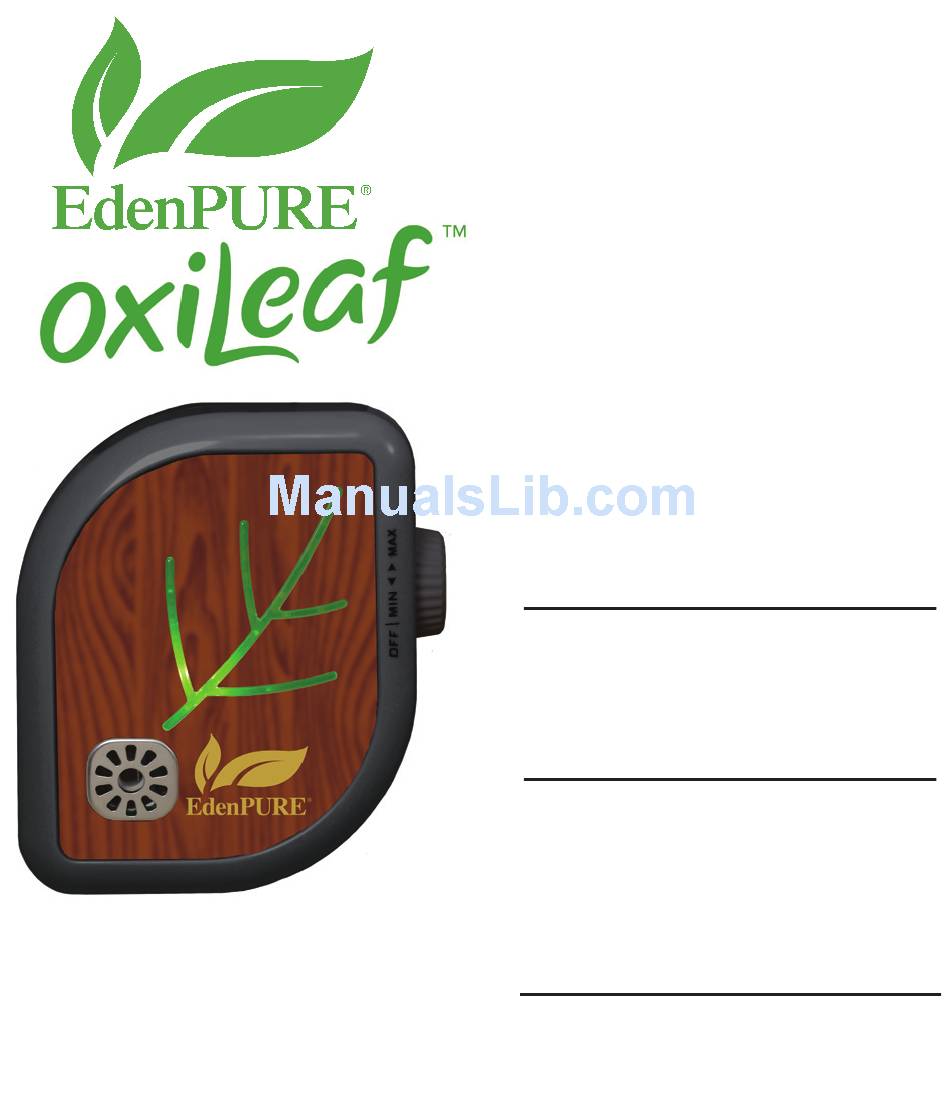

- Page 1 USER’S MANUAL IMPORTANT SAVE THESE INSTRUCTIONS To ensure you get the best results from your OxiLeaf, please read this manual fi rst and keep it for future reference. For additional information, please contact your place of purchase or call 1-800-225-6595 Thank you for choosing EdenPURE ®...
- Page 2 WHEN TO UNPLUG THE EDENPURE OXILEAF ® Unplug OxiLeaf when cleaning it, or if you will be away from it for an extended period of time. SAFE STORAGE AND USAGE Do not plug OxiLeaf into places where flammable materials are stored.
- Page 3 Air Outlet - Port where fresh air is expelled. Control Knob - Adjusts the amount of ozone produced. LED Indicator - Light indicates when power is on. Power Pins - Used to connect OxiLeaf into any standard electrical wall sockets.
- Page 4 INSTALLATION INSTRUCTIONS 1. Remove the unit from its box and protective material from around the unit. Inspect the unit for any visible signs of physical damage. If dam- age is evident, repack and contact customer service. 2. The unit can be placed anywhere in a room, but is not recommended for use within 6 feet of beds in unventilated rooms.
- Page 5 • Almost maintenance free • Plugs directly into 110V outlet MAINTENANCE EdenPURE OxiLeaf air purifier is almost maintenance free; once every ® month the air inlet and outlet should be vacuumed. Disconnect the unit and vacuum using a brush attachment running on its lowest power set- ting.
- Page 6 SPECIFICATIONS Model ..........A5908 Voltage ....AC 110V to 240V, 50/60 Hz Energy Consumption ..... < 11 watts Size ..... 5 1/8” x 4 1/3” x 3 1/2” (L*W*H) Weight ..........7 1/2 oz. Ozone Output ..0.48-0.96 ppm (adjustable) Ambient Noise ..26 dB SPL to 34 dB SPL Recommended Room Size ..up to 100 sq.
- Page 7 EdenPURE ® 7800 WHIPPLE AVE NW CANTON, OH 44767 WWW.EDENPURE.COM 800-225-6595 ©2017 EdenPURE® I-5452 BR11661R-1...
