TpH
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TpH and is the answer not in the manual?

Questions and answers

Related Manuals for triOS TpH

Summary of Contents for triOS TpH

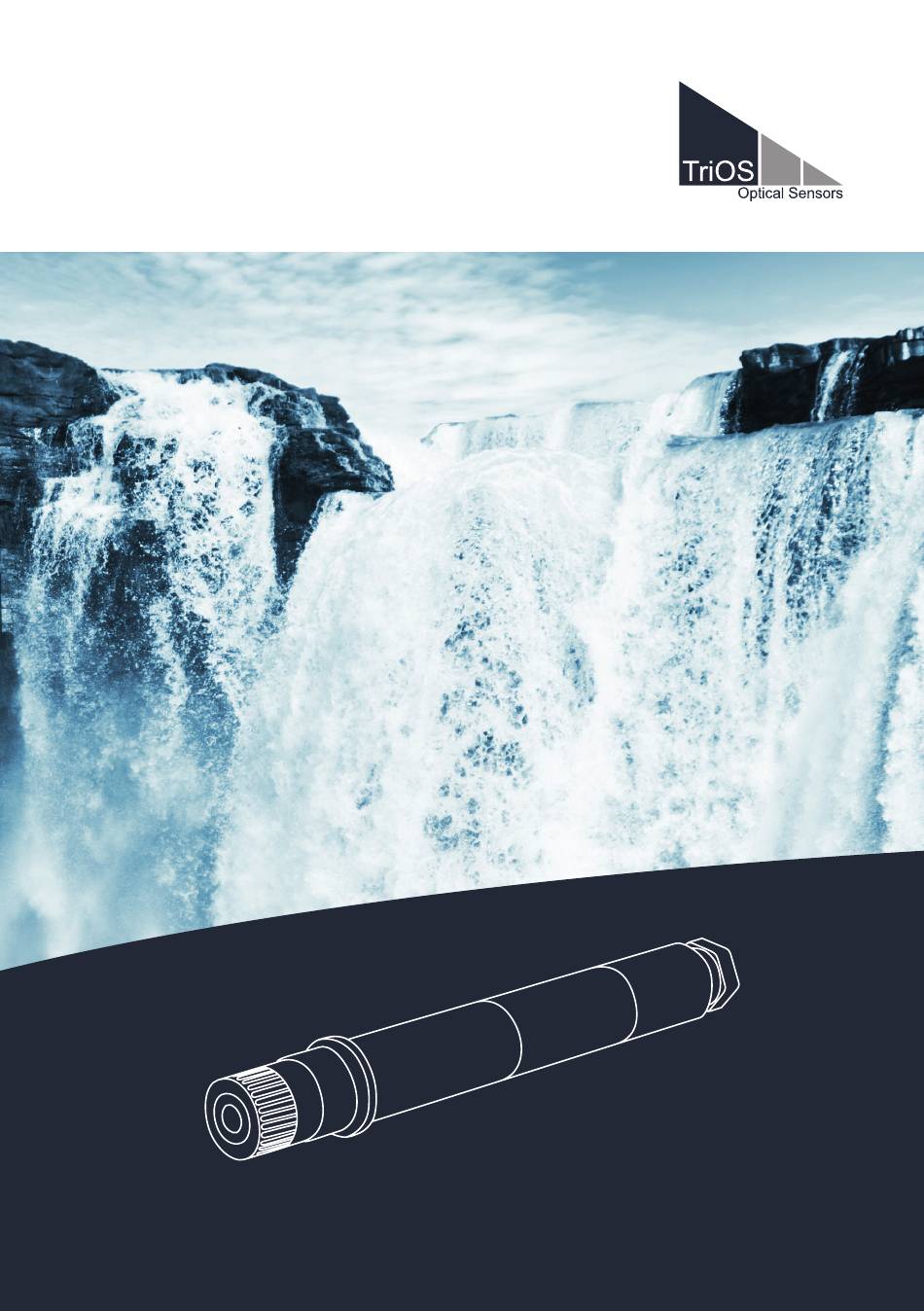

  • Page 1 OPERATING INSTRUCTIONS...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents 1 General Information 6 Malfunction and Maintenance 1.1 Introduction 6.1 Cleaning and Upkeep 1.2 Health and safety information 6.2 Maintenance and Inspection 1.3 Warnings 6.2.1 Temperature Calibration 1.4 Users and Operating Requirements 6.2.2 Replacing the sensor at TriBox3 1.5 Intended use 6.3 Returns 1.6 Proper disposal...

  • Page 4: General Information

    We are glad that you have chosen to purchase our TpH pH sensor. The TpH is based on the electrochemical measuring method with a measuring electrode and a reference electrode. This intel- ligent sensor stores calibrations internally. This enables a "plug-and-play" system without recalibration when the location or measuring transducer is changed.

  • Page 5: Health And Safety Information

    Devices that radiate strong electromagnetic waves can influence the measurement data or result in a malfunction of the sen- sor. Avoid using the following devices in the same room as the TriOS sensor: mobile phones, cordless phones, transmitters/ receivers and other electrical devices that produce electromagnetic waves.

  • Page 6: Warnings

    1.4 Users and Operating Requirements The TpH sensor has been developed for use in industry and science. The target group for the operation of the TpH sensor is technically skilled staff in plants, sewage treatment plants, water plants and institutes. The use of this device often requires the handling of hazardous substances.

  • Page 7: Proper Disposal

    • Drinking water monitoring Use in other media can damage the sensor. For the use of the TpH sensor in other media than those specified in this manual, please contact the customer service of TriOS Mess- und Datentechnik GmbH (support@trios.de).

  • Page 8: Introduction

    Introduction 2 Introduction The TpH is based on the electrochemical measuring method with a measuring electrode and a reference electrode. This intel- ligent sensor stores calibrations internally. This enables a "plug-and-play" system without recalibration when the location or measuring transducer is changed.

  • Page 9: Scope Of Delivery

    Accessories (if applicable) Keep the original packaging of the device in case it needs to be returned for maintenance or repairs. 2.3 Measurement Principle and Design Porous reference compound (HDPE*) Cable bushing Flat pH glass * High-density polyethylene. D01-068en201913 Manual TpH...

  • Page 10: Commissioning

    A line is put on the B line. The differential value between lines A and B is the decisive factor for the transmission robust- ness against conducted noise signals. The protocol used is Modbus RTU. A detailed description of the Modbus RTU protocol for TpH can be found in the annex. D01-068en201913 Manual TpH...

  • Page 11: Use

    The TpH are classified as consumables and therefore have a limited service life, depending on the user's application. Under normal conditions, the typical life span is about one year. The service life of the TpH can be extended by regular cleaning.

  • Page 12: Support Tube Installation

    FOR PHEHT SENSOR (1550 4.3 Support Tube Installation mm, RING SHUTTER) Nozzle STRAIGHT SHORT POLE TriOS provides two adapter pieces for installing the TpH sensor in existing tube systems: PF-ACC-C-00271 FOR C4E/NTU SENSOR (1550 mm, RING SHUTTER) • NPT1 adapter ZM46 (incl. cap nut ZM13) Long pole...

  • Page 13: Calibration

    5 Calibration TpH sensors that have not been used for a long time or that are new should be calibrated before measurement. Calibration should then be repeated at regular intervals. The calibration intervals depend on the type of application. Checks with standard solutions are recommended to determine the intervals.
  • Page 14 Rinse the sensor again with distilled water. • Immerse the TpH in pH4 buffer solution, the sensor head (black) should be immersed as completely as possible (the picture below shows the immersion depth in the beaker with the buffer solution as a red line). Otherwise, measurement fluctuations may occur.

  • Page 15: Measurement Properties

    Alkali error: at pH values above pH12, alkali ions (Li+, Na+) can cause lower pH values to be displayed, as the alkaliions are detected in addition to the H+ ions. • Flow can influence the measured value. 5.2.2 Temperature Compensation Temperature compensation is performed automatically by the integrated temperature sensor (Pt1000). D01-068en201913 Manual TpH...

  • Page 16: Malfunction And Maintenance

    Avoid touching the sensors, as they could be damaged. If this is the case, the functionality of the sensor can no longer be guaranteed. The average lifetime of a TpH sensor is about 1 year. If difficulties occur during calibration, the sensor probably has to be replaced.

  • Page 17: Replacing The Sensor At Tribox3

    Connect the new sensor to the TriBox3. Press “Sensor Scan”. After a short time, the TriBox3 should have recog- nized the new sensor. Display: “Display”  select the display  click on the window(s) for TpH  “Current value” select the value to be dis- played. Automatic measurements: In the „Sensor“...

  • Page 18: Technical Data

    Pt1000 Measurement interval Housing material PPS / PET / NBR Dimensions (L x Ø) ~ 180 x 27 mm ~ 7.1˝ x 1.1˝ Weight 110 g ~ 0.2 lbs Interface RS-485, Modbus RTU Power consumption 0.2 W D01-068en201913 Manual TpH...

  • Page 19: External Dimensions

    ~ +23 °F to +131 °F Storage temperature 0...+80 °C ~ +32 °F to +176 °F Inflow velocity 0...3 m/second ~ 0...10 fps 7.2 External Dimensions Dimension Drawing: TpH 36,5 D01-068en201913 Manual TpH Position Material Polyethylene Terephthalate (PE sensor body...

  • Page 20: Accessories

    Digital 4-channel display and control unit with integrated solenoid valve for pneumatic con- trol TriBox3 is a measurement and control system for all TriOS sensors. The device provides 4 sensor channels with selectable RS-232 or RS-485 function. In addition to the Modbus RTU, various other protocols are available.

  • Page 21: Flowcell For Echem Sensors

    8.4 pH Buffer Set The pH buffer set contains six pH4 and pH7 liquid standards, which are used to calibrate the TriOS pH sensor TpH. Thus, a reliable detection of pH can be guaranteed. Together with the sensor holder and the FlowCell, it further enables you to carry out a quick and precise check of the pH sensor on site.

  • Page 22: Warranty

    Damage resulting from modification or unprofessional attachment of accessories by the customer is not covered by the warranty. NOTICE Opening the sensor voids the warranty! 10 Customer service If you are having a problem with the sensor, please contact the TriOS customer service. Technical support contact: support@trios.de Tel.: +49 (0) 4402 69670 - 0 Fax: +49 (0) 4402 69670 –...

  • Page 23: Contact

    If you have found an error or bug in one of our devices or programs, please let us know: Customer service: support@trios.de General questions / sales: sales@trios.de Website: www.trios.de TriOS Mess- und Datentechnik GmbH Bürgermeister-Brötje-Str. 25 26180 Rastede Germany Tel. +49 (0) 4402 69670 - 0 Fax:...

  • Page 24: Keyword Index

    Health and safety information Biological Safety Intended use Bypass Installation Calibration CE certification Certificates & approvals Cleaning Contact Copyright M12 industrial plug Customer service Maintenance Measurement properties Modbus Dimensions Disposal Normal operation Electrical installation Electromagnetic Waves Operating requirements Flow-through cell D01-068en201913 Manual TpH...
  • Page 25 Keyword Index Product Identification User requirements Rating plate Warnings Reagents Warranty Returns Waste RMA number Safety instructions Scope of delivery Specifications Storage Structure of the sensor Technical specifications Temperature compensation Tube Installation D01-068en201913 Manual TpH...

  • Page 26: Annex

    Bürgermeister-Brötje-Str. 25 D- 26180 Rastede Konformitätserklärung Declaration of Conformity Déclaration de Conformité Die TriOS GmbH bescheinigt die Konformität für das Produkt The TriOS GmbH herewith declares conformity of the product TriOS GmbH déclare la conformité du produit Bezeichnung Product name...
  • Page 27 Write the configuration and calibration. Write single register 0x06 Write the configuration and calibration. Report slave ID 0x11 Read the serial number and firmware version. Standard Modbus server address Upon delivery, the sensor is set to address 20 (0x14). D01-068en201913 Manual TpH...
  • Page 28 The temperature of the medium in °C (original value). 1004 Float Sensor quality index. pH scaled 1500 Float The pH value of the medium (customer scaled). Temperature scaled 1502 Float The temperature of the medium in °C (customer scaled). D01-068en201913 Manual TpH...
  • Page 29 Active calibration – Scaling 6013 Float parameter. Square coefficient of the active calibration to the selected parameter. Active calibration – Square 6015 Float Not used, always 0. Active calibration – Timestamp 6017 Uint32 Time of active calibration. D01-068en201913 Manual TpH...
  • Page 30 Bitmask ADC error 0x0001 ADC upper limit exceeded 0x0002 ADC lower limit not reached 0x0004 FSM invalid status 0x0010 FSM invalid transition 0x0020 FSM insufficient authentication 0x0040 FSM invalid parameter index 0x0100 FSM invalid calibration method 0x0200 D01-068en201913 Manual TpH...
  • Page 31 FSMCtrl optional: trigger measurement, read measurement values calculate and activate temporary 1. measurement 2. measurement calibration save user calibration value value (zero point) trigger measurement after n measurements write target value (register of the measurement parameter) D01-068en201913 Manual TpH...
  • Page 32 Changing to state 9 will save the customer calibration. The previous calibration data is marked as the last calibration and the new calibration data is marked as the active calibration. Once the customer calibration has been saved, the parameters determined during this calibration remain active even after leaving the calibration machine. D01-068en201913 Manual TpH...
  • Page 33 The Parameter Index determines the parameter to be calibrated. The index depends on the parameter list as shown in the measurement register area. The Calibration method is determined by one of the following values: Calibration method Definition State 0x00 No calibration (Reset FSM) – 0x01 Linear (2 point-) calibration (Offset, Scaling) 3, 4 D01-068en201913 Manual TpH...
  • Page 34 Insert buffer pH10 or 4 Stable readings (poll Check read FSM Status register 0x03 5002 Integer until stable) until FSM Status gets 7 Write specified value of stand- 0x10 1000 IEEE 754 IEEE ard solution Float Float D01-068en201913 Manual TpH...
  • Page 35 Calibration is saved. Step 6 Notes: Leave Calibration process 0x06 5000 0x0000 If done between calibra- Check read FSM Status register 0x03 5002 Integer LED gets tion steps, calibration is until FSM Status gets 0 green aborted D01-068en201913 Manual TpH...
  • Page 36 FSM Status 2 Check read FSM Status register 0x03 5002 Integer until FSM Status gets 11 Set FSM Status to 2 again 0x06 5000 0x0102 Check read FSM Status register 0x03 5002 Integer until FSM Status gets 2 D01-068en201913 Manual TpH...
  • Page 37 Calibration is saved. Step 5 Notes: Leave Calibration process 0x06 5000 0x0000 If done between calibra- Check read FSM Status register 0x03 5002 Integer LED gets tion steps, calibration is until FSM Status gets 0 green aborted. D01-068en201913 Manual TpH...
  • Page 38 Annex D01-068en201913 Manual TpH...
