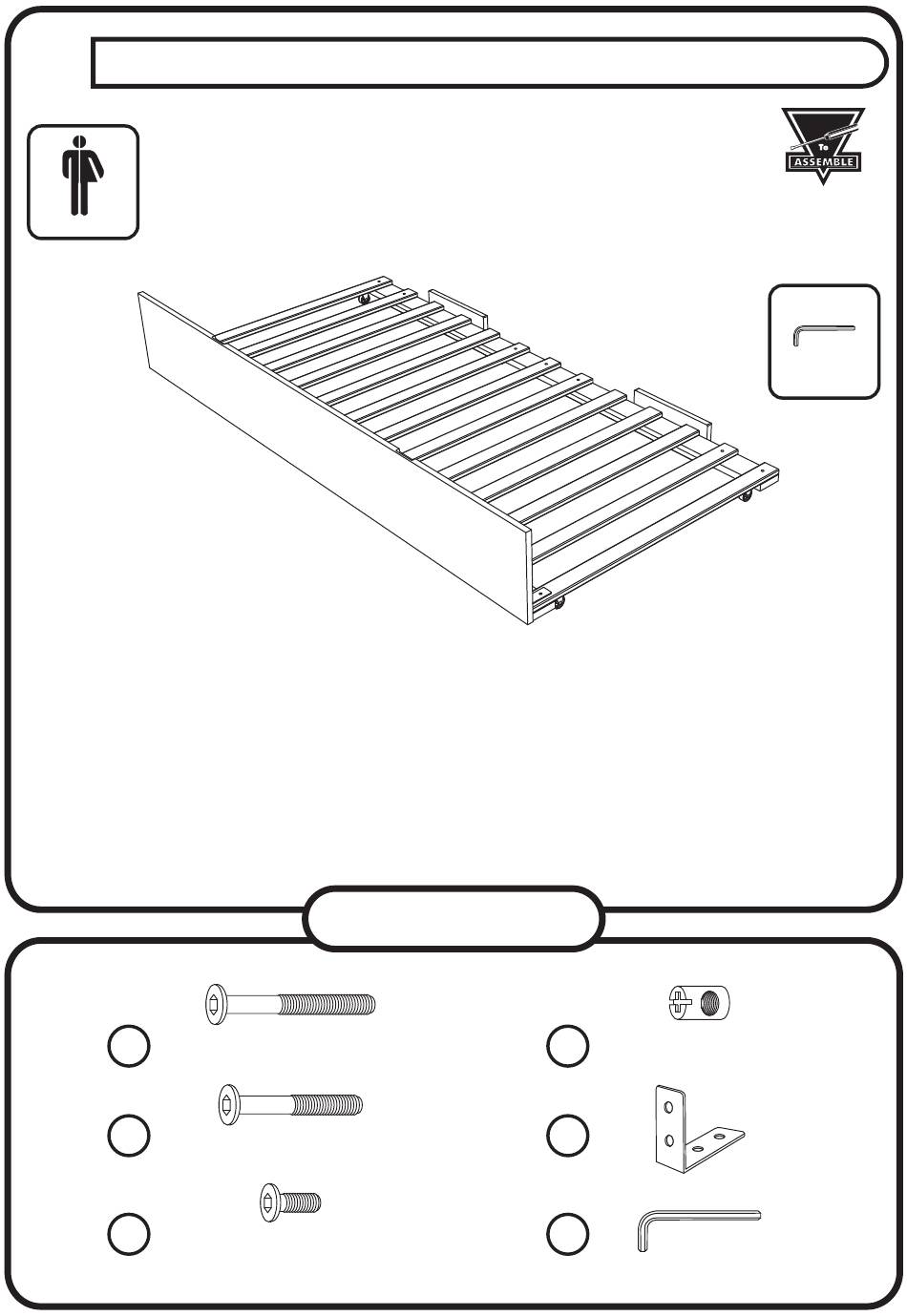

READY To ASSEMBLE LIFESTYLE TRUNDLE BED Assembly Instructions

Adult assembly

NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

JCB M6 X 2 3/8 "( 60mm ) - 4 pcs

JCB M6 X 1 3/4"( 45mm ) - 17 pcs

JCB M6 X 5/8"( 15mm ) - 6 pcs

Fix L bracket to front panel

LIFESTYLE TRUNDLE BED

ASSEMBLY INSTRUCTIONS

Before assembling your Trundle bed, please read through these

instructions carefully. Familiarize yourself with the different parts.

HARDWARE

Spare - 1 pc

Spare - 2 pcs

Barrel nut - 4 pcs

Spare - 1 pc

For JCB M6 X 2"(50mm )

L Bracket - 3 pcs

Allen wrench - 1 pc

Spare - 1 pc

READY

Allen wrench

Page 1 of 4

Table of Contents

Do you have a question about the LIFESTYLE TRUNDLE BED and is the answer not in the manual?

Page 1 LIFESTYLE TRUNDLE BED ASSEMBLY INSTRUCTIONS READY Before assembling your Trundle bed, please read through these instructions carefully. Familiarize yourself with the different parts. Adult assembly Allen wrench HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. JCB M6 X 2 3/8 ”( 60mm ) - 4 pcs...
Page 2 LIFESTYLE TRUNDLE BED PARTS LIST HARDWARE 1 BOX SIDE CROSS RAIL 2 PCS FRONT PANEL 1 PC CENTER CROSS RAIL 1 PC 2 PCS FRONT RAIL 1 PC REAR BLOCK BACK RAIL 1 PC SLAT KIT 2 SET Step 1 Attach the side cross rails (05) and center cross rail (06) to the front and back rail (03)(04), using L bracket (E), JCB M6 X 1 3/4”(B).
Page 3 LIFESTYLE TRUNDLE BED Attach the front panel (02) to the front rail as shown, using JCB M6 X 5/8” (C). Step 2 Tighten with the Allen wrench (F). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Lay the slat kit (08) onto the rail assembly as shown, using JCB M6 X 1 3/4” (B).
Page 4 LIFESTYLE TRUNDLE BED Step 4 Attach the rear block (07) to the back rail as shown. Using JCB M6 X 2 3/8”(A) barrel nut (D), tighten with the Allen wrench (F) JCB M6 X 2 3/8” Adult assembly Barrel nut...
