instructions carefully and familiarize yourself with the different parts.
PARTS LIST
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
1 PC
3
RIGHT LEG
1 PC
4
PACKING STICK
2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Remove packing stick (4) from headboard panel (1) and DISCARD.
Step 2
Attach the legs (2) and (3) to headboard panel (1),
using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (F).
A
A
2
BACK VIEW
B
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.

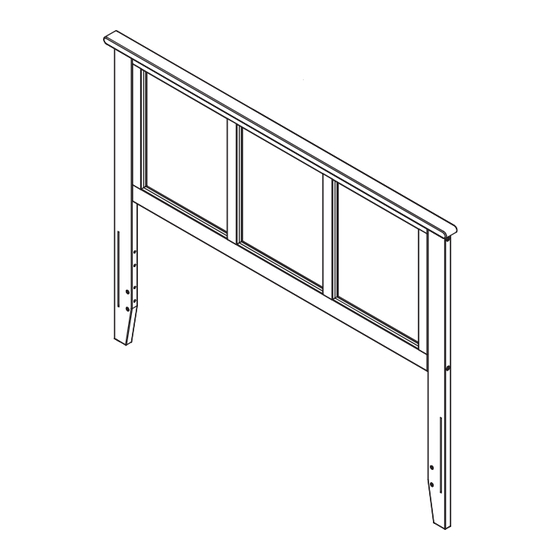

HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
Instructions apply for bed sizes
A
JCB M6 X 120mm (4 3/4") - 4 pcs
B
Barrel nut - 4 pcs
Spare - 1 pc
B
1
A
TWIN > FULL
Spare - 1 pc
Allen wrench - 1pc
F
Spare - 1pc
4
B
B
A
A
3
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
Flat washer - 4 pcs
D
Spare - 1 pc
Split washer - 4 pcs
E
Spare - 1 pc
1
FRONT VIEW
TAPER INSIDE AND
HOLES TO THE FRONT.
READY
TO
ASSEMBLE
Spare - 1 pc
Adult assembly
4
Page 1 of 3
