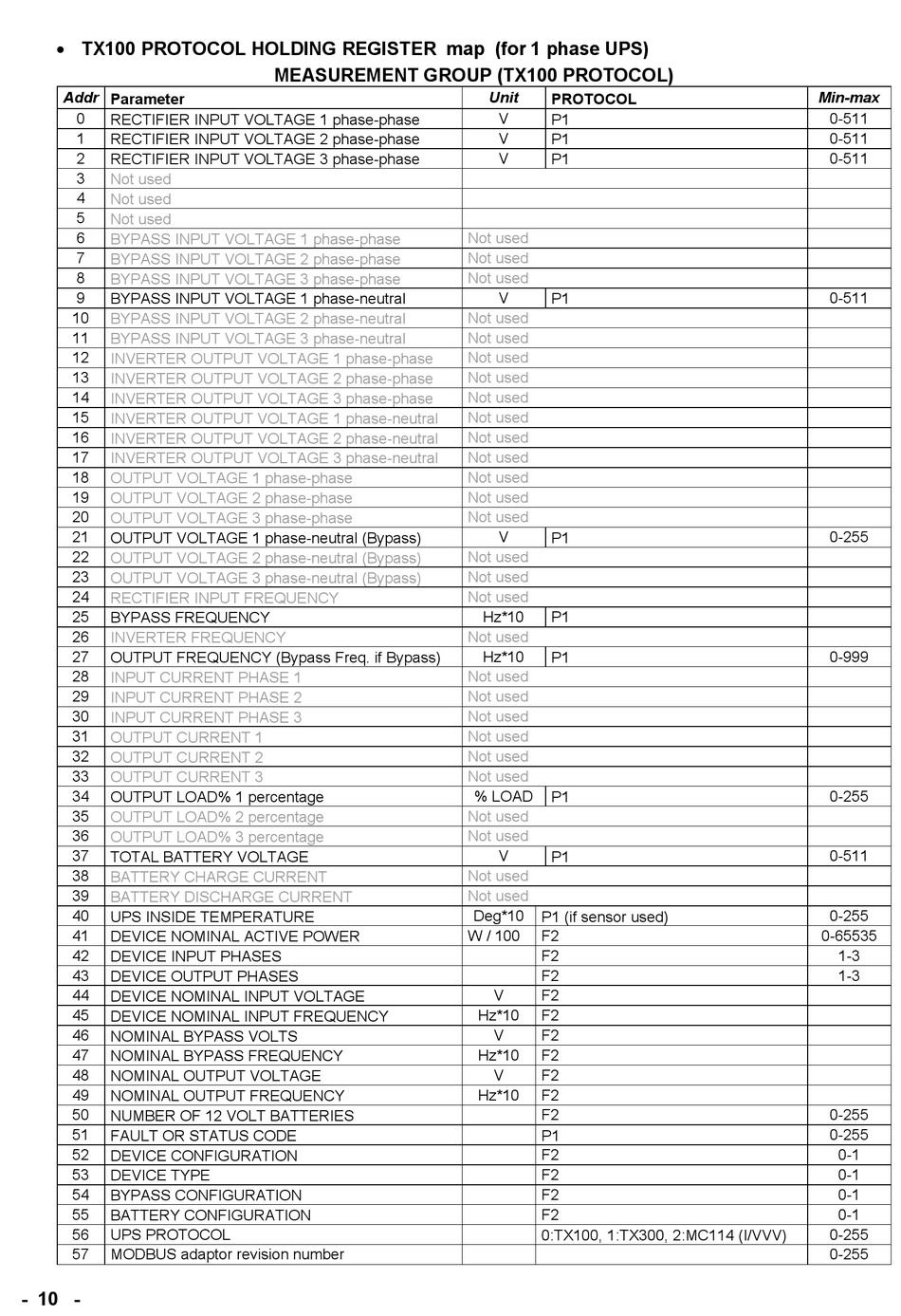

 TX100 PROTOCOL HOLDING REGISTER map (for 1 phase UPS)
Addr Parameter
0
RECTIFIER INPUT VOLTAGE 1 phase-phase
1
RECTIFIER INPUT VOLTAGE 2 phase-phase
2
RECTIFIER INPUT VOLTAGE 3 phase-phase
3
Not used
4
Not used
5
Not used
6
BYPASS INPUT VOLTAGE 1 phase-phase
7
BYPASS INPUT VOLTAGE 2 phase-phase
8
BYPASS INPUT VOLTAGE 3 phase-phase
9
BYPASS INPUT VOLTAGE 1 phase-neutral
10
BYPASS INPUT VOLTAGE 2 phase-neutral
11
BYPASS INPUT VOLTAGE 3 phase-neutral
12
INVERTER OUTPUT VOLTAGE 1 phase-phase
13
INVERTER OUTPUT VOLTAGE 2 phase-phase
14
INVERTER OUTPUT VOLTAGE 3 phase-phase
15
INVERTER OUTPUT VOLTAGE 1 phase-neutral
16
INVERTER OUTPUT VOLTAGE 2 phase-neutral
17
INVERTER OUTPUT VOLTAGE 3 phase-neutral
18
OUTPUT VOLTAGE 1 phase-phase
19
OUTPUT VOLTAGE 2 phase-phase
20
OUTPUT VOLTAGE 3 phase-phase
21
OUTPUT VOLTAGE 1 phase-neutral (Bypass)
22
OUTPUT VOLTAGE 2 phase-neutral (Bypass)
23
OUTPUT VOLTAGE 3 phase-neutral (Bypass)
24
RECTIFIER INPUT FREQUENCY
25
BYPASS FREQUENCY
26
INVERTER FREQUENCY
27
OUTPUT FREQUENCY (Bypass Freq. if Bypass)
28
INPUT CURRENT PHASE 1
29
INPUT CURRENT PHASE 2
30
INPUT CURRENT PHASE 3
31
OUTPUT CURRENT 1
32
OUTPUT CURRENT 2
33
OUTPUT CURRENT 3
34
OUTPUT LOAD% 1 percentage
35
OUTPUT LOAD% 2 percentage
36
OUTPUT LOAD% 3 percentage
37
TOTAL BATTERY VOLTAGE
38
BATTERY CHARGE CURRENT
39
BATTERY DISCHARGE CURRENT
40
UPS INSIDE TEMPERATURE
41
DEVICE NOMINAL ACTIVE POWER
42
DEVICE INPUT PHASES
43
DEVICE OUTPUT PHASES
44
DEVICE NOMINAL INPUT VOLTAGE
45
DEVICE NOMINAL INPUT FREQUENCY
46
NOMINAL BYPASS VOLTS
47
NOMINAL BYPASS FREQUENCY
48
NOMINAL OUTPUT VOLTAGE
49
NOMINAL OUTPUT FREQUENCY
50
NUMBER OF 12 VOLT BATTERIES
51
FAULT OR STATUS CODE
52
DEVICE CONFIGURATION
53
DEVICE TYPE
54
BYPASS CONFIGURATION
55 BATTERY CONFIGURATION
56 UPS PROTOCOL
57 MODBUS adaptor revision number
- 10 -
MEASUREMENT GROUP (TX100 PROTOCOL)
Unit
PROTOCOL
V
P1
V
P1
V
P1
Not used
Not used
Not used
V
P1
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
V
P1
Not used
Not used
Not used
Hz*10 P1
Not used
Hz*10
P1
Not used
Not used
Not used
Not used
Not used
Not used
% LOAD
P1
Not used
Not used
V
P1
Not used
Not used
Deg*10
P1 (if sensor used)
W / 100 F2
F2
F2
V F2
Hz*10 F2
V F2
Hz*10 F2
V F2
Hz*10 F2
F2
P1
F2
F2
F2
F2
0:TX100, 1:TX300, 2:MC114 (I/VVV)
Min-max
0-511
0-511
0-511
0-511
0-255
0-999
0-255
0-511
0-255
0-65535
1-3
1-3
0-255
0-255
0-1
0-1
0-1
0-1
0-255
0-255
