Land Pride CB0546 Operator's Manual

Land Pride CB0546 Operator's Manual

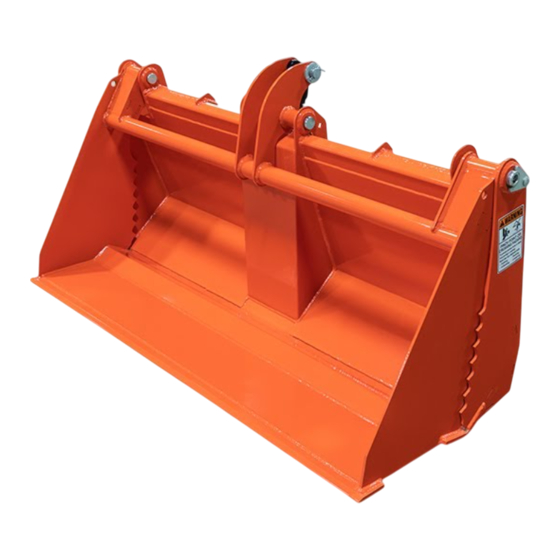

4-in-1 combination bucket
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4-in-1 Combination Bucket
CB0546
76874
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
381-208M
Operator's Manual
Printed 5/24/22

Advertisement

Table of Contents
loading

Related Manuals for Land Pride CB0546

Summary of Contents for Land Pride CB0546

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 5/24/22...

  • Page 2: Machine Identification

    Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Land Pride products. App on your smart phone, open the App, Refer to Parts Manual QR point your phone on the QR code and Locator on this page for take a picture. detailed instructions. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol The SAFETY ALERT SYMBOL indicates there is a potential hazard Careful operation is your best to personal safety and extra precaution must be taken.
  • Page 6  Replace parts on this attachment correct tools and equipment. follow all shutdown procedures with genuine Land Pride parts only.  Always properly match the wheel before leaving the operator’s seat to Do not alter this attachment in a way size to the properly sized tire.

  • Page 7: Avoid High Pressure Fluids

    Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  A slow moving power machine  Never carry riders on tractor or structures (ROPS) and seat belt can create a hazard when driven attachment.

  • Page 8: Important Safety Information

    Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 5/24/22...

  • Page 10: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 11 76878 70314 838-094C Warning: High Pressure Fluid Hazard 1 Place: On the backside of the bucket 76878 70368 838-378C Warning: Pinch Point or Crushing Hazard 2 Places: On the left-hand & right-hand side panels 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...

  • Page 12: Owner Assistance

    The Land Pride 4-in-1 Combination Bucket, Model required. Your Land Pride dealer has trained personnel, CB0546 can be used as a bucket, grapple, scraper, or repair parts, and equipment needed to service the dozer. It is designed exclusively for attaching to Kubota attachment.

  • Page 13: Tractor Requirements

    Table of Contents Section 1: Assembly & Set-up Section 1: Assembly & Set-up Tractor Requirements Pre-Assembly Checklist The CB0546 bucket is designed exclusively for Kubota Check Ref. BX series tractors with a front loader and Universal Quick  Attach Mount.

  • Page 14: Hydraulic Hose Hook-Up

    2. Check for and remove any debris in the hitch areas immediate emergency medical care or gangrene may result. before hooking-up to the bucket. DO NOT DELAY. 3. Use loader lock handles to raise lock pins on loader hitch plate. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 15: Check Equipment Clearances

    NOTE: If the loader is not supplied with Kubota’s 3rd Function valve, an optional Land Pride kit is available. See “Accessories” for correct kit number. Refer to Figure 1-1 on page 10...
  • Page 16 See “Long-Term Storage” on page 19 when parking the bucket for long periods or at the end of the season. 2. Park tractor on a flat level solid surface. 3. Shut tractor down according to “Tractor Shutdown Procedure” on page 9. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...
  • Page 17 Concrete can changes to controls and hydraulic hook-ups before break, hydraulic lines can burst, and/or hydraulic controls putting equipment into service. can be actuated even when power to hydraulics is off. 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...
  • Page 18 ROPS in the “locked up” position when appropriate. If ROPS is in the locked up position, fasten seat belt snugly and securely to help protect against serious injury or death from falling and machine overturn. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 19: Operating Tips

    8. Always use appropriate counter weight on the back of the tractor or 3-point when doing loader work. 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...
  • Page 20 6. Lift load a few inches to make sure you have good level and close the jaw if opened. control of the load. If load is not secure, release and recapture load in a more secure location. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...
  • Page 21 6. If material needs to be removed, tilt the bucket level while raising/lowering the loader arms and closing the jaw to capture accumulated material in the bucket. 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...
  • Page 22 It isn’t going to take you long to learn how to your Land Pride 4-in-1 Combination Bucket. use your new Land Pride 4-in-1 Combination Bucket, but we do recommend that you take a little time to practice See “Section 4: Specifications &...

  • Page 23: General Maintenance Information

    3. Repaint parts where paint is worn or scratched to Replace all worn, damaged, or missing bucket parts with prevent rust. Ask your Land Pride dealer for aerosol genuine Land Pride parts. Replace safety labels by touch-up paint. Paint is also available in touch-up obtaining new labels from your Land Pride dealer.

  • Page 24: Lubrication Points

    Legend spray lube grease lube oil lube lubrication is required 76930 Hours Jaw Pivot Pins 3- Zerks (One on each side and one in center) Type of Lubrication: Multi-purpose Grease Quantity = As Required CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 25: Section 4: Specifications & Capacities

    1 1/4" dia. pivot pins (greasable) Hydraulic cylinder 2 1/2" x 6" x 1 1/8" Rod Maximum hydraulic pressure 2500 psi (17237 kPa) 76884 47" (119 cm) 25 1/4" (64 cm) 27 3/4" (69 cm) 24 1/4" (62 cm) 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...

  • Page 26: Section 5: Features & Benefits

    BX 3rd function valve kit Adds a 3rd function capability to the loader. Provides convenient opening and closing of the (Accessory) 4-in-1 bucket. Single cylinder design Single cylinder allows for narrow, light-weight bucket design allowing for increased payload. CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 27: Section 6: Troubleshooting

    Re-clamp load once load is free from pile. Load is not centered in bucket. Center load on bucket. Traveling forward while going down an incline with a slope in excess of Back down steep inclines. 10 percent (5.7 degrees). 5/24/22 CB0546 4-in-1 Combination Bucket 381-208M...

  • Page 28: Section 7: Torque Values Chart

    Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. All locknuts or lubricated fasteners: Use 75% of torque value. (i.e. 1/2"-13 GR5 = 76 ft-lb; 75% of 76 or .75 x 76 = 57 ft-lb CB0546 4-in-1 Combination Bucket 381-208M 5/24/22...

  • Page 29: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
