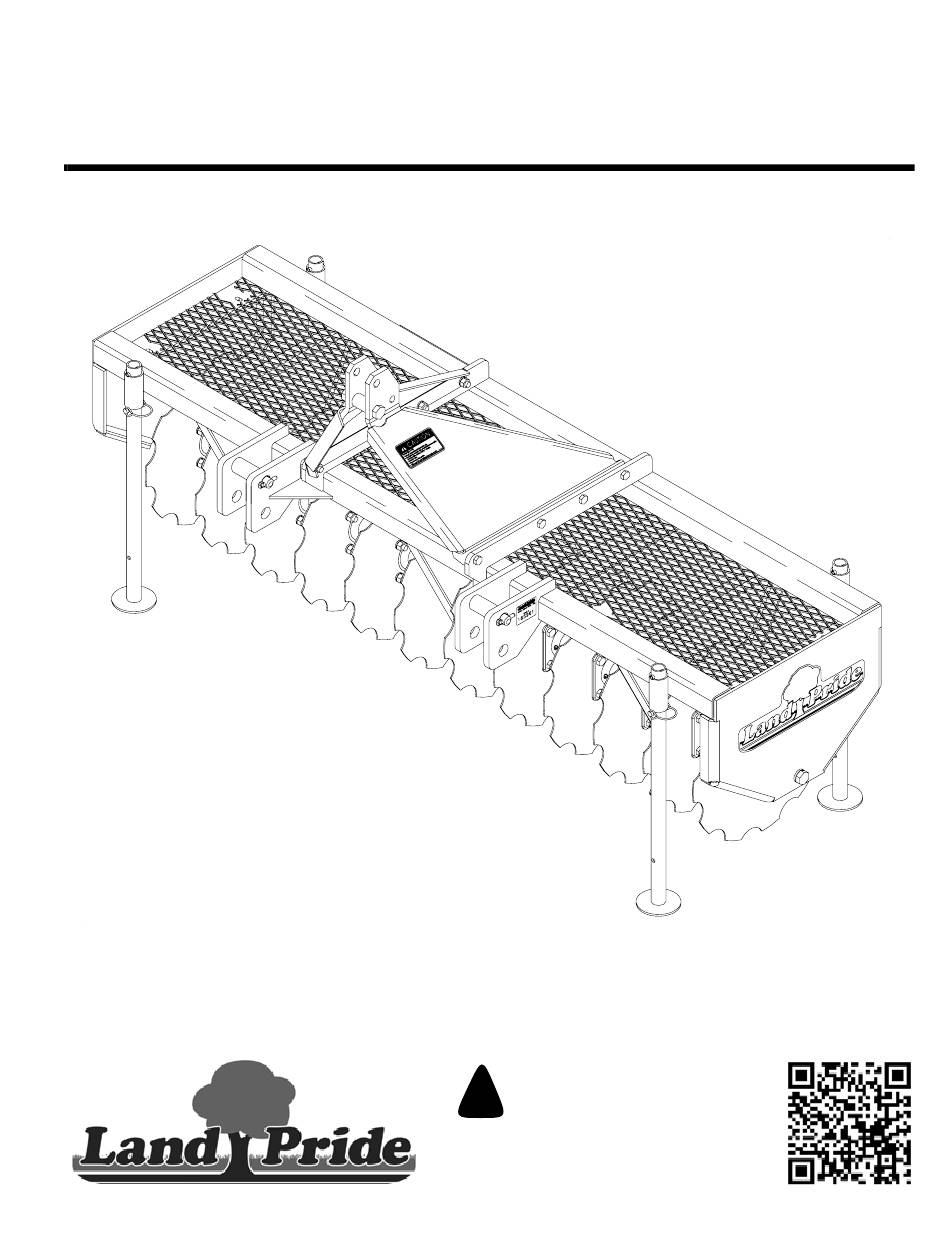

Straw Crimper
CR2572
19165
Table of Contents
Read the Operator's Manual entirely. When you
!
see this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Cover photo may show optional equipment
not supplied with standard unit.
© Copyright 2015
325-037M
Operator's Manual
Printed
12/09/15
Advertisement
Table of Contents
Related Manuals for Land Pride CR2572
Summary of Contents for Land Pride CR2572
- Page 1 Table of Contents Straw Crimper CR2572 19165 325-037M Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
-
Page 2: Machine Identification
Machine Identification Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new manual. If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were originally ordered, the weights and measurements are no longer accurate for your machine. - Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
-
Page 5: Safety At All Times
Land Pride products. Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. 12/09/15 CR2572 Straw Crimper 325-037M... - Page 6 ▲ Replace parts on this machine with ▲ Work in a clean dry area. rating equal to or greater than the genuine Land Pride parts only. Do gross weight of the towed ▲ Lower attached implement to the not alter this machine in a way machinery.
- Page 7 ▲ Be sure to ask how close you can serious injury or death from falling equipment. and machine overturn. work to the marks they positioned. ▲ Wear protective equipment such as a hard hat, safety shoes, safety glasses, and ear plugs. 12/09/15 CR2572 Straw Crimper 325-037M...
-
Page 8: Important Safety Information
Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com. -
Page 9: Using This Manual
Introduction Introduction The parts on your Straw Crimper have been specially Land Pride welcomes you to the growing family of new designed by Land Pride and should only be replaced with product owners. genuine Land Pride parts. Contact a Land Pride dealer if This Straw Crimper has been designed with care and customer service or repair parts are required. - Page 10 2. Insert bushing (#6) between upper hitches, install 3/4" x 4" long bolt (#7) with lock washer (#8) and nut (#9). 3. Tighten all hardware using torque requirements on page 18. 19167 Hitch Assembly Figure 1-1 CR2572 Straw Crimper 325-037M 12/09/15...
-
Page 11: Section 1: Assembly & Set-Up
2. Make sure vented caps (#1) and drain plugs (#3) are screwed on tight to the weight tanks. Refer to Figure 1-2: Additional weight may be added to the Crimper with weight tanks that can be filled with water. 19174 Water Tanks Option Figure 1-2 12/09/15 CR2572 Straw Crimper 325-037M... -
Page 12: Parking Stands
Level Ground Discs Must Rest Wire Retaining Pin On Level Ground Discs Supported 19173 Above Ground Parking Stand Un-hooked Position with added weights 19165 Figure 2-2 Parking Stand Un-hooked Position without added weights Figure 2-1 CR2572 Straw Crimper 325-037M 12/09/15... -
Page 13: Section 2: Adjustments
Table of Contents Section 2: Adjustments Working Position Refer to Figure 2-3: The four parking stands should be fully raised for working and while transporting. 19169 Parking Stands Shown in Working Position Figure 2-3 12/09/15 CR2572 Straw Crimper 325-037M... -
Page 14: Tractor Hook-Up
Crimper. implement while backing-up to implement. Do not operate hydraulic 3-Point lift controls while someone is directly behind the tractor or near the implement. 19168 Tractor Hook-Up Figure 3-1 CR2572 Straw Crimper 325-037M 12/09/15... -
Page 15: Section 3: Operating Instructions
Operating Safety Refer to Figure 3-1 on page 10: DANGER Land Pride’s Model QH15 Quick hitch fits the Straw Crimper’s Cat. I hitch. If using a compact tractor that Operator to wear seat belt at all times while operating cannot lift the Crimper high enough for transport, move implement. - Page 16 3. Repaint parts where paint is worn or scratched to With very little practice you should become very prevent rust. Ask your Land Pride dealer for aerosol proficient and effective with your Land Pride CR2572 touch-up paint. Paint is also available in touch-up Straw Crimper.
-
Page 17: Section 4: Options
Do not exceed 600 lbs. of additional weight. For additional information, see “Optional Weight Tanks” on page 7 and “Specifications and Capacities” on page 15. See your nearest Land Pride dealer to purchase the tanks. Land Pride Weight Tanks Part No. Part Description... -
Page 18: Section 5: Maintenance & Lubrication
Replace any worn, damaged, or illegible safety labels by obtaining new labels from your Land Pride dealer. CAUTION Do not alter Land Pride equipment or replace parts with other brands. Doing so can cause equipment to perform improperly and may lead to breakage that can cause bodily injury. -
Page 19: Section 6: Specifications & Capacities
Frame Construction Tubing 2 1/2" x 2 1/2" x 3/16" Hitch Cat. 1 Quick Hitch Fits Land Pride’s Model QH15 Quick Hitch Support Stands Support stands in all four corners Water Tank Capacity (gallons per tank) 36 gallons per tank Full Water Tank Weight (2-tanks) 600 lbs. -
Page 20: Section 7: Features & Benefits
CR2572 Model Features Benefits Cat. 1 Hitch Fits Land Pride Quick Hitch, and stout enough to work with any Cat. 1 tractor. 72" width Mostly used in wide open spaces, 72" covers a nice width. Plate steel ‘A’ frame Plate steel offers greater strength from natural force applied downward from tractor top link. -
Page 21: Section 8: Troubleshooting
Make sure the 3-Point has been lowered to the ground. Extra weight may need to be added to the frame (refer to adding weight in operating instructions). Do not allow Riders for extra weight! There may not be enough moisture in the ground. 12/09/15 CR2572 Straw Crimper 325-037M... -
Page 22: Section 9: Torque Values Chart
= nominal thread diameter in millimeters x thread pitch 1-1/2" - 12 1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. CR2572 Straw Crimper 325-037M 12/09/15... -
Page 23: Warranty
This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship. - Page 24 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
