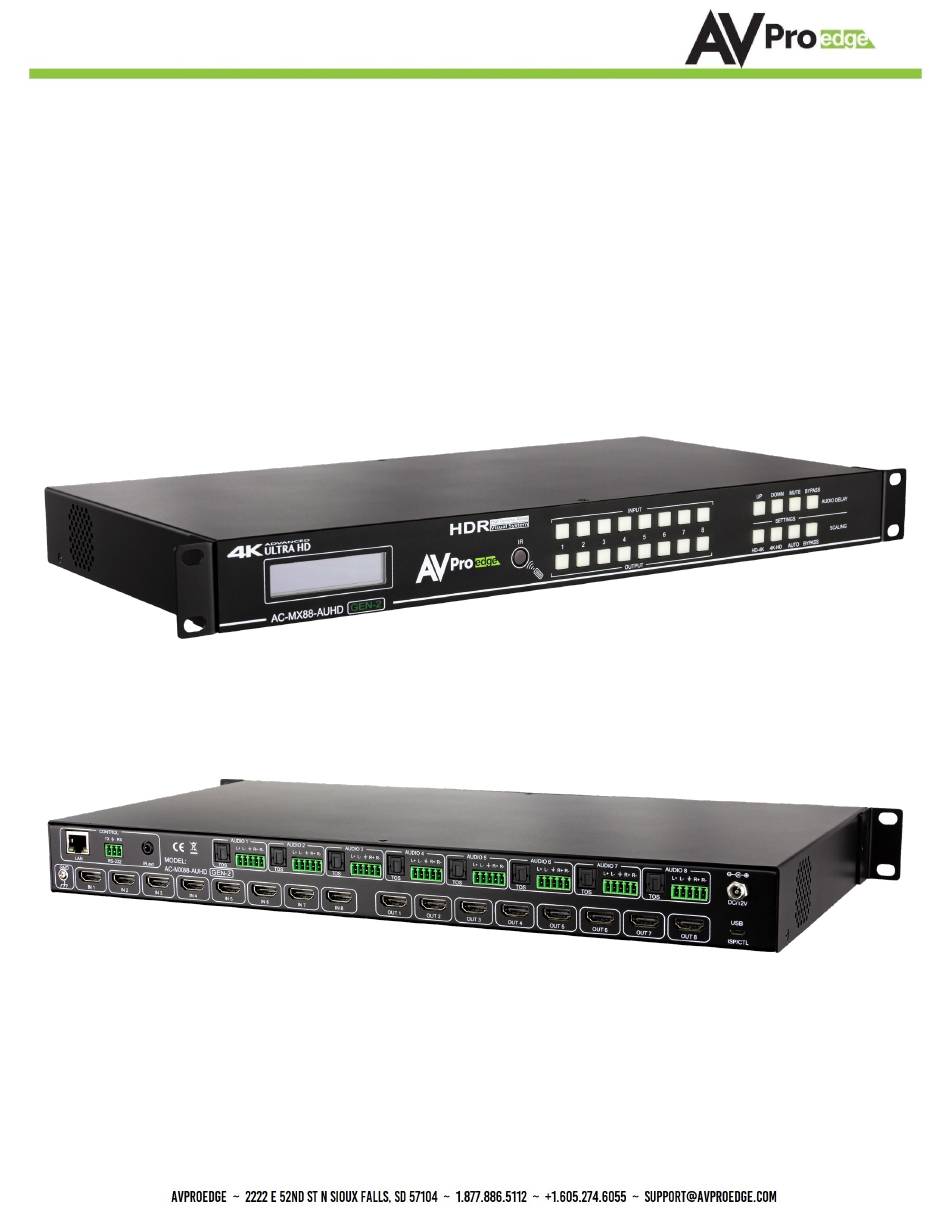

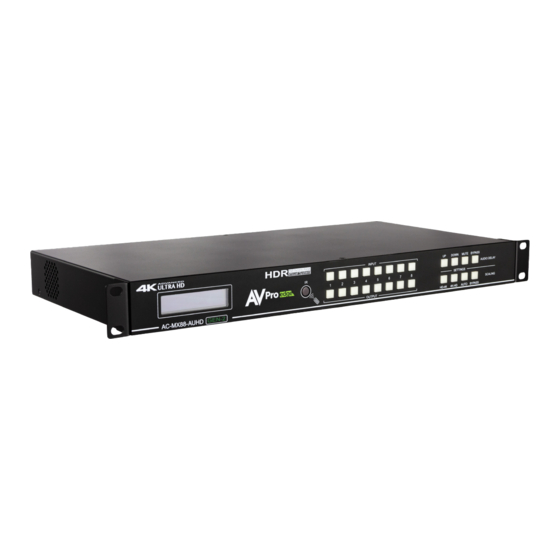

- Page 1 User Manual 18 Gbps True 4K60 4:4:4 8 x8 HDMI Matrix w/ Dual Audio De- Embedding, Scaling & Audio Delay. AC-MX88-AUHD-GEN2...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 F E AT U R E S �... - Page 3 W E B I N T E R FA C E : E D I D M A N A G E � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2 2 W E B I N T E R FA C E : S Y S T E M S E T T I N G S �...
-
Page 4: Introduction
Introduction The AC-MX88-AUHD-GEN2 is a true 8x8 HDMI matrix switch� Supporting HDMI 2�0(a/b), HDCP 2�2, up to 4K video resolution, and up to 18 Gbps bandwidth� This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ��� ) to be shown on any of the connected displays� This ma- trix equalizes and amplifies the output to ensure the HDMI signal can be transmitted through long HDMI cables without loss of quality�... -
Page 5: Specifications
Specifications... -
Page 6: Device Overview
Device Overview · Definition - Matrix switches provide the ability to route any input to any output or to multiple outputs at any time� Depending on the model, a matrix switch can route HD, UHD or AUHD content in this manner�... -
Page 8: Front Panel Button Functions
Front Panel Button Functions... -
Page 9: Front Panel Control: Switching
3� Select the desired INPUT� Front Panel Control: Scaling The AC-MX88-AUHD-GEN2 has scalers built into every output� The scalers are set on the OUTPUT side of the switch and each can be set individually� There are four options available · HD-4K (Scales 1080P to 2160P) ·... -
Page 10: Front Panel Control: Audio Binding
Front Panel Control: Matrix Audio Switching Once in “Matrix” mode for audio, the extracted audio routing on the AC-MX88-AUHD-GEN2 can be con- trolled from the front panel: 1� Press and hold the BYPASS button from the audio settings (top right of machine) for 3 seconds� This will enter the audio binding menu�... -
Page 11: F R O N T Pa N E L C O N T R O L : Au D I O D E L
Front Panel Control: Audio Delay The AC-MX88-AUHD-GEN2 has an Audio Delay feature built-in� Audio Delay is set on the extracted audio OUTPUT (Digital and Analog) of the switch, and each can have seperate settings� The Audio Delay has 4 controls: ·... -
Page 12: Au D I O O U T P U T L O G I C A N D C A B L E P R E
Audio Output Logic and Cable Prep: You can extract audio from toslink or balance 2CH Audio� Audio outputs are an un-decoded output� This means that what goes in, is what goes out� 2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems�... - Page 13 EDID Management: This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID memories are independent to each input and can be set differently. The user defined EDID can be uploaded using the free PC Control software or RS-232� In addition, you can choose to read the EDID from the de- sired output and the captured EDID will automatically store and overwrite the EDID in “USER EDID 1”...
-
Page 14: D I S P L Ay I P I N F O R M At I O
Display IP Information: In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simul- taneously� This screen will cycle through the settings (Host IP, Router IP, Net Mask, TCP Port/DCHP)� NOTE: This screen always starts with the current IP address of the matrix: In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons simul- taneously�... -
Page 15: W E B I N T E R Fa C E : S W I T C H I N
4� Input the HOST IP Address into any web browser connected to the same network� 5� Setting a Static IP: · Once connected you can use the web interface, System Settings tab to set a static IP address� · A static IP can also be set by using the RS-232 software or a direct command�... -
Page 16: W E B I N T E R Fa C E : L I N K I N F
Web Interface: Link Info Use this page to view the INPUT Video signal information (resolution/timing/colorspace)� · Each in put will display the Resolution, timing, and colorspace� · If no source is detected, the INPUT will display NO SIGNAL�... -
Page 17: W E B I N T E R Fa C E : V I D E O S E T T I N G
Web Interface: Video Settings Use this page to change the OUTPUT scaler settings, image enhancement, test pattern generator, and HDMI Output Stream Video Scaler Mode: · BP = Bypass - Scaler is disabled (Default) · 2K = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format�... -
Page 18: I M A G E E N H A N C E M E N
Image Enhancement: The Image Enhancement feature will add extra sharpness to edges in the image when upscaling. This effect may be desirable for presentations in corporate or classroom environments� NOTE: Image Enhancement only works when upscaling from 2k to 4k� ·... -
Page 19: Au D I O S E T T I N G
Audio Settings: Use this page to adjust the Extracted Audio Delay, and turn the extracted audio ports ON and OFF� EX-Audio Delay: This setting allows the you to change the audio delay to overcome lip-sync issues when using audio separate from HDMI�... -
Page 20: W E B I N T E R Fa C E : Au D I O M At R I
Web Interface: Audio Matrix This allows you to route the audio in a matrix fashion for the extracted audio ports� *NOTE: The Audio Matrix Function only works if “MATRIX” is selected on the right (See next explanation)� Extracted Audio: Audio Matrix This section allows you to change how the extracted audio works�... -
Page 21: W E B I N T E R Fa C E : I N P U T S E T T I N G
Web Interface: Input Settings This allows you to turn the INPUT HDMI ports ON and Off. - Page 22 Web Interface: EDID Manage This tab allows you to manage the EDIDs of each individual INPUT� Using the built-in EDID manager, a multitude of EDID’s can be set for each input, and each input can be assigned a different EDID. This should be used to optimize sources or to manage infrastructure. 0: 1080P_2CH(PCM) 11: 4K60Hz(Y420)_3D_8CH 22: 4K30Hz_3D_6CH_HDR...
-
Page 23: W E B I N T E R Fa C E : S Y S T E M S E T T I N G
Web Interface: System Settings This tab allows you to manage the IP Settings, and the Port Alias names� IP Settings: Port Alias Settings: · Static IP Rename inputs and outputs for easy management� · Subnet Mask Each custom name is limited to eight (8) characters� ·... -
Page 24: I R C O N T R O
IR Control: For IR Control there is an IR Window on the front face of the device� The supplied IR Extension Cable can also provide a different receiver position. If needed, plug the IR Extension Cable into the IR Extension Sock- et on the back of the matrix and place the receiver in a more convenient location�... -
Page 25: R S - 2 3 2 A N D T C P / I P C O M M A N D
RS-232 and TCP/IP Commands: The AC-MX88-44-AUHD-GEN2 can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configura- tions can only be done using these commands� We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine�... -
Page 26: R S - 2 3 2 A N D T C P / I P C O M M A N D S : C O N T I N U E
RS-232 and TCP/IP Commands: Continued The Matrix can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands� We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine�... -
Page 27: R S - 2 3 2 A N D T C P / I P C O M M A N D L I S
RS-232 and TCP/IP Command List:... -
Page 28: R S - 2 3 2 A N D T C P / I P C O M M A N D L I S T : C O N T I N U E
RS-232 and TCP/IP Command List: Continued... -
Page 29: P C S O F T Wa R E : S W I T C H I N
PC Software: Switching... -
Page 30: P C S O F T Wa R E : E D I D M A N A G E M E N
PC Software: EDID Management... -
Page 31: P C S O F T Wa R E : I P S E T T I N G
PC Software: IP Settings... -
Page 32: P C S O F T Wa R E : V I D E O / Au D I
PC Software: Video/Audio Video/Audio: Scaler Settings · BP = Bypass - Scaler will be disabled (Default)� · 2K = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format� ·... -
Page 33: P C S O F T Wa R E : V I D E O / Au D I O C O N T I N U E
PC Software: Video/Audio Continued Audio Mx -- Set audio binding (FROM INPUT, FROM OUTPUT, MATRIX) and chose audio route when in MATRIX Mode� PG On/Off -- Enables and disables the internal 1080P test pattern per output� De-embedded audio delay control -- Allows user to set delay for each output, available options are: De-embedded audio mute -- This feature allows the user to mute or enable de-embed- ded audio ports�... -
Page 34: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions� · Use the power supplies provided� If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 35: S U P P O R
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indi- cated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) -
Page 36: T R O U B L E S H O O T I N
Troubleshooting: · Verify Power - The LCD screen on the front of the matrix should be lit up when power is applied� Check that the power supply is connected to the matrix and powered · Verify Connections - Check that all cables are properly connected ·... - Page 39 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge�com...
