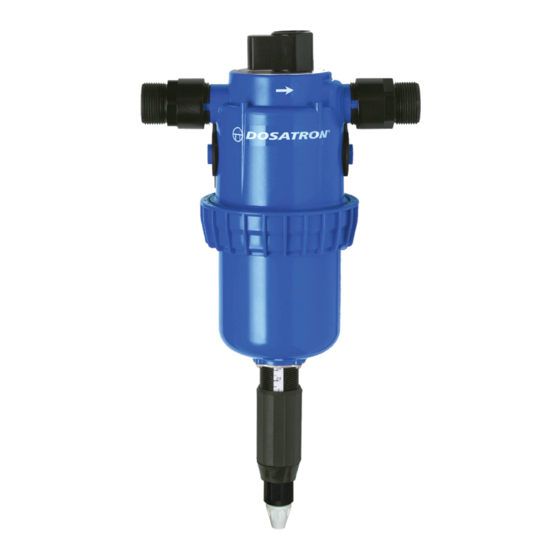

Changing the Bypass Instructions:
Remove the black cap and
1.
set screw from the top of the
bypass assembly as shown.
On the outlet side of the unit,
4.
unscrew the internal screw
securing the bypass retainer.
INTERNAL
2.
Remove the bypass knob.
The exposed axle should be
in this position. This will stay
inside the unit body for now.
SET
SCREW
5.
Remove the bypass retainer.
SCREW
D45 Series Bypass
Part # MP150
3.
Below is a reference of the
proper position of the internal
components before removal.
6.
Remove the other internal
components.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dosatron D45 Series
Summary of Contents for dosatron D45 Series

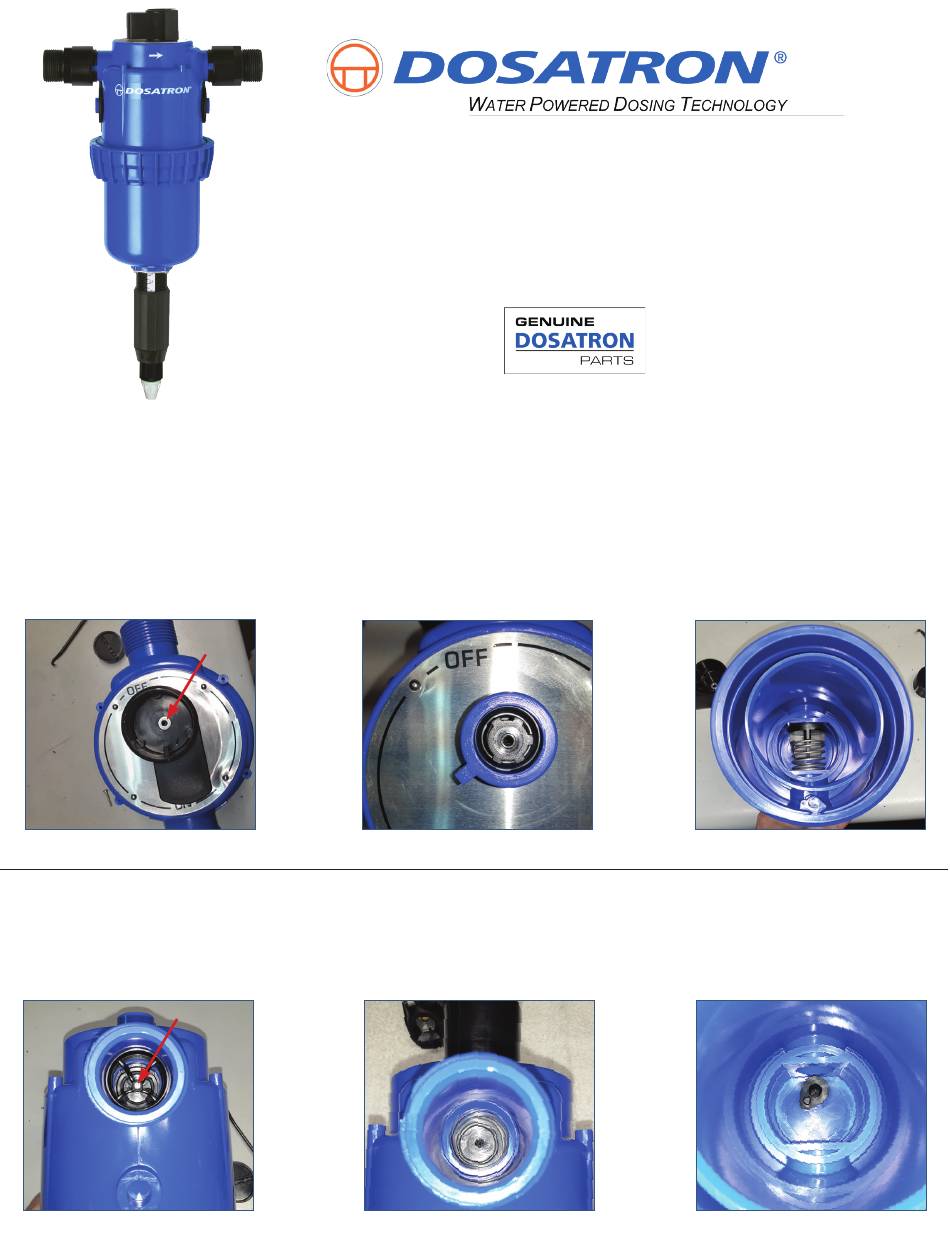

- Page 1 D45 Series Bypass Part # MP150 Changing the Bypass Instructions: Remove the black cap and Remove the bypass knob. Below is a reference of the set screw from the top of the The exposed axle should be proper position of the internal bypass assembly as shown.
