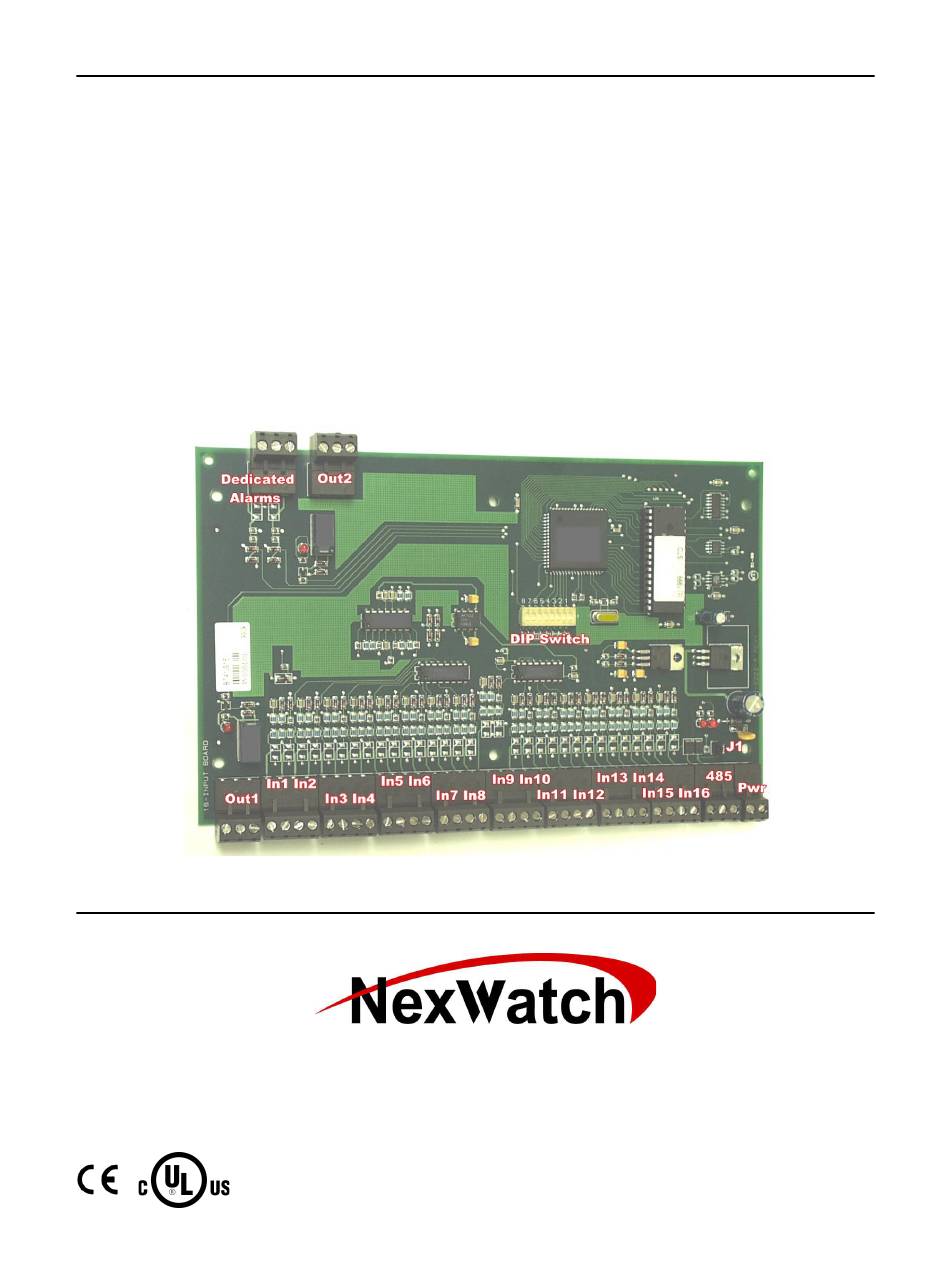

- Page 1 PW-5000 Input Module Installation Manual Part Number: PW5KxIN TD1116 rev1101...
-
Page 3: Table Of Contents
PW-5000 Input Module Installation Guide Contents Warnings and Cautions ..................4 Disclaimer ......................6 Product Liability; Mutual Indemnification..............6 Unpacking Procedure ................... 6 Shipping Instructions .................... 7 Limited Warranty ....................7 Confidentiality ..................... 8 Description ......................9 Set Up ........................ 9 LED Operation .................... -
Page 4: Warnings And Cautions
Always make certain that any required approvals are obtained in writing. DO NOT ACCEPT VERBAL APPROVALS, AS THEY ARE NOT VALID. NexWatch never recommends using the PW-3000 or PW-5000 or related products for use as a primary warning or monitoring system. Primary warning or monitoring systems should always meet local fire and safety code requirements. - Page 5 United States protect all information in this document or in the software product itself. NOTICE Any use of this product is subject to the terms and acceptance of the NexWatch, Inc. Software Agreement. Please request a copy from NexWatch, Inc., and review the agree- ment carefully.
-
Page 6: Disclaimer
Customer shall immediately notify NexWatch in writing of all such claims. NexWatch shall defend or settle such claims and shall indemnify and hold Customer harmless for any costs or damages including reasonable attorneys’... -
Page 7: Shipping Instructions
All Products sold or licensed by NexWatch include a warranty registration card which must be completed and returned to NexWatch by or on behalf of the end user in order for NexWatch to provide warranty service, repair, credit or exchange. All warranty work shall... -
Page 8: Confidentiality
Confidentiality All software, drawings, diagrams, specifications, catalogs, literature, manuals and other materials furnished by NexWatch relating to the design, use and service of the Products shall remain confidential and shall constitute proprietary rights of NexWatch and Customer agrees to treat such information as confidential. Customer shall acquire no rights in the design of the Products or the related materials except to use such information solely for the purpose of and only during the time it sells the Products. -
Page 9: Description
PW-5000 Input Module Installation Guide Description The Input Board provides connections for 16 supervised inputs and 2 relay outputs. This board can be rack mounted, in which case, only one edge is accessible for wiring. Mounting the board flat increases the amount of available I/O slightly but also significantly decreases the number of boards that can be mounted in one enclosure. - Page 10 Installation Guide PW-5000 Input Module Dip Switch Settings: * = Default TD1116 rev1101...
-
Page 11: Led Operation
PW-5000 Input Module Installation Guide LED Operation The Input board uses 2 on-board LEDs to provide status information during its power-up sequence and normal operation. n i t n i t n i t i t i i l a... -
Page 12: Alarm Contact Wiring
Installation Guide PW-5000 Input Module Orange/white stripe White/orange stripe — Common Note: For N-485 Communication Connections, twist the blue pair together and use as the common; use the orange pair as your data pair, observing polarity. Connect the external drain shield to the appropriate earth ground on one end. -
Page 13: Mounting Options
Use sufficiently large gauge of wires for the load current so as to avoid voltage loss. Mounting Options This board can be mounted on-edge in the rack-mount enclosure provided by NexWatch or it can be mounted flat against any surface using standoffs under the mounting holes provided in each of the four corners of this board. -
Page 14: Specifications
Installation Guide PW-5000 Input Module Specifications The Input board is for use in low voltage, class 2 circuits only. Primary power: 12 VDC ±10% 250 mA Relay contacts: Relays 1 & 2 outputs, Form-C, 2A @ 28 VDC, resistive Inputs: 16 supervised, End of Line resistors 1K ohm standard ±... -
Page 15: Wiring Diagram For Connectors 1 Through 12
PW-5000 Input Module Installation Guide Wiring Diagram for Connectors 1 through 12 Note: For N-485 Communication Connections, twist the blue pair together and use as the common; use the orange pair as your data pair, observing polarity. Connect the external drain shield to the appropriate earth ground on one end. -
Page 16: Wiring Diagram For Connectors 10 Through 13
Installation Guide PW-5000 Input Module Wiring Diagram for Connectors 10 through 13 Note: For N-485 Communication Connections, twist the blue pair together and use as the common; use the orange pair as your data pair, observing polarity. Connect the external drain shield to the appropriate earth ground on one end. - Page 18 Your Access to the Future 47102 Mission Falls Court • Fremont, CA 94539 Tel (510) 360-7800 • Fax (510) 360-7820 www.nexwatch.com...
