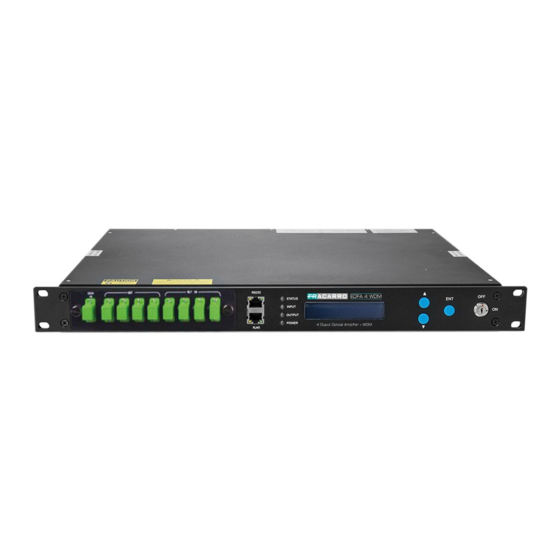

Fracarro EDFA 4 WDM User Manual

Contents
Product Features
Installation
Set and Operation
Main Parameters
Diagram
Front Panel
Rear Panel
Operation Flow Chart
Web Server
Notes
Solution to ordinary problems
Warranty Terms
1. Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
2. Maintenance function of one-time downward attenuation of 6dBm by buttons in the front
panel or web SNMP, to facilitate the optical fiber hot-plug operation without turn off the device
3. Multi- ports output, can built in 1310/1490/1550WDM.
4. Standard RJ 45 port for remote control, we can provide output contract and web manager for
choice, and also plug-in SNMP hardware can be reserved for update.
5. With laser key to turn on/off the laser.
6. With RF test function.
7. Adopts JDSU or Oclaro Pump laser
8. Led displays the working condition of the machine
9. Dual power hot plug power supply for choice, 90V 250V AC or -48V DC
Before installation
1. Please be sure there is no visible damage outside the machine.
2. Please check the spare parts is complete or not, if not complete, please contact the seller.
Installation
1. Please keep at least 4.5cm (1.75inches) space for cooling if the machine is installed with
other machines.
287554 EDFA 4 WDM, 287553 EDFA 8 WDM
Multi-port EYFA Amplifier user manual
pages
3
3
4 to 12
4
4
5 to 6
6
6 to 12
12 to 18
19
19
20
Product Features
Installation
