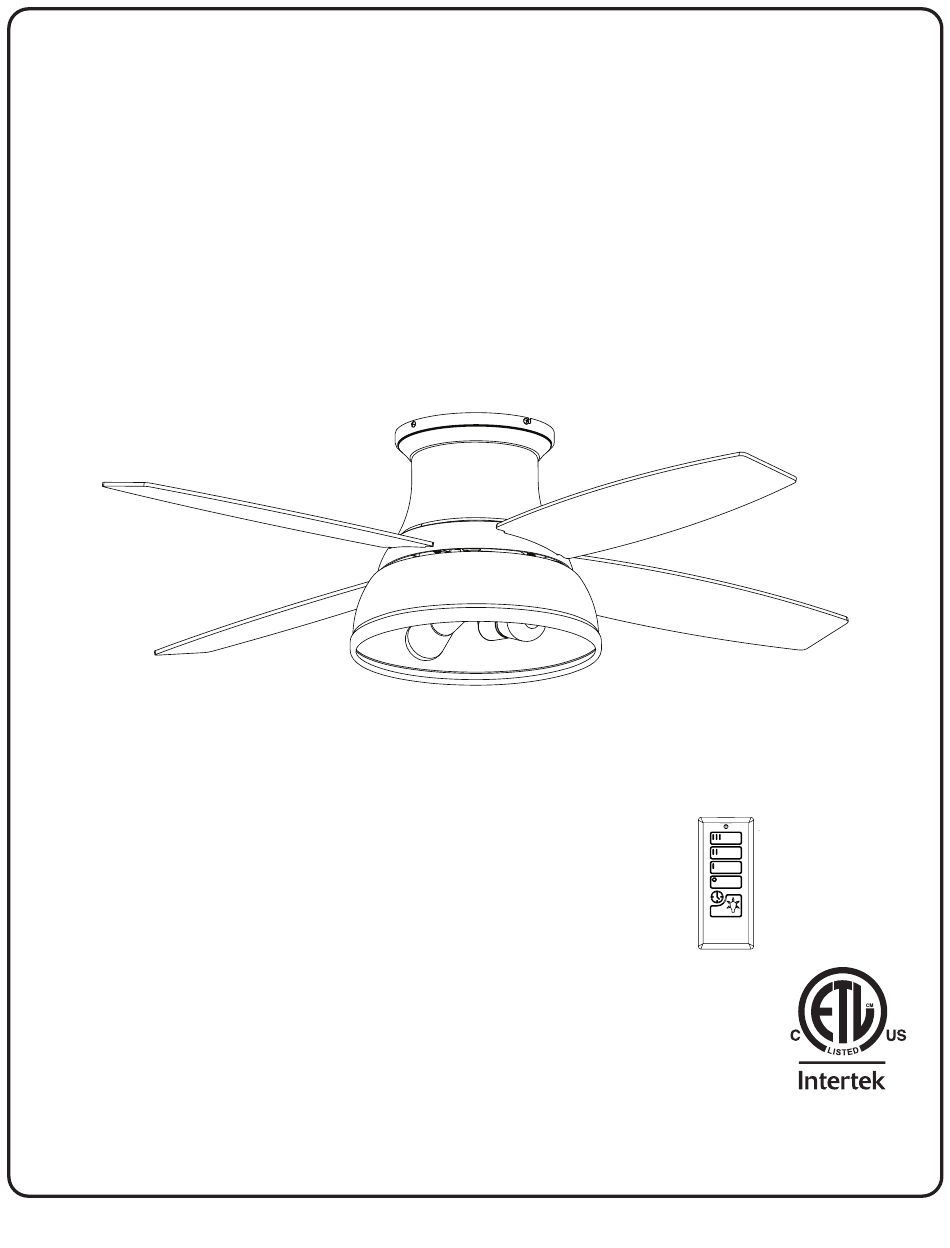

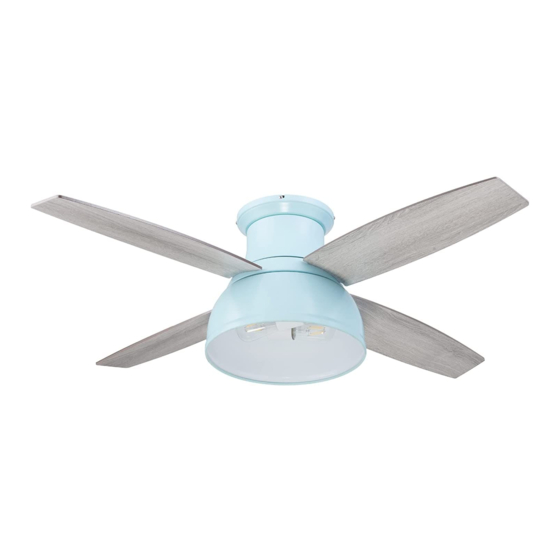

- Page 1 52” CEILING FAN Owner’s Manual Model #51672, 51673, 51674, 51675 To obtain service, please contact the Service Department: , 8 a.m. - 5 p.m. Central, Monday - Friday. 1-877-706-3267 9706 • 040521...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Mounting Bracket 8. Light Kit 2. Mounting Bracket Screw 9. E26-base LED Bulb (x2) (x4) 10. Blade (x4) 3. Motor Assembly 11. Hardware Kit 4. -
Page 3: Location For Installation
DIMENSION REFERENCE A. 12.91 in. B.8.16 in. C. 8.98 in. LOCATION FOR INSTALLATION Ceiling 30 in. Min Wall 7 ft. Min Floor When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction and at least 7 feet above the floor. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Loosen all four mounting bracket screws, then Mounting completely remove two mounting bracket screws from Bracket...
- Page 7 ASSEMBLY INSTRUCTIONS Braided Cable SECONDARY HANGING SYSTEM For installation in the United States: Building codes Brace in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to Outlet Box Step 8.
- Page 8 ASSEMBLY INSTRUCTIONS Mounting Bracket Screw 9. Slide the top of the motor assembly over the mounting bracket, aligning the slotted holes in the top of the motor assembly with the pre-loosened mounting bracket screws in the mounting bracket. Twist the motor assembly clockwise to lock.
- Page 9 ASSEMBLY INSTRUCTIONS 13. Install the E26-base LED bulbs into the sockets of the light kit. Bulb Important: Make sure you allow the bulbs and light kit to cool before you replace the bulbs. Light Kit Front Back 14. Remove the battery cover from the back of the remote found in the remote pack.
- Page 10 OPERATING INSTRUCTIONS 1. To operate the fan using the remote from remote pack, LED Indicator press and release the following buttons: High Speed III - High speed Medium Speed II - Medium speed Low Speed I - Low speed Fan Off Fan Off - Turns power off to fan.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty
To obtain service, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. Model Name: 52” Ceiling Fan Model No: 51672 - Light Green 51673 - Dark Blue 51674 - Pink 51675 - Matte Black Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
