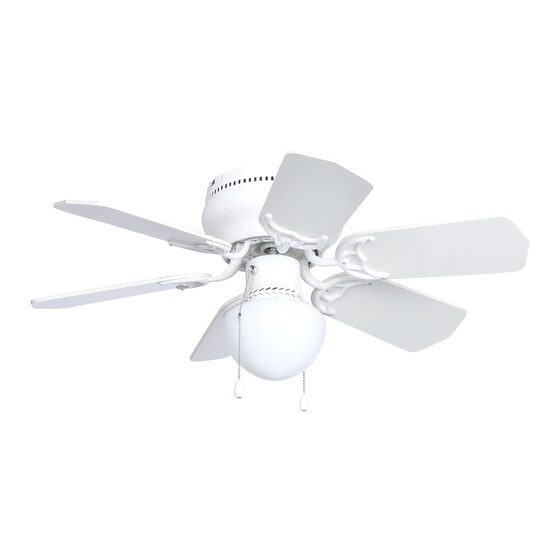

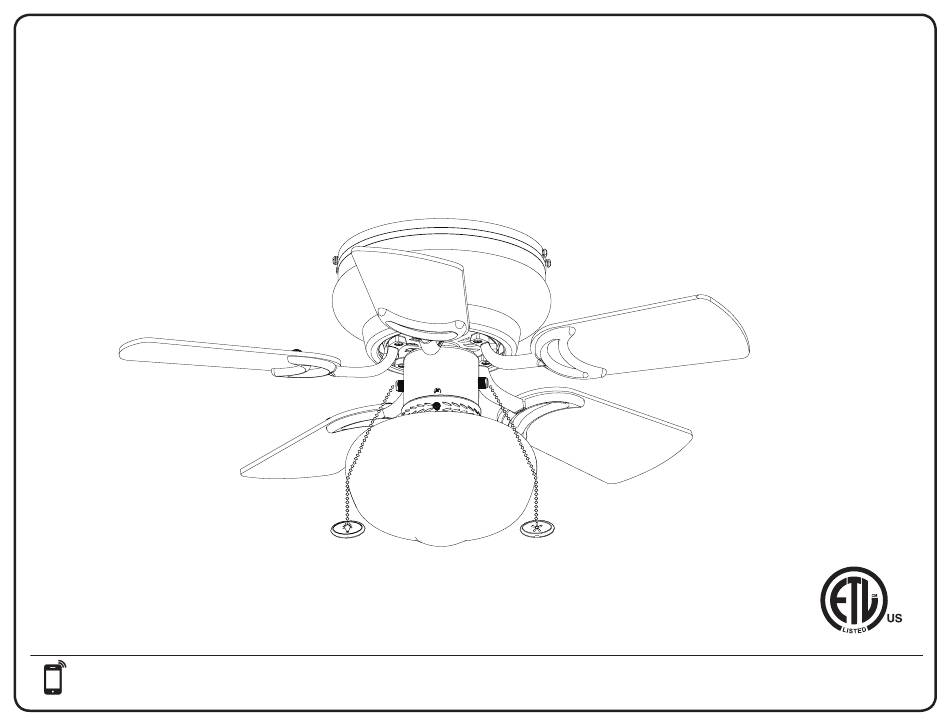

- Page 1 28” HUGGER CEILING FAN MODEL # 41530 Questions, problems or missing parts? Before returning this item to your retailer, call our customer service department at 1-877-706-3267, Monday - Thursday, 8am - 6pm, Friday, 8am - 5pm EST. 9312 • 013118...
-
Page 2: Package Contents
PACKAGE CONTENTS HARDWARE CONTENTS Mounting Bracket Bracket Screw (x 2) Blade Screw (x 15) Blade (x 5) Motor Housing Blade Washer (x 15) Bracket Screw zp Motor Blade Arm (x 5) Motor Screw (x 10) Switch Housing Wire Connector (x 3) Light Kit Thumbscrew Blade Balancing Kit... -
Page 3: Table Of Contents
TABLE OF CONTENTS Package Contents ..................... 2 Hardware Contents . - Page 4 PREPARATION 30 in. min. 7 ft. min. 1. Turn off power. 2. Choose suitable location. Turn off the power to the fan at the breaker Ensure the blades will be at least 30 inches box and the wall switch. from any obstructions and the blades will be at least 7 feet above the floor.
-
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Mounting Bracket Bracket Screw Bracket Mounting Lower Screw Bracket Bracket 1. Install the mounting bracket. 2. Install lower bracket. 3. Secure lower bracket. Secure the mounting bracket to the outlet Note: Remove the wire restraint from the Secure the lower bracket to the mounting box (not included) using the two mounting wire on top of the lower bracket. - Page 6 ASSEMBLY INSTRUCTIONS Black (live) White (neutral) Bare/Green (ground) Wire Connector Warning: Do NOT use a full-range dimmer to control the fan speed. 4. Connect wiring. Connect supply and fan wires with wire connectors according to the diagram and these steps: •...
- Page 7 ASSEMBLY INSTRUCTIONS Motor Motor Housing Housing Screw Screw Blade Screw Blade Washer Blade Arm 5. Install motor housing. 6. Secure motor housing. 7. Attach blades to blade arms. Temporarily lift the motor housing to the Slide the motor housing over the motor, Partially insert three blade screws along with upper mounting bracket to determine which aligning the slotted holes in the motor...
- Page 8 ASSEMBLY INSTRUCTIONS Thumbscrew Bulb Motor Screw Glass Globe Pull Chain Extension 8. Install blade arms. 9. Install bulb and glass globe. 10. Attach the pull chain extension to the pull chain. Remove the 10 preassembled motor screws Install the E26-base LED bulb into the from the underside of the motor.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Reverse Switch Reverse Switch Light Pull Chain Fan Pull Chain Pull Chain Operation Reverse Switch Operation The fan pull chain has four positions to Using a ceiling fan will allow you to raise your control fan speed. One pull is HIGH, two is thermostat setting in summer and lower your MEDIUM, three is LOW and four turns the thermostat setting in winter without feeling a... -
Page 10: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CORRECTIVE ACTION The fan does not move. 1. Firmly push the reverse switch completely up or down. The fan will not move with the switch in the middle position. 2. Make sure the wall switch is turned on. 3. -
Page 12: Warranty
LIFETIME LIMITED WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser.
